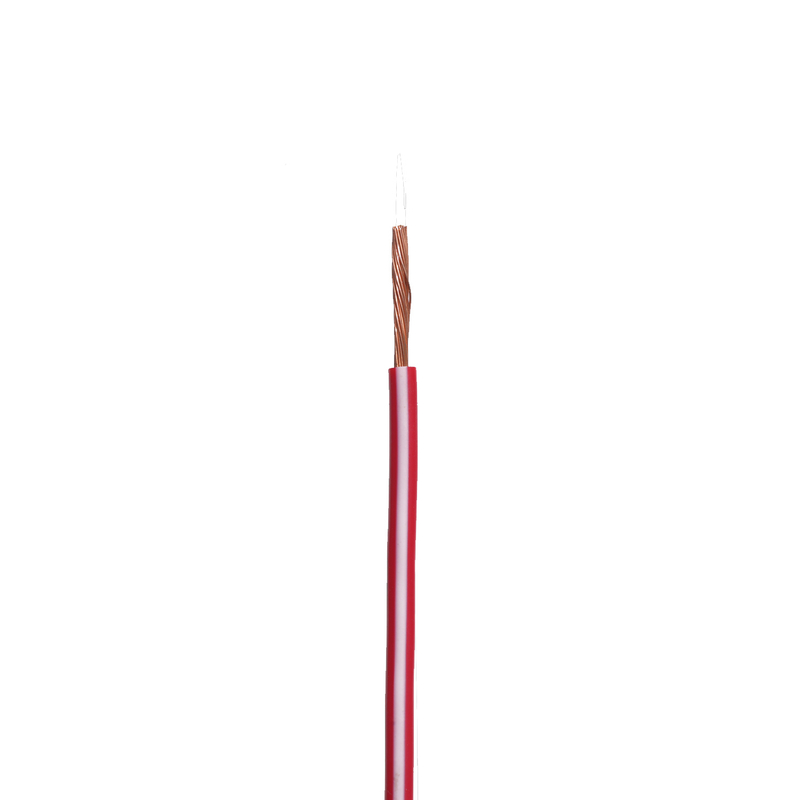

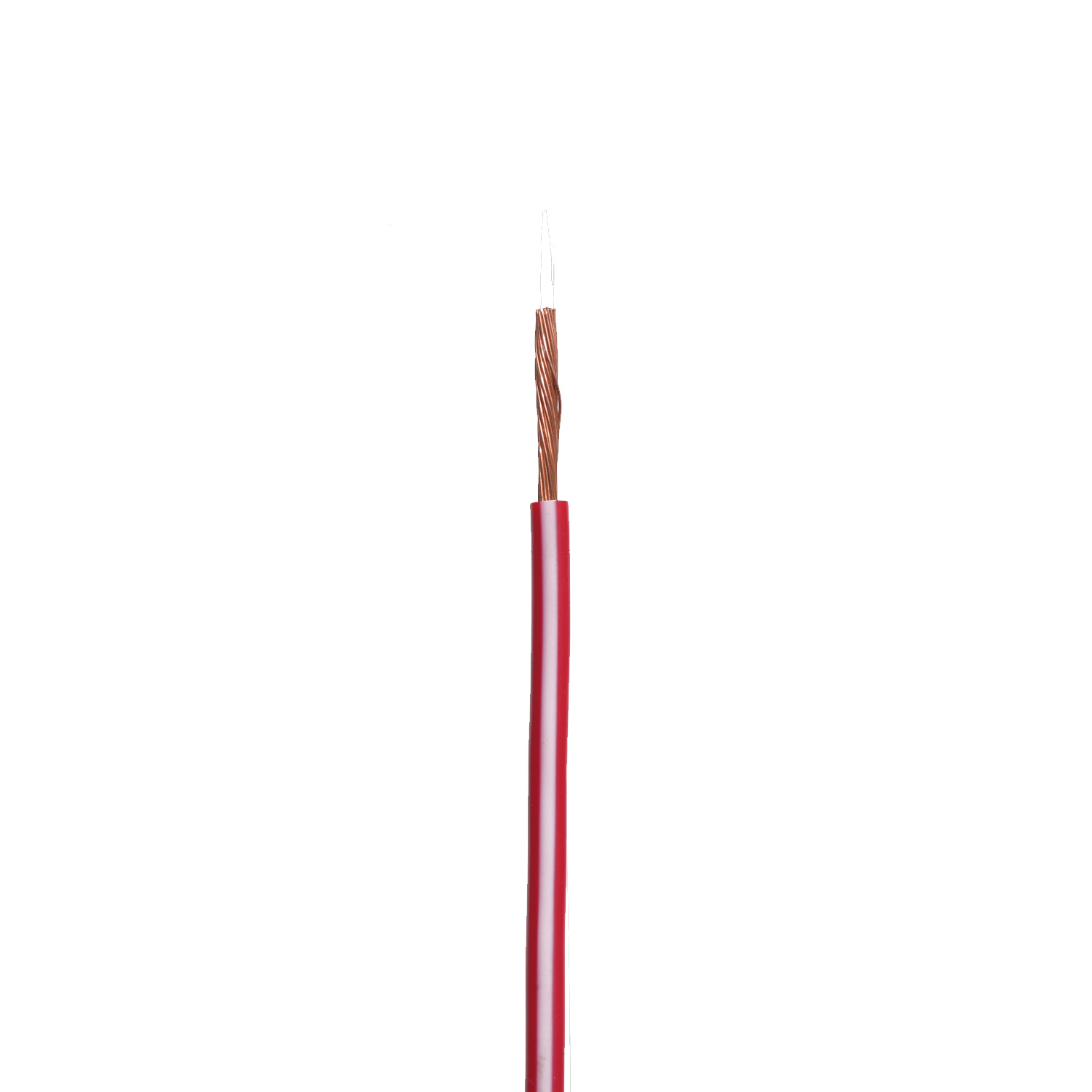

AVSS/CAVS Type (thin-Wall II ) Low-Voltage Automotive Cable

Nominal Setion
mm²

Condutor structure
No./mm

Calculated cross section
mm²

Approximate diameter
mm

Max. value
mm

Min. value
(mm)

Nominal
O.D.

Max
O.D.

0.3

7/0.26

0.3716

0.8

0.30

0.24

1.4

1.5

50.20

7/round compact conductor

0.3716

0.7

0.35

0.28

1.4

1.5

50.20

0.5

7/0.32

0.5629

1.0

0.30

0.24

1.6

1.7

32.70

7/round compact conductor

0.5629

0.9

0.35

0.28

1.6

1.7

32.70

0.855

19/0.24

0.8596

1.2

0.30

0.24

1.8

1.9

21.70

7/0.40

0.8796

1.1

0.30

0.24

1.8

1.9

20.80

7/round compact conductor

0.8796

1.1

0.35

0.28

1.8

1.9

20.80

11/round compact conductor

0.8846

1.1

0.35

0.28

1.8

1.9

20.80

1.25

19/0.29

1.2550

1.5

0.30

0.24

2.1

2.2

14.90

16/round compact conductor

1.2870

1.4

0.35

0.28

2.1

2.2

14.30

2

19/0.37

2.0430

1.9

0.40

0.32

2.7

2.8

9.00

0.3f

15/0.18

0.3821

0.8

0.30

0.24

1.4

1.5

48.80

0.5f

20/0.18

0.5369

1.0

0.30

0.24

1.6

1.7

34.60

0.75f

30/0.18

0.7895

1.2

0.30

0.24

1.8

1.9

23.60

1.25f

50/0.18

1.2820

1.5

0.30

0.24

2.1

2.2

14.60

2f

37/0.26

1.9640

1.8

0.40

0.32

2.6

27.0

9.50
