| Quantity: | |
|---|---|
Technical Data
Nominal Voltage: 60V DC , 25V AC
Temperature Range: AEX - 125ºC, AVX - 105ºC
Testing Voltage: 1000V

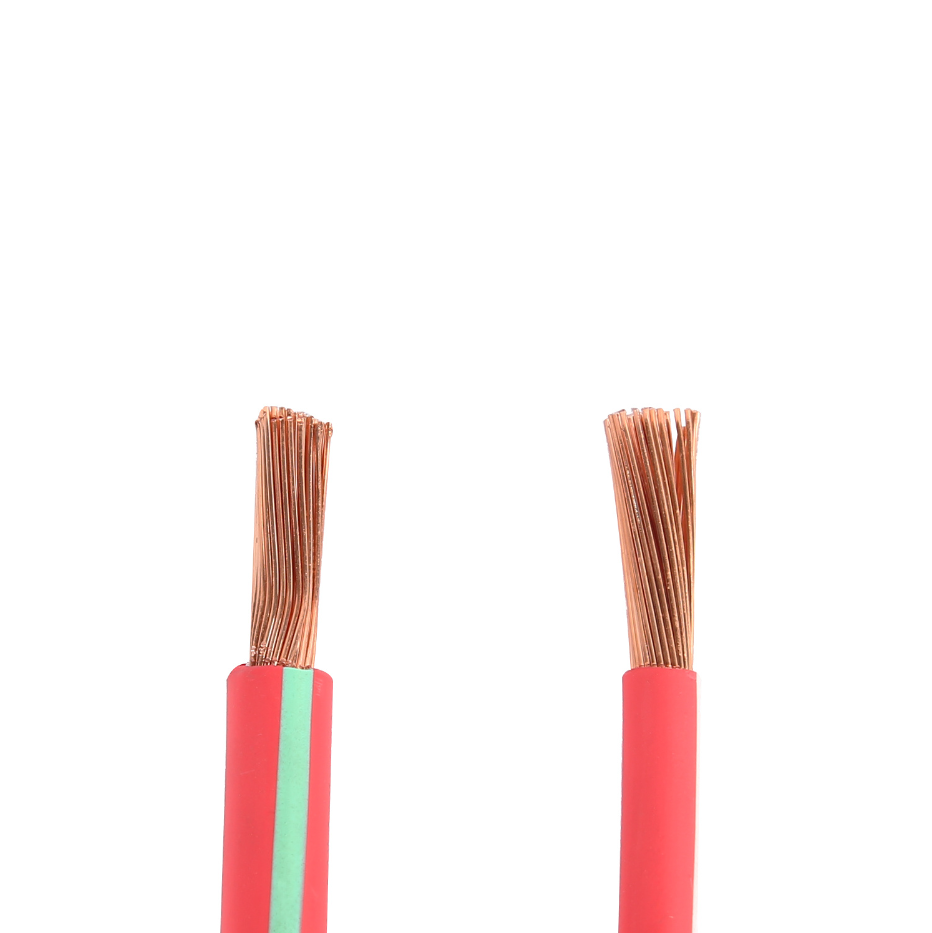

Conductor: Bare or Tinned Copper
Insulation: AEX - XLPE , AVX - XLPVC
Standard : JASO D611
Application: Used for connection in automotive electrical system.
Specification
Conductor | Insulator | Max. resistence at 20℃ | ||||||
Nominal Setion | Condutor structure | Calculated cross section | Approximate diameter | Nom. thickness | Nominal | Max | No plating | Plating |
0.5f | 20/0.18 | 0.5087 | 1.0 | 0.5 | 2.0 | 2.2 | 36.70 | 38.60 |
0.5 | 7/0.32 | 0.5629 | 1.0 | 0.5 | 2.0 | 2.2 | 32.70 | 34.60 |
0.75f | 30/0.18 | 0.7630 | 1.1 | 0.5 | 2.2 | 2.4 | 24.40 | 25.80 |
0.85 | 11/0.32 | 0.8846 | 1.2 | 0.5 | 2.2 | 2.4 | 20.80 | 22.00 |
1.25f | 50/0.18 | 1.2730 | 1.5 | 0.6 | 2.7 | 2.9 | 14.70 | 15.50 |
1.25 | 16/0.32 | 1.2870 | 1.5 | 0.6 | 2.7 | 2.9 | 14.30 | 15.10 |
2 | 26/0.32 | 2.0910 | 1.9 | 0.6 | 3.1 | 3.4 | 8.81 | 9.30 |
3 | 41/0.32 | 3.2970 | 2.4 | 0.7 | 3.8 | 4.1 | 5.59 | 5.90 |
5 | 65/0.32 | 5.2280 | 3.0 | 0.8 | 4.6 | 4.9 | 3.52 | 3.72 |
8 | 50/0.45 | 7.9520 | 3.7 | 0.8 | 5.3 | 5.6 | 2.32 | 2.45 |
Note: f in the cable means that the core is flexiable structure.
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
