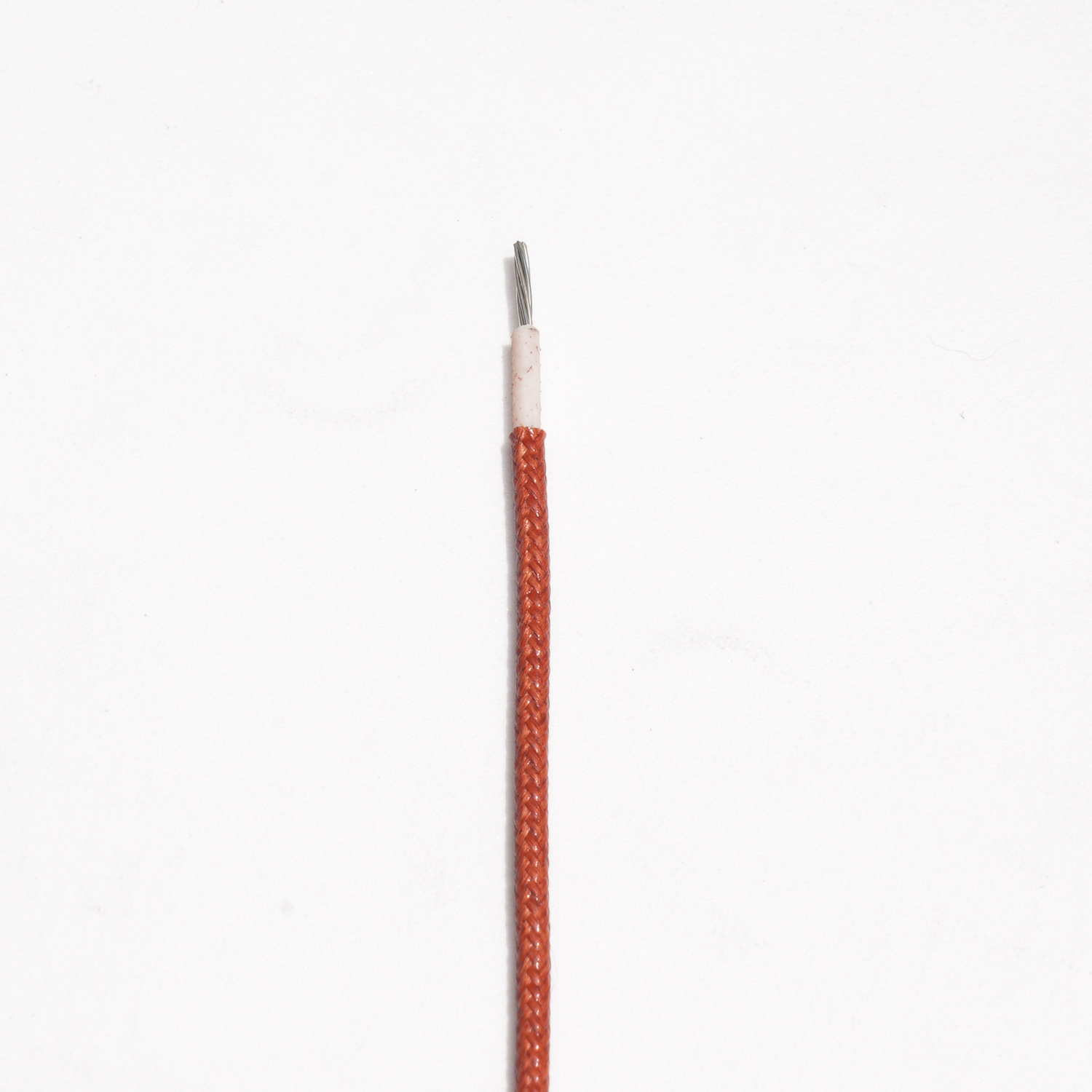

60245 IEC 03(YG) silicone rubber insulated and fiberglass braided wire

Technical Data
Nominal Voltage: 300V/500V
Temperature Range: -60℃~+180℃​
Testing Voltage: 2000V
Conductor: Tinned Copper
Insulation: Silicone Rubber
Sheath: Fiber Glass
Color: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Certificate: 2011010104471475
Application: Inner wires of electric appliances,lighting fixtures, industrial machines,electric heating products and etc..
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Technical Data
Nominal Voltage: 300V/500V
Temperature Range: -60℃ ~ +180℃
Testing Voltage: 2000V
Conductor: Tinned Copper
Insulation: Silicone Rubber
Sheath: Fiber Glass
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

Certificate: 2011010104471475
Application: Inner wires of electric appliances,lighting fixtures, industrial machines,electric heating products and etc..



Specification

Conductor

Insulation/Sheath

Resistence at 20℃
Ω/km

Nominal Section
mm²

Conductor Structure
No./mm

Diameter
mm

Nom Thickness
mm

Fiberglass Thickness
mm

Outer Diameter

mm

Nominal O.D.

Max O.D.

0.5

20/0.18

0.94

0.60

0.15

2.4

2.6

40.10

0.75

42/0.15

1.13

0.60

0.15

2.6

2.8

26.70

1

32/0.20

1.31

0.60

0.15

2.8

3.0

20.00

1.5

30/0.25

1.58

0.70

0.18

3.3

3.6

13.70

2.5

49/0.25

2.06

0.80

0.18

4.0

4.3

8.21

4

56/0.30

2.60

0.80

0.20

4.6

5.0

5.09

6

84/0.30

3.60

0.80

0.20

5.6

6.0

3.39

10

84/0.40

4.60

1.00

0.25

7.1

7.7

1.95

16

126/0.40

5.50

1.00

0.25

8.0

8.6

1.24


Application Area

home appliance

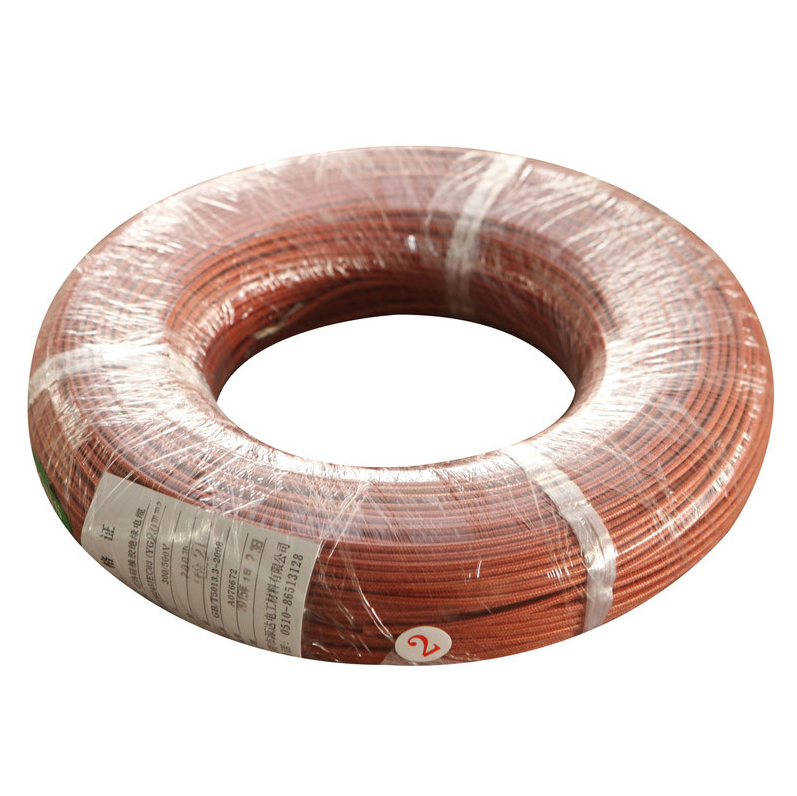

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop


Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949,CE.

certifications
