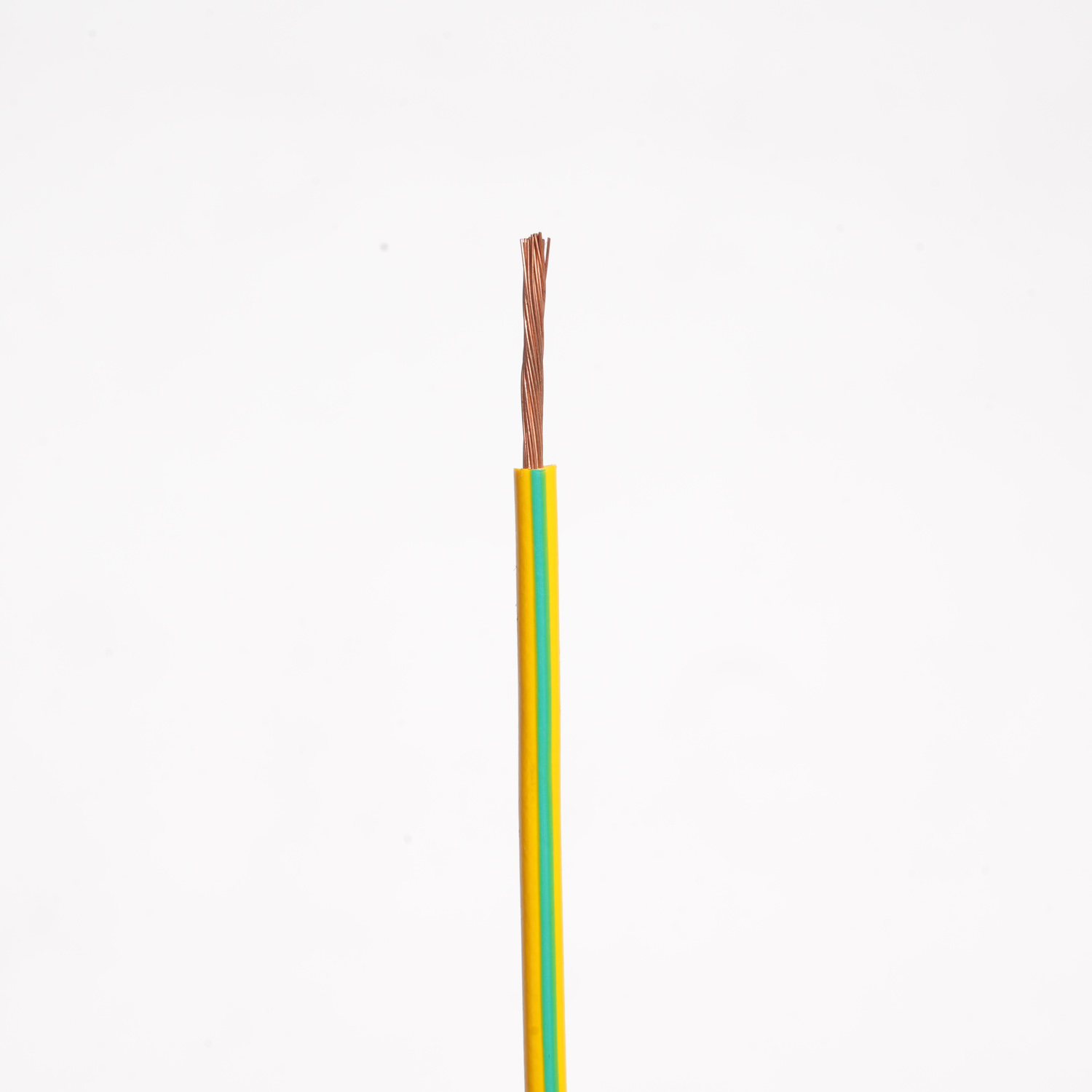

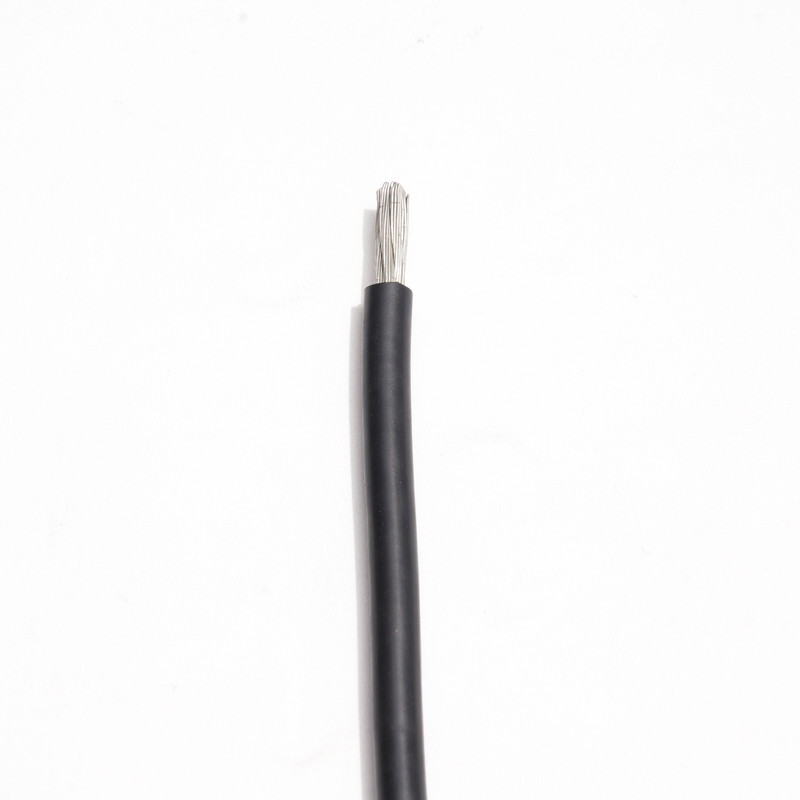

UL10002 SRPVC Insulated Electric Wire

Technical Data
Temperature Range : 105ºC
Nominal Voltage :300 V
Reference Standard : UL758,UL1581
Conductor: Tinned or bare , strand or solid Copper Conductor , 30AWG-14AWG
Insulation: SRPVC
Passes UL VW-1,CULFT1 and JQAF-Mark Flame Test
Application: For internal wiring of electonic and electrical equipment
UL/CUL Certificate No.:E216252

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Temperature Range: 105℃

Nominal Voltage: 300 V

Reference Standard: UL758,UL1581

Conductor: Tinned or bare , strand or solid Copper Conductor , 30AWG-14AWG

Insulation: SRPVC

Passes UL VW-1,CULFT1 and JQAF-Mark Flame Test

UL/CUL Certificate No.: E216252

Application: For internal wiring of electonic and electrical equipment.

Specification

Conductor			Insulation			Max. Resistence at 20ºC Ω/km	Premissible Ampacity 20ºC-AMR
AWG	Conductor Structure NO./mm	Diameter mm	Nom. Thickness mm	Nom. Outer Diameter mm	Max. Outer Diameter mm	Max. Resistence at 20ºC Ω/km	Premissible Ampacity 20ºC-AMR
32	7/0.08	0.24	0.23	0.70	0.76	563.0	0.68
30	7/0.10	0.30	0.23	0.76	0.82	364.0	1.27
28	7/0.12	0.36	0.23	0.82	0.89	252.0	2.02
26	7/0.16	0.48	0.23	0.94	1.02	143.0	3.22
24	7/0.20	0.60	0.23	1.03	1.14	92.0	5.15
22	7/0.25	0.75	0.23	1.21	1.31	56.8	8.73
20	7/0.31	0.93	0.23	1.39	1.50	40.1	13.87
18	7/0.39	1.17	0.23	1.63	1.76	23.0	22.02
16	7/0.49	1.47	0.23	1.93	2.08	14.6	35.04

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications

SRPVC Insulated Wire UL10002 Wire Copper conductor wire
