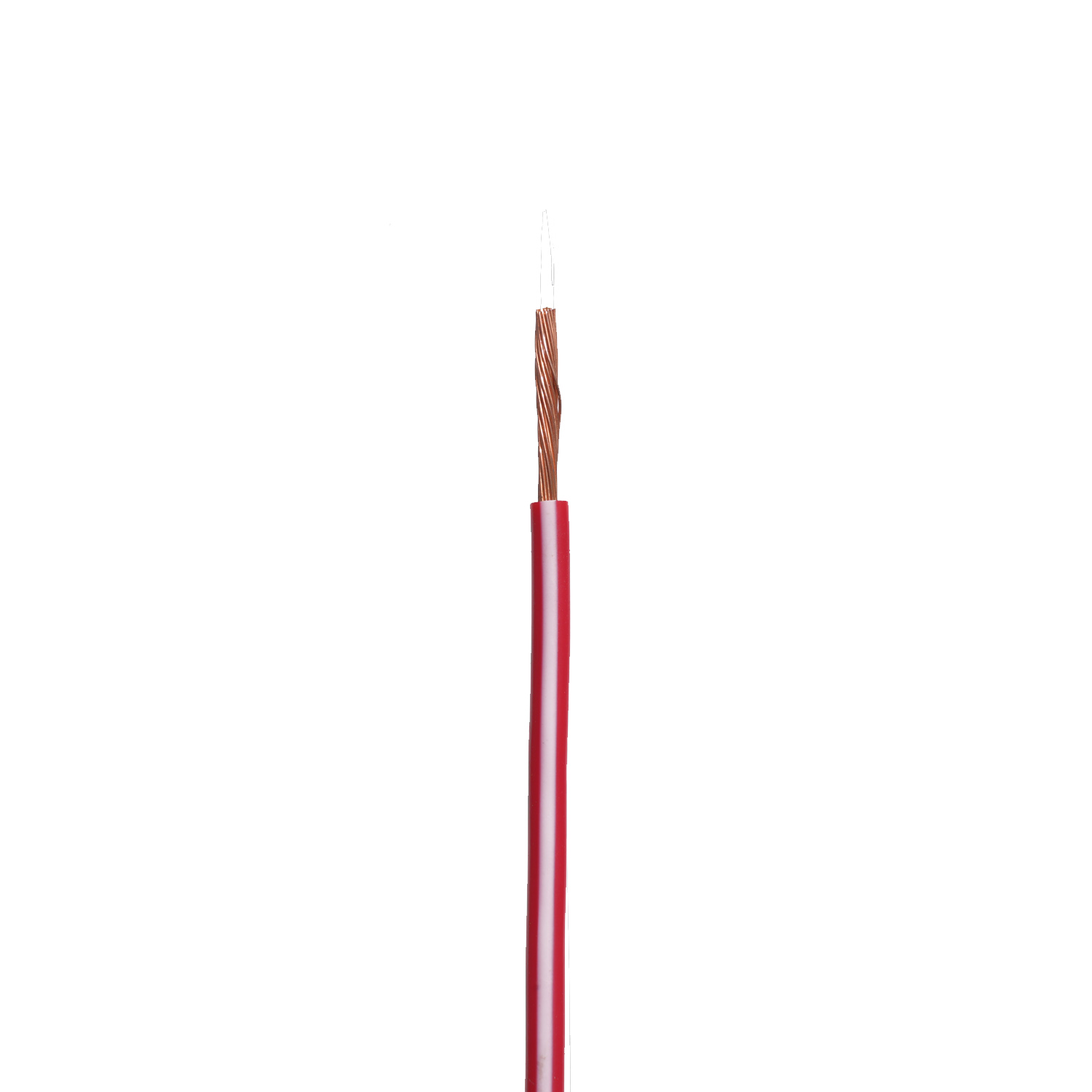

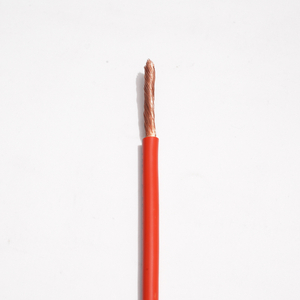

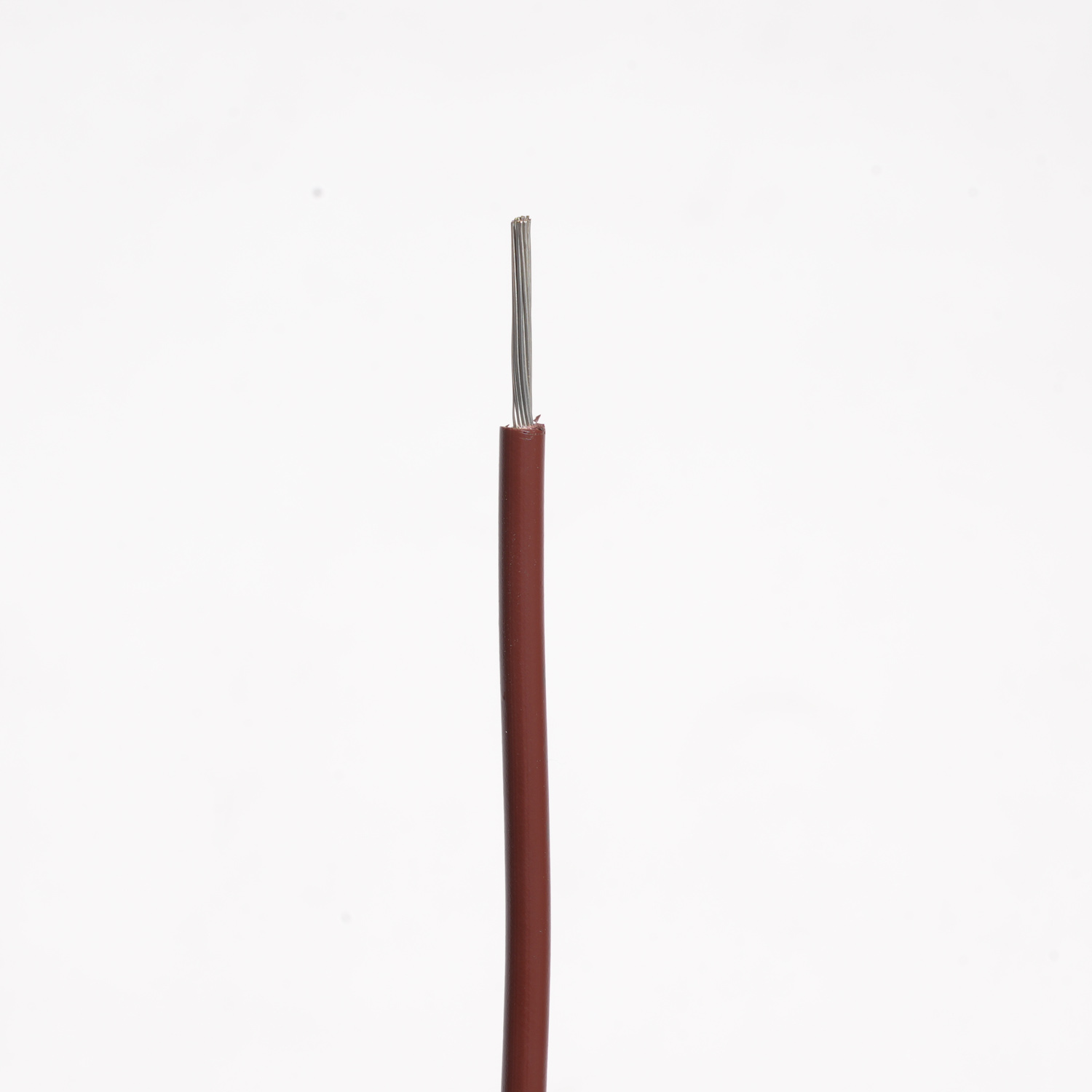

UL1015 PVC Insulated Wire of UL 758

Technical Data
Temperature Range: 80℃
Nominal Voltage: 600V
Reference Standard: UL758,UL1581
Conductor: Tinned or bare , strand or solid Copper Conductor , 30AWG-10AWG
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passes UL VW-1, CULFT1 and JQAF-Mark Flame Test
UL/CUL Certificate No.: E216252
Application: For internal wiring of electonic and electrical equipment.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Temperature Range: 80℃

Nominal Voltage: 600V

Reference Standard: UL758,UL1581

Conductor: Tinned or bare , strand or solid Copper Conductor , 30AWG-10AWG

Insulation: PVC

Uniform insulation thickness to ensure easy stripping and cutting

Passes UL VW-1,CULFT1 and JQAF-Mark Flame Test

UL/CUL Certificate No.: E216252

Application: For internal wiring of electonic and electrical equipment.

Specification

Conductor			Insulation		Max Resistence at 20℃ Ω/km
AWG	NO./mm	Diameter mm	Nom. Thickness mm	±0.1 Outer Diameter mm	Max Resistence at 20℃ Ω/km
30	7/0.102	0.30	0.80	1.90	354.33
28	7/0.127	0.38	0.80	1.98	223.75
26	7/0.160	0.48	0.80	2.08	139.76
24	11/0.160	0.61	0.80	2.21	88.36
22	17/0.160	0.76	0.80	2.36	60.16
20	21/0.178	0.94	0.80	2.54	38.58
18	34/0.178	1.20	0.80	2.80	22.98
16	26/0.254	1.50	0.80	3.10	15.06
14	41/0.254	1.88	0.80	3.48	9.59
12	65/0.254	2.36	0.80	3.96	6.07
10	65/0.320	3.00	0.80	4.60	3.73

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications
