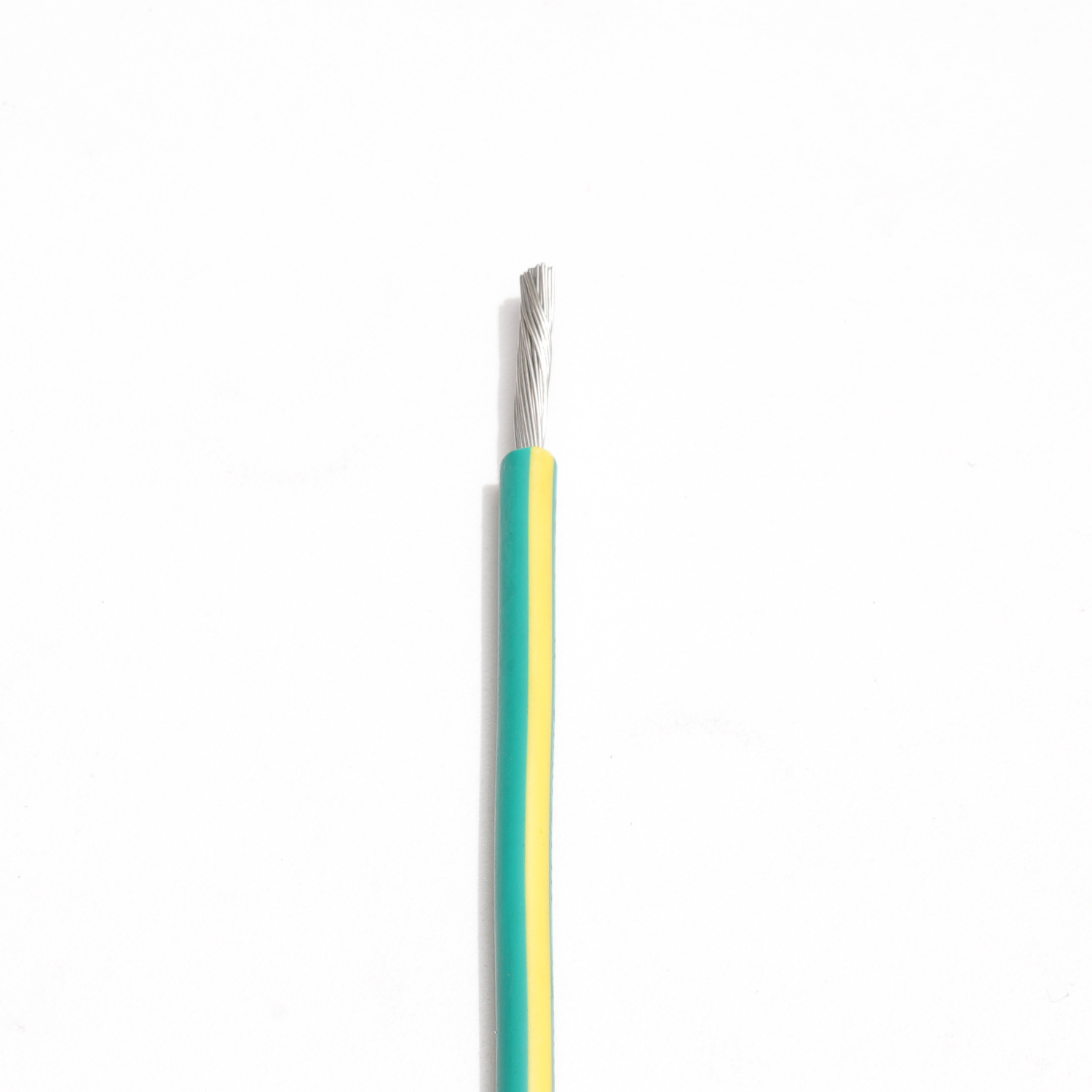

VDE H05S-K high-temperature resistant silicone rubber insulated wire

Technical Data
Nominal Voltage: 300V/500V
Temperature Range: -60ºC~+180ºC
Testing Voltage: 2000V
Conductor: Bare or Tinned Copper
Insulation: Silicone Rubber
Color: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Certificate: 40016706
Application: Inner fixed wires for home electric appliances,lighting fixtures,electronic equipment and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Nominal Voltage: 300V/500V
Temperature Range: -60ºC~+180ºC
Testing Voltage: 2000V
Conductor: Bare or Tinned Copper
Insulation: Silicone Rubber
Color: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

Certificate: 40016706

Application: Inner fixed wires for home electric appliances,lighting fixtures,electronic equipment and etc..

Specification

Conductor			Insulation			Resistence at 20℃ Ω/km
Nominal Section mm²	Conductor Structure No./mm	Diameter mm	Nom Thickness mm	Outer Diameter mm
Nominal Section mm²	Conductor Structure No./mm	Diameter mm	Nom Thickness mm	Nominal O.D.	Max O.D.
0.5	28/0.15	0.94	0.80	2.54	2.7	40.10
0.75	24/0.20	1.13	0.80	2.73	2.9	26.70
1	32/0.20	1.31	0.80	2.91	3.1	20.00
1.5	30/0.25	1.58	0.90	3.38	3.7	13.70
2.5	49/0.25	2.06	1.00	4.06	4.4	8.21

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications
