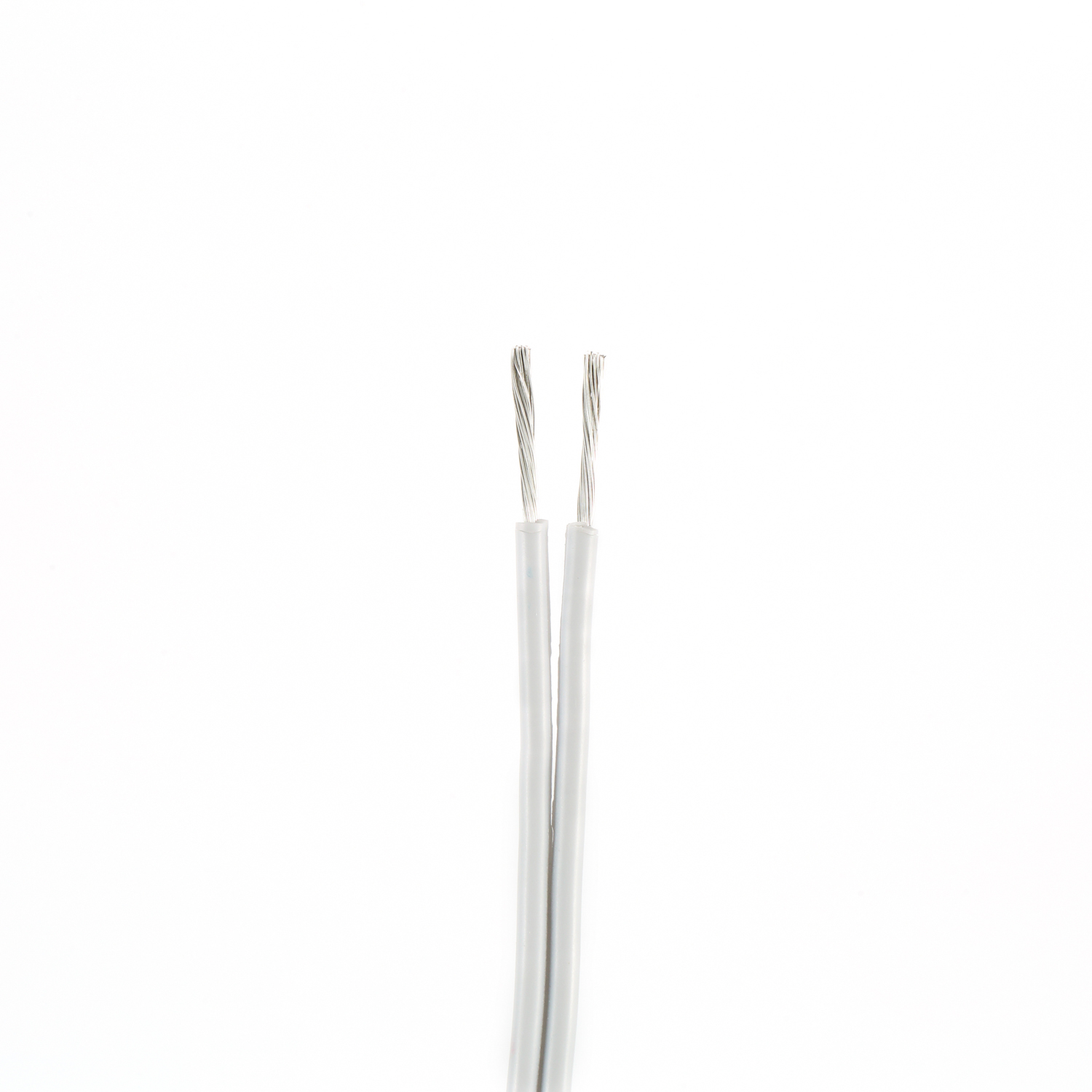

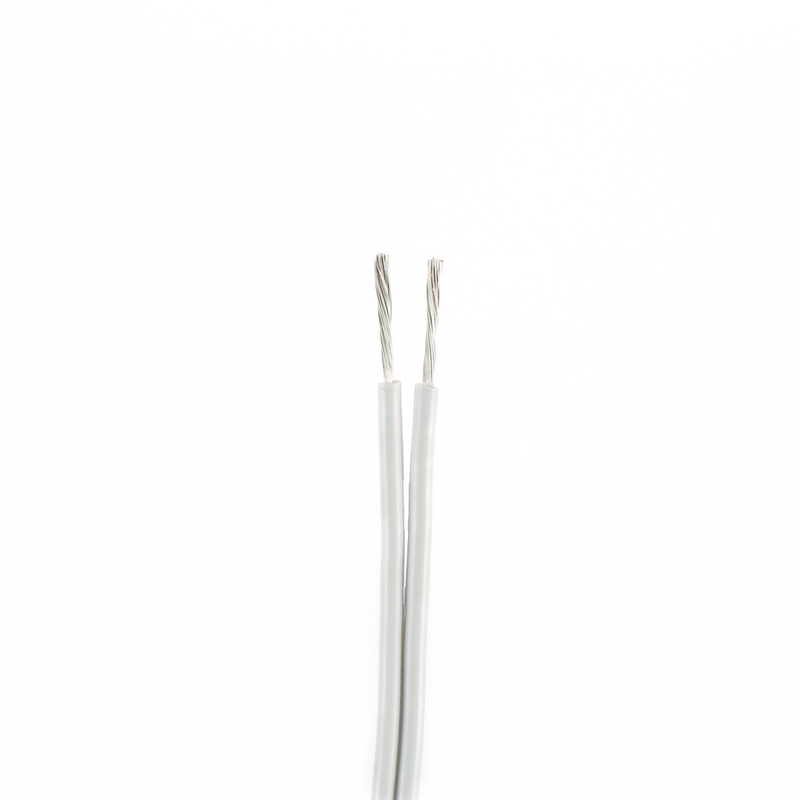

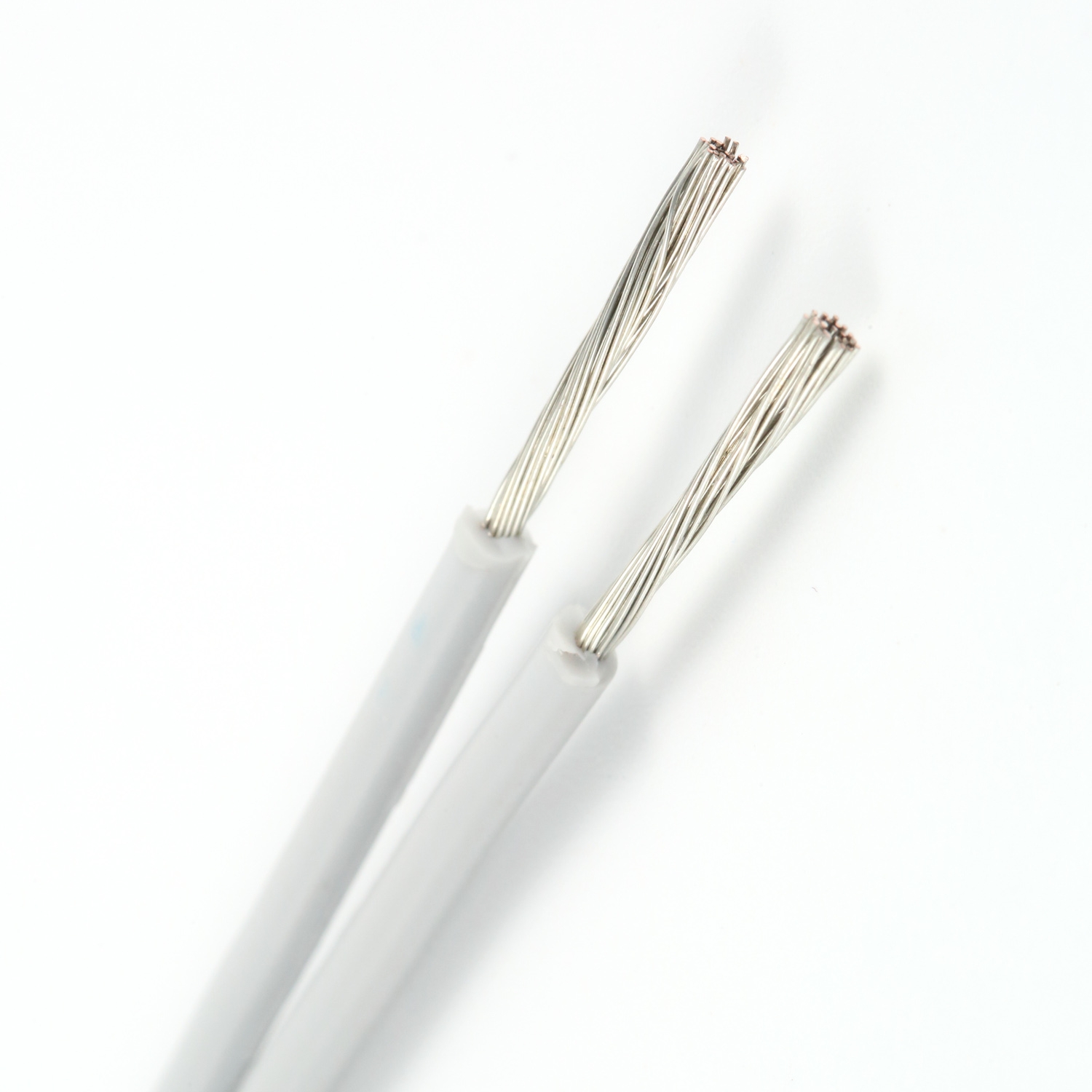

VDE 03SD-K Tinned Copper Conductor Silicone Rubber Twin Wire

Technical Data
Nominal Voltage: 300V
Temperature Range: -60° C ~ +180° C
Testing Voltage: 2000V
O. D. Tolerance: ±0.20mm
Conductor: Tinned Copper
Insulator: Silicone Rubber
Colors: White, Blue, Red, Black, Brown, Yellow, Green, Transparent.
Application: Inner fixed wires for home electric appliances, lighting fixtures, electronic equipment and etc.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Nominal Voltage: 300V
Temperature Range: -60° C ~ +180° C
Testing Voltage: 2000V
O. D. Tolerance: ±0.20mm
Conductor: Tinned Copper
Insulator: Silicone Rubber
Colors: White, Blue, Red, Black, Brown, Yellow, Green, Transparent.
Application: Inner fixed wires for home electric appliances, lighting fixtures, electronic equipment and etc.

Specification

Conductor			Insulation		Electrical characteristic
Nominal section mm²	Conductor structure No./mm	Diameter mm	Nominal thickness mm	Outer diameter mm	Resistance at 20℃ Ω/km	Permissible ampacity 20℃- AMR
2×0.5	16/0.20	0.92	0.6	4.2×2.11	40.1	6.68
	28/0.15
	20/0.18
2×0.75	42/0.15	1.13	0.6	4.65×2.32	26.7	10.03
	24/0.20
	30/0.18
2×1.0	32/0.20	1.31	0.6	3.0	20.0	13.42
2×1.5	30/0.25	1.58	0.7	3.5	13.7	20.02
2×2.5	49/0.25	2.06	0.8	4.1	8.2	33.47

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications

tinned copper wire VDE wire twin wire VDE 03SD-K Wires for home appliances
