Technical Data

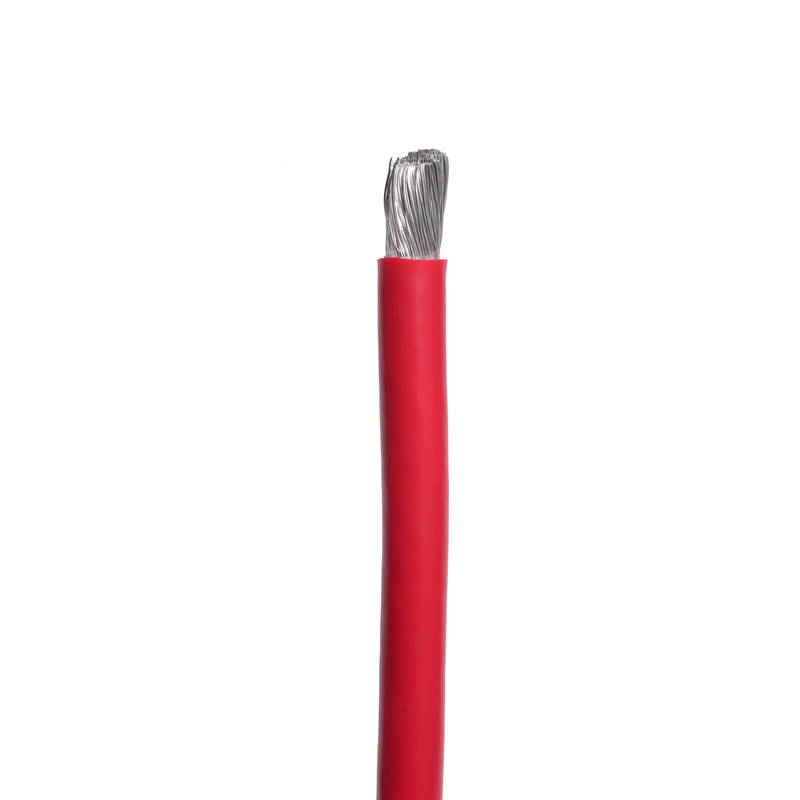

Type: FLALY, FLAL2G, FLAL2X, FLAL91X
Nominal Voltage: 60V
Temperature Range:
FLALY(-40℃ ~ +105℃)、FLAL2G(-40℃ ~ +180℃)
FLAL2X(-40℃ ~ +125℃)、FLAL91X(-40℃ ~ +150℃)
Conductor: Aluminum
Insulation:
FLALY(-40℃ ~ +105℃)—PVC、FLAL2G(-40℃ ~ +180℃)—SIR
FLAL2X(-40℃ ~ +125℃)—XLPO、FLAL91X(-40℃ ~ +150℃)—XLPO
Standard: LV112-2
Application: Internal connection wiring between battery and engine, or other circuits in electric vehicles.
Specification
Conductor | Insulation | Max. Resistance at 20℃ | |||
Nominal Cross Section | Conductor Structure | Diameter | Nominal Thickness | Outer Diameter | |
10 | 49/0.51 | 4.3 | 4.3 | 4.3 | 3.1 |
17 | 84/0.51 | 5.5 | 5.5 | 5.5 | 1.82 |
27 | 133/0.51 | 7 | 7 | 7 | 1.16 |
42 | 210/0.51 | 9 | 9 | 9 | 0.743 |
59 | 294/0.51 | 10.6 | 10.6 | 10.6 | 0.527 |
85 | 420/0.51 | 12.9 | 12.9 | 12.9 | 0.368 |
120 | 608/0.51 | 15.1 | 15.1 | 15.1 | 0.259 |
160 | 798/0.51 | 17.9 | 17.9 | 17.9 | 0.196 |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949,CE.
