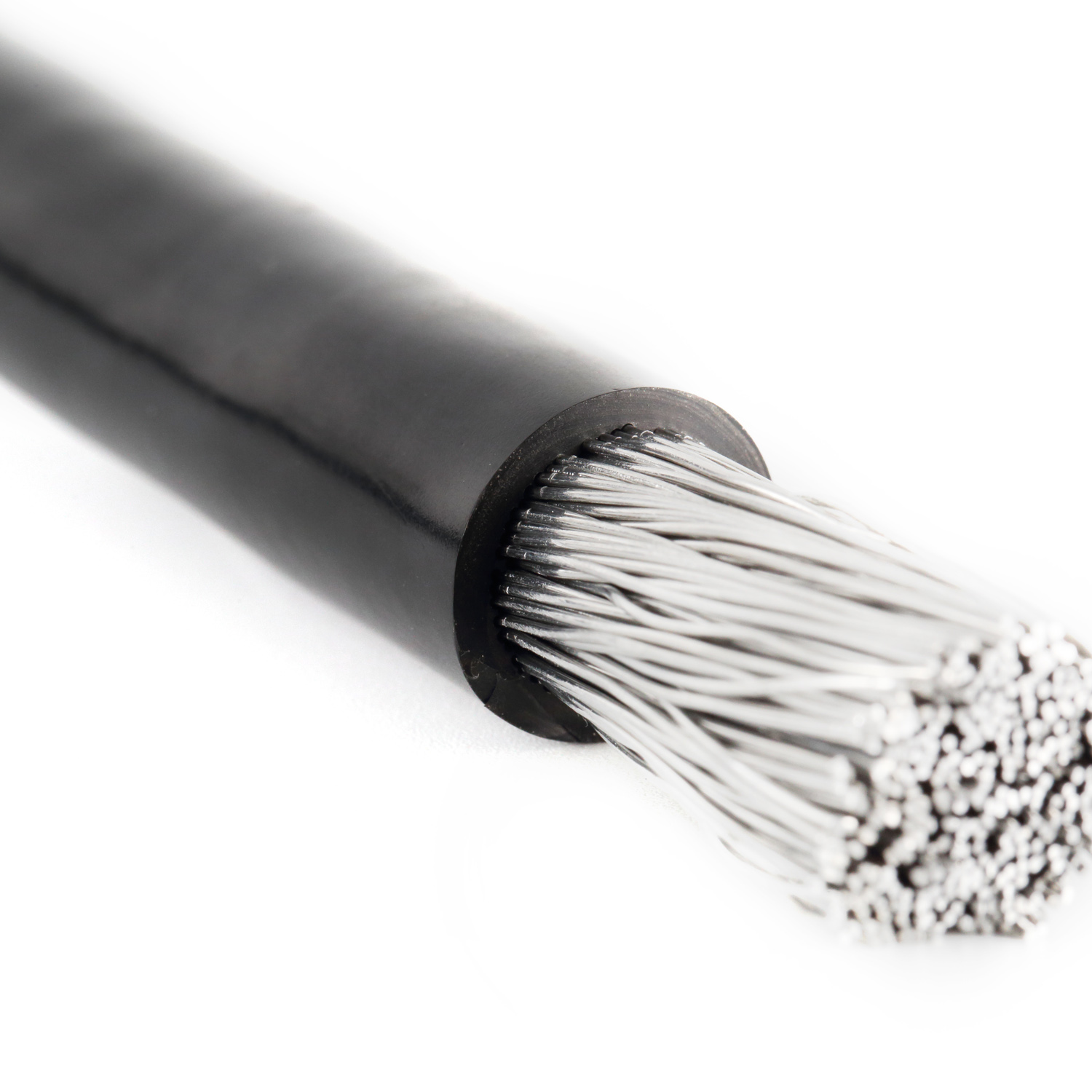

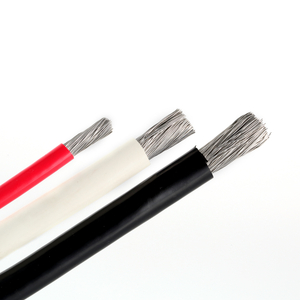

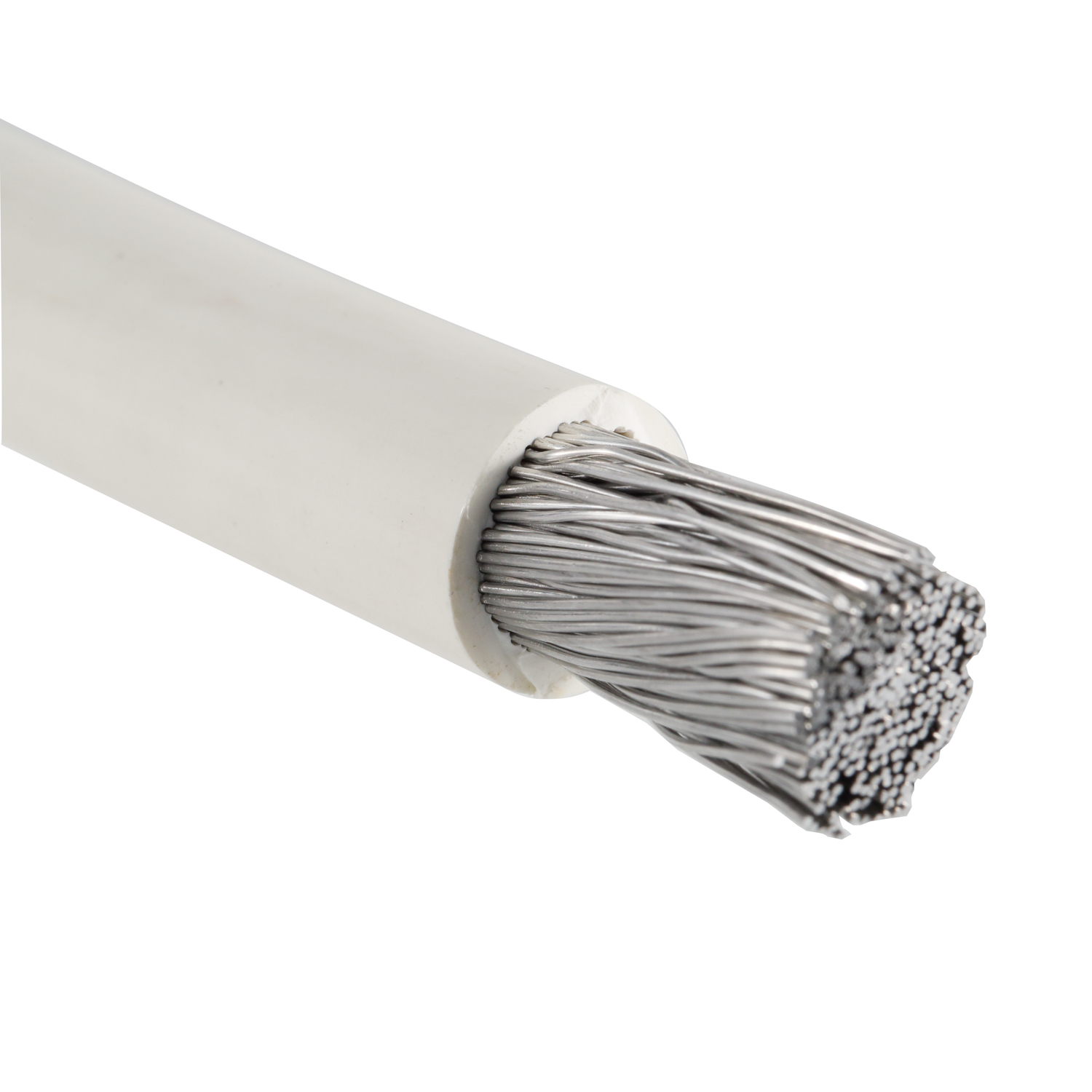

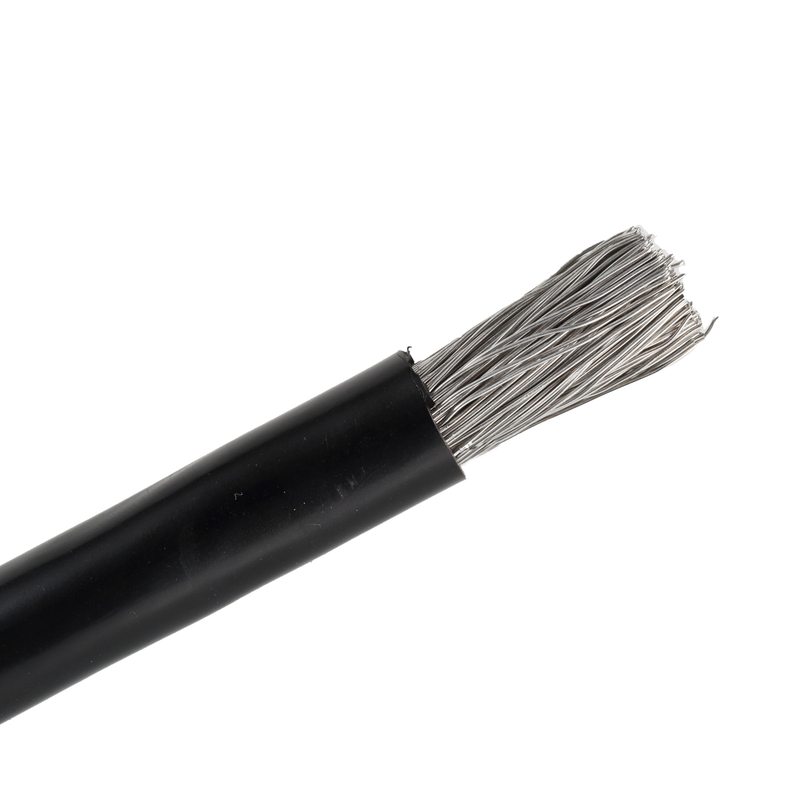

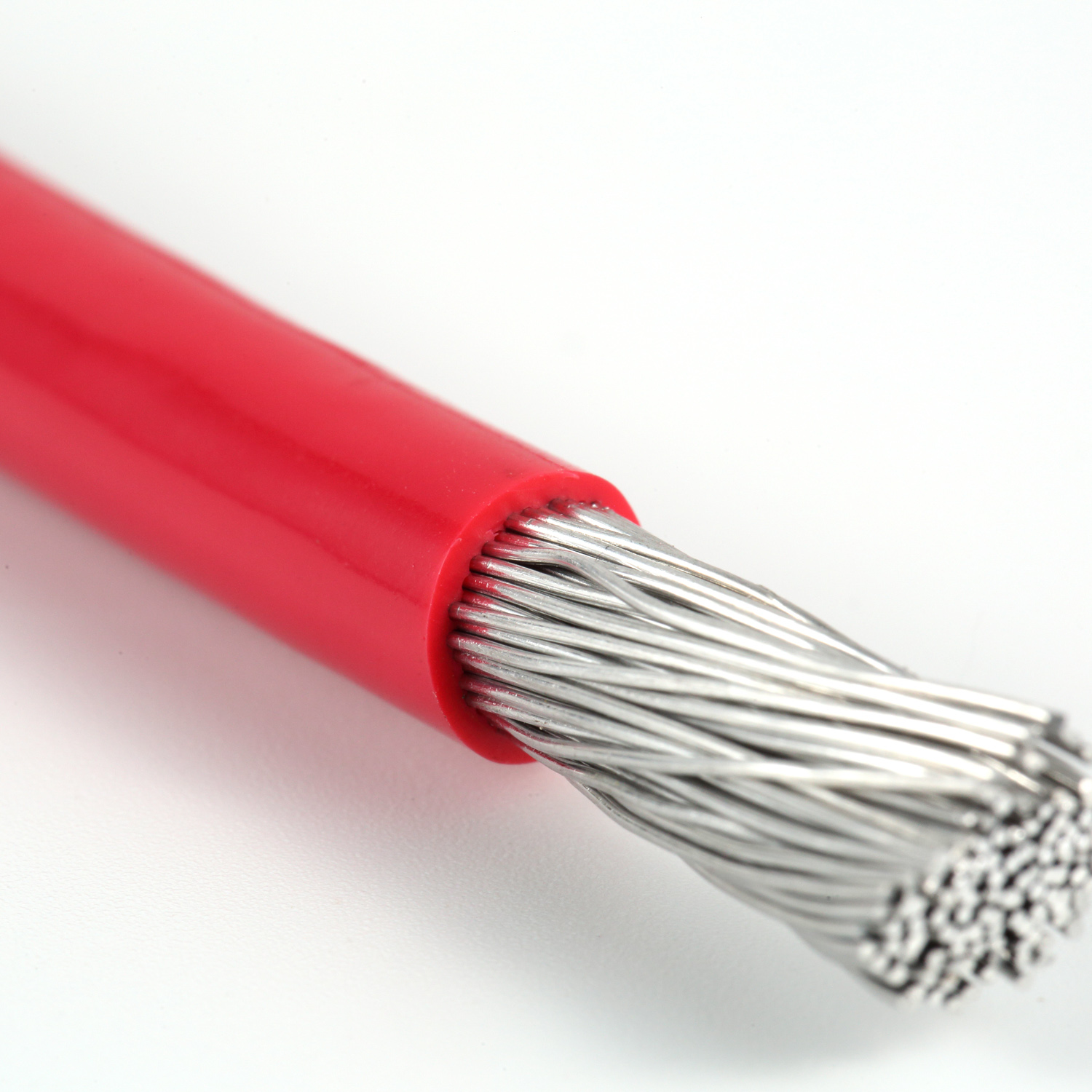

Technical Data
Nominal Voltage: 60V DC, 25V AC
Temperature Range: 90℃
Testing Voltage: 1000V
Conductor: Aluminum
Insulation: PVC
Standard: JASO D611
Application: Used for connection in automotive electrical system.
Specification
Conductor | Insulation | Reference | ||||||
Nominal Cross Section | Conductor Structure | Calculated Cross Section | Approximate Diameter | Nom. Thickness | Nominal O.D. | Max O.D. | Max Resistance at 20℃ | Reference Weight |
15 | 30/0.80 | 15.08 | 5.1 | 1.1 | 7.3 | 7.7 | 1.911 | 73 |
20 | 18/1.20 | 20.36 | 5.9 | 1.1 | 8.1 | 8.5 | 1.416 | 91 |
30 | 27/1.20 | 30.54 | 7.2 | 1.4 | 10 | 10.7 | 0.944 | 139 |
40 | 35/1.20 | 39.59 | 8.2 | 1.4 | 11 | 11.7 | 0.729 | 170 |
50 | 44/1.20 | 49.77 | 9.2 | 1.6 | 12.4 | 13.2 | 0.579 | 216 |
60 | 53/1.20 | 59.94 | 10.1 | 1.6 | 13.3 | 14.1 | 0.481 | 250 |
70 | 46/1.40 | 70.79 | 11.0 | 1.8 | 14.6 | 15.4 | 0.407 | 300 |
85 | 55/1.40 | 84.65 | 12.0 | 2.0 | 16 | 17.0 | 0.341 | 360 |
100 | 65/1.40 | 100.00 | 13.1 | 2.0 | 17.1 | 18.1 | 0.288 | 413 |
Note:f in the table means that the core is flexible structure.
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
