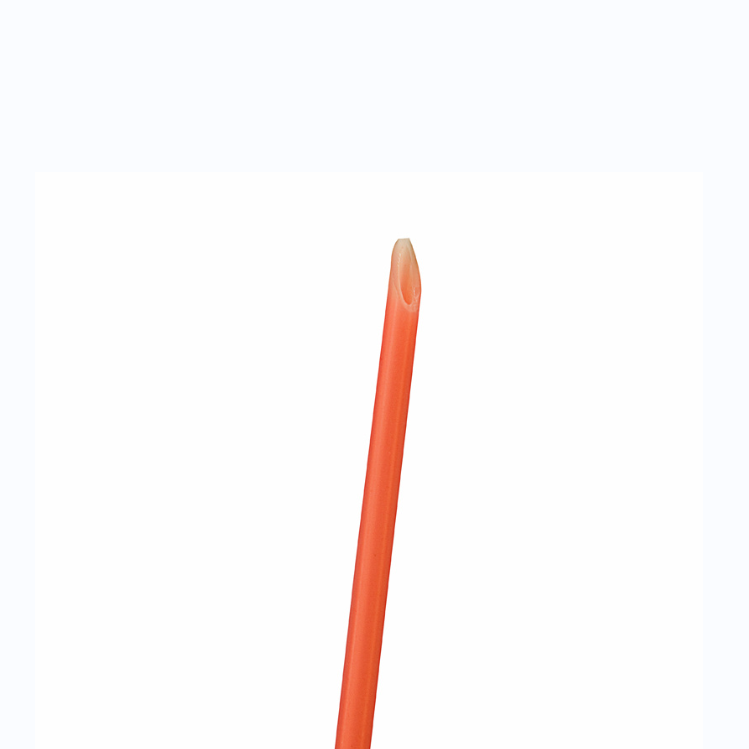

SR heat resistant silicone rubber sleeve

Technical Data
Nominal voltage: 600V
Testing voltage: 2.5KV, 4KV, 7KV
Colors: white or according to the customers' requirements
UL/CUL Certificate No.: E246632
Application: Insulation protection for electrionic and electric equipment, lignting, industrial machine and electric heating products etc.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data

Nominal voltage: 600V

Testing voltage: 2.5KV, 4KV, 7KV

Colors: white or according to the customers' requirements

UL/CUL Certificate No.: E246632

Application: Insulation protection for electrionic and electric equipment, lignting, industrial machine and electric heating products etc.

Specification

Size	SR-2.5KV		SR-4KV		SR-7KV		Length
	Average thickness	Inner diameter tolerance	Average thickness	Inner diameter tolerance	Average thickness	Inner diameter tolerance
Φmm	mm	mm	mm	mm	mm	mm	M/R
1.0	0.5	+0.20 -0.10	1.0	+0.30 -0.10	1.8	+0.30 -0.10	Lengths can be customized according to customer requirements
2.0	0.5
2.5	0.5
3.0	0.5
3.5	0.5	+0.30 -0.10
4.0	0.5
4.5	0.5			+0.35 -0.15		+0.40 -0.15
5.0	0.5	+0.35 -0.15
5.5	0.55
6.0	0.6				2.2
6.5	0.6		1.2
7.0	0.7	+0.40 -0.15	1.2	+0.40 -0.15		+0.40 -0.20
8.0	0.7		1.5		2.6
9.0	0.75		1.5
10.0	0.8
Max 20.0	2.0	+0.45 -0.20	3.0	+0.50 -0.20	4.0	+0.50 -0.20

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications
