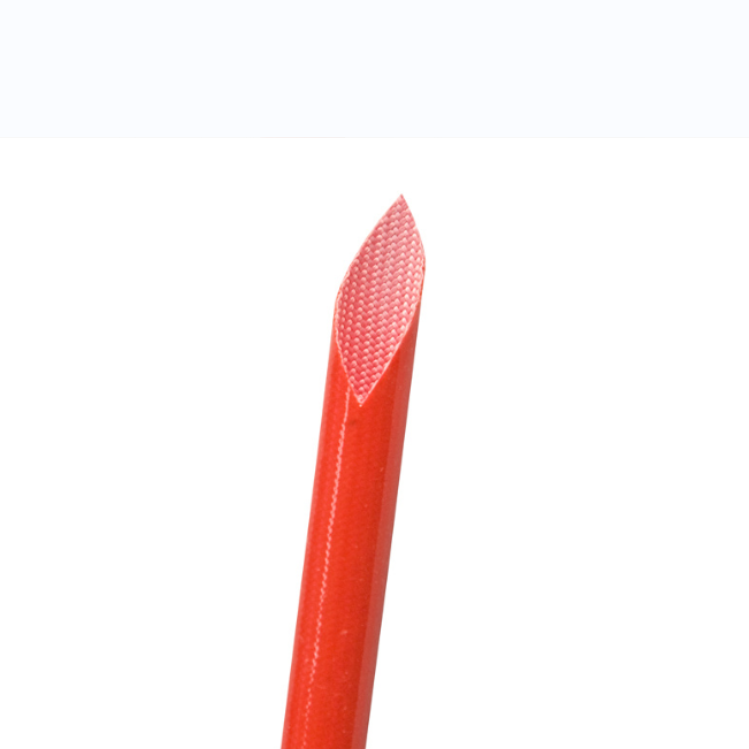

SRG liquid silicone SRG braided sleeve

Technical Data
Nominal voltage: 300V
Temperature Range: -60℃~+200℃
Testing voltage: 4KV, 5KV, 7KV
Colors: white or according to the customers' requirements
Tested by UL VW-1
UL/CUL Certificate No.: E249875
Application: Insulation protection for electrionic and electric equipment, lignting, industrial machine and electric heating products etc.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data

Nominal voltage: 300V

Temperature Range: -60℃ ~ +200℃

Testing voltage: 4KV, 5KV, 7KV

Colors: white or according to the customers' requirements

Tested by UL VW-1

UL/CUL Certificate No.: E249875

Application: Insulation protection for electrionic and electric equipment, lignting, industrial machine and electric heating products etc.

Specification

Size	SRG-4KV		SRG-5KV		SRG-7KV		Length
	Average thickness	Inner diameter tolerance	Average thickness	Inner diameter tolerance	Average thickness	Inner diameter tolerance	M/R	Note
Φmm	mm	mm	mm	mm	mm	mm
1.0	0.52±0.10	+0.20 0	0.55±0.15	+0.20 0	0.60±0.20	+0.20 0	100	Lengths can be customized according to customer requirements
1.5
2.0	0.54±0.10	+0.20 0	0.56±0.15	+0.20 0	0.62±0.20	+0.20 0
2.5
3.0	0.55±0.10	+0.25 -0.10	0.58±0.20	+0.25 -0.10	0.68±0.25	+0.25 -0.10
3.5
4.0
4.2	0.60±0.15	+0.35 -0.10	0.65±0.20	+0.35 -0.10	0.72±0.25	+0.40 -0.10
4.5
5.0
6.0
7.0	0.65±0.20	+0.35 -0.10	0.68±0.25	+0.35 -0.10	0.74±0.30	+0.40 -0.10
8.0
9.0	0.68±0.20	+0.40 -0.15	0.70±0.25	+0.40 -0.15	0.76±0.30	+0.50 -0.15	50
10.0
11.0	0.70±0.25	+0.45 -0.15	0.73±0.25	+0.45 -0.15	0.78±0.40	+0.60 -0.15
12.0
Max 20.0	0.90±0.30	+0.60 -0.20	0.95±0.45	+0.70 -0.20	1.0±0.50	+0.70 -0.20	30

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications
