Technical Data
Valid values for maximum continuons operating voltage 750V
Frequency: not more than 30GHz
Ratio: 69.5% of the nominal value
DC resistance of inner conductor properties (20℃): less than 0.802Ω/m
Elongation: not less than 10%
Tensile strength: not less than 345N/mm2
Operating temperature range:
SFF-50-1-51-type cable (-55℃~200℃)
SFF-50-1-52-type cable (-55℃~230℃)

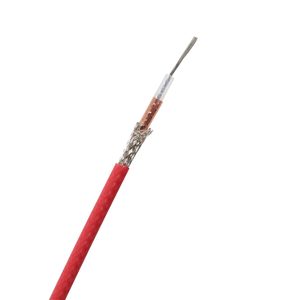

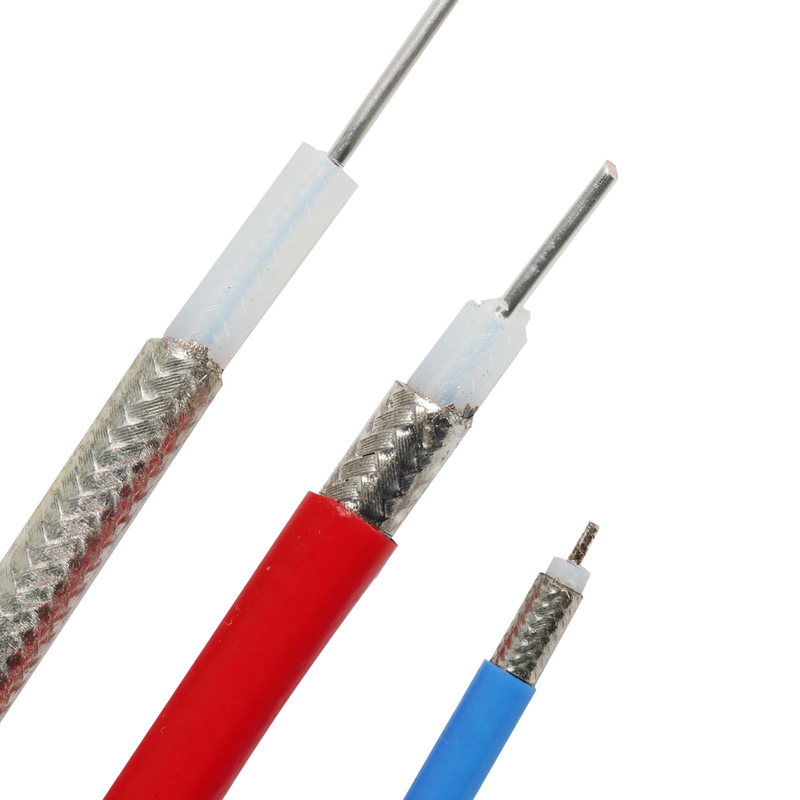

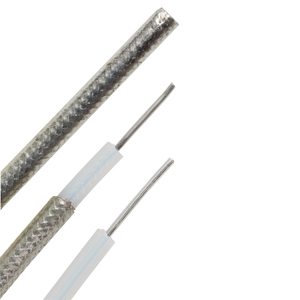

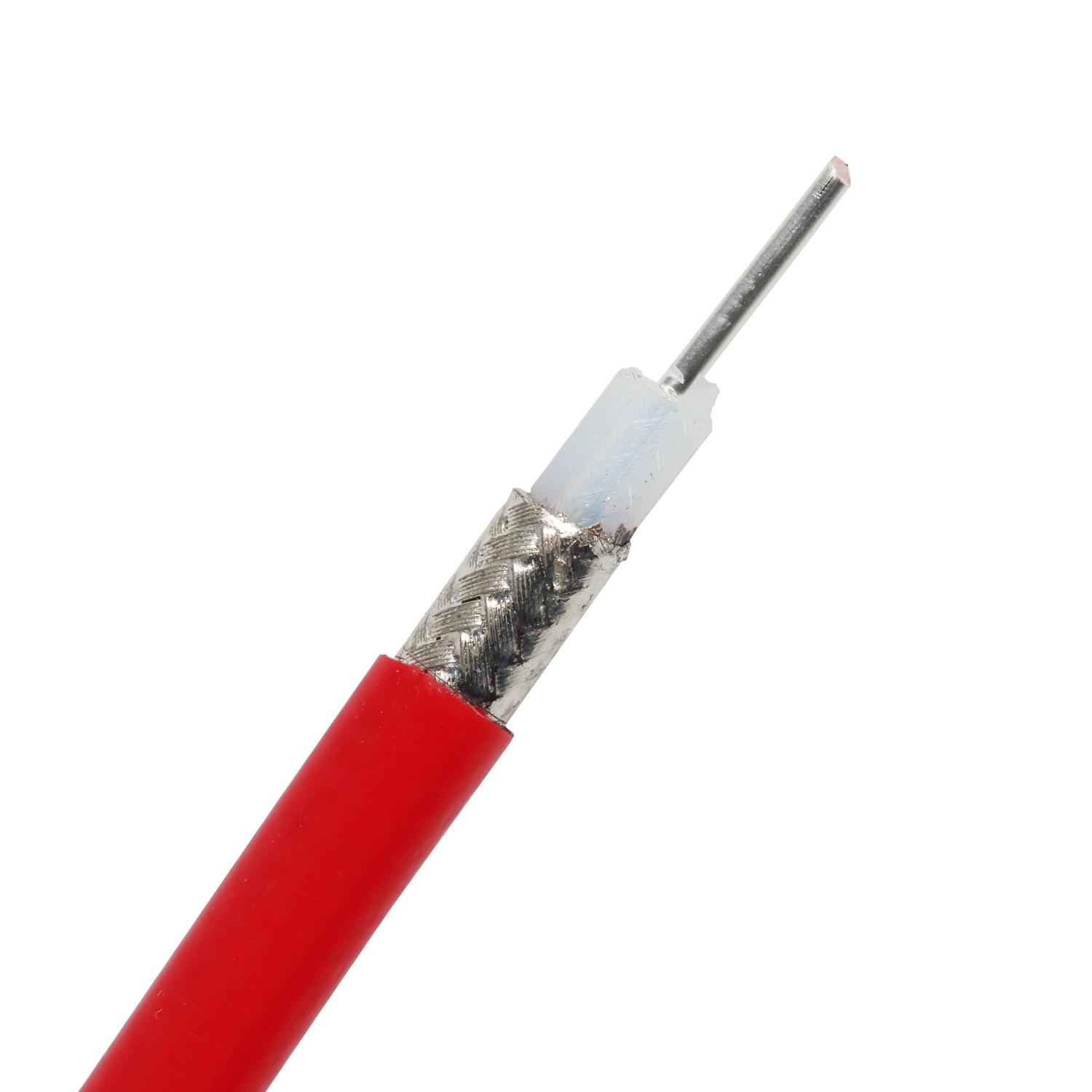

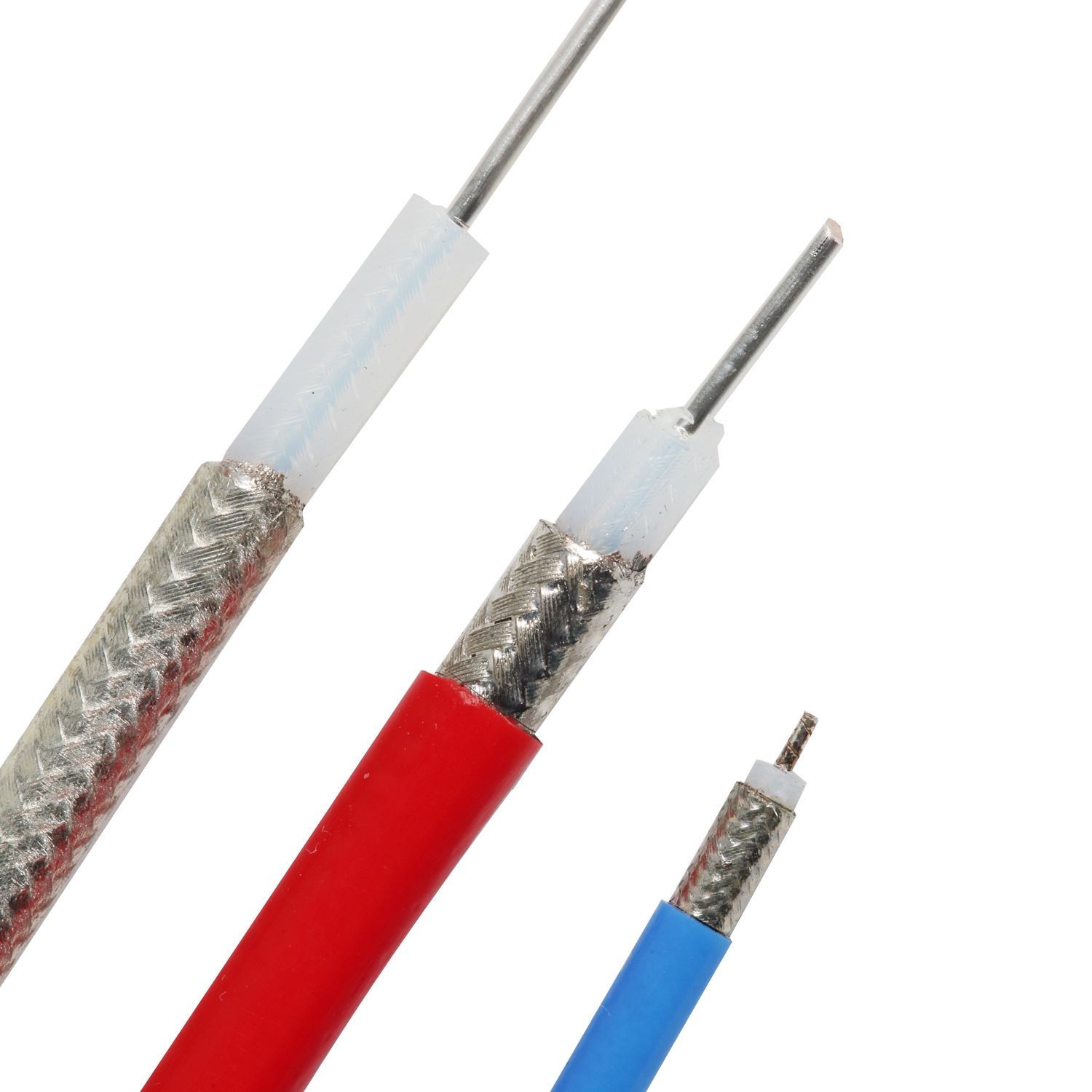

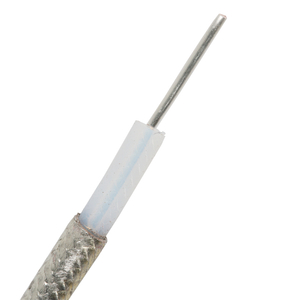

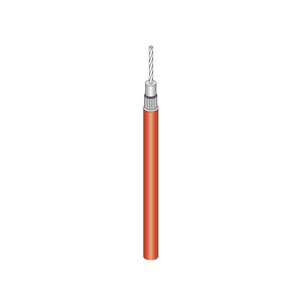

Inner conductor: silver-plated copper dad steel wire
Outer conductor: silver-plated copper
PTFE Insulation: PTFE
Jacket: FEP(SFF-50-1-51) or PFA(SFF-50-1-52)
Executive standard: SJ 20103

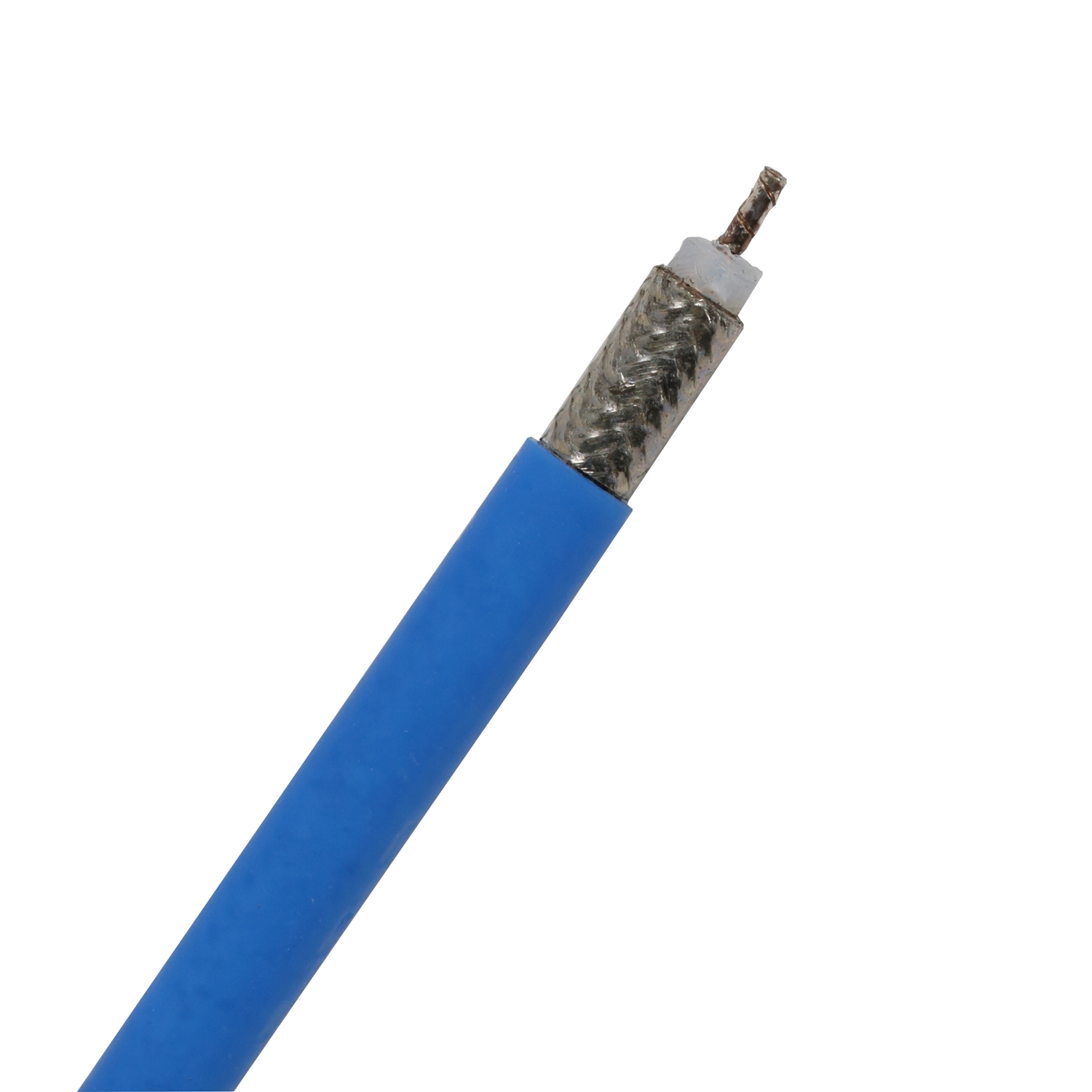

Applications and features: Type of RF coaxial cable for radio communications equipment and other similar high-frequency transmission technology using electronic devices.
Specification
Type | Inner Conductor No./Diamater OD mm | Nominal Insulation OD | Outer Conductor | Nominal Jacket OD mm | Nominal Feature Impedance mm | Attenuation Constant ≤dB/m | Return Loss db | ||||
50 MHZ | 400 MHZ | 3000 MHZ | ≤50 MHZ | 101-400 MHZ | 1001-3000 MHZ | ||||||
SFF-50-1-51 | 7/0.10 | 0.84 | 1.37 | 1.8 | 50 | 38.06 | 108.3 | 308.4 | 26 | 22 | 14 |
SFF-50-1-52 | |||||||||||
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
