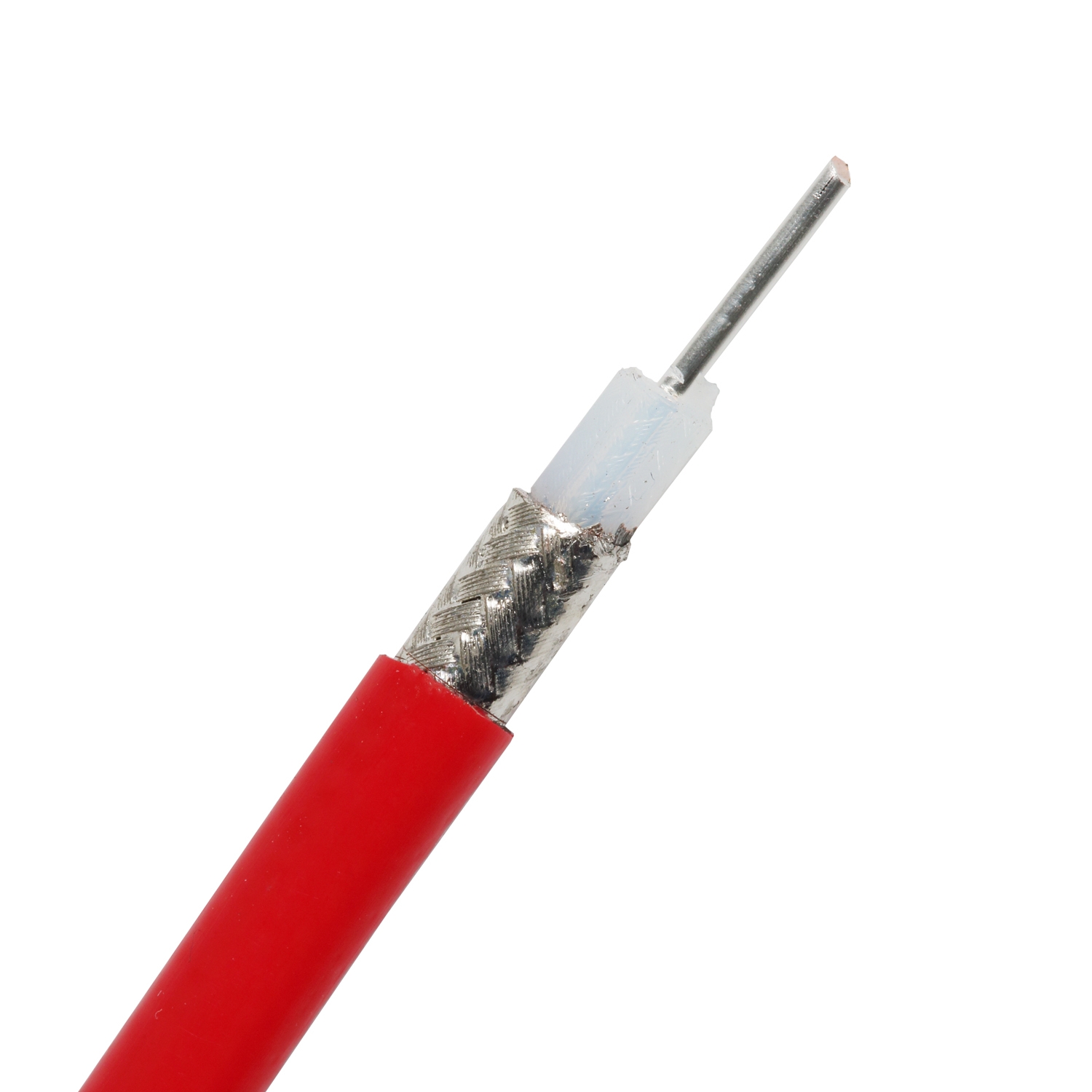

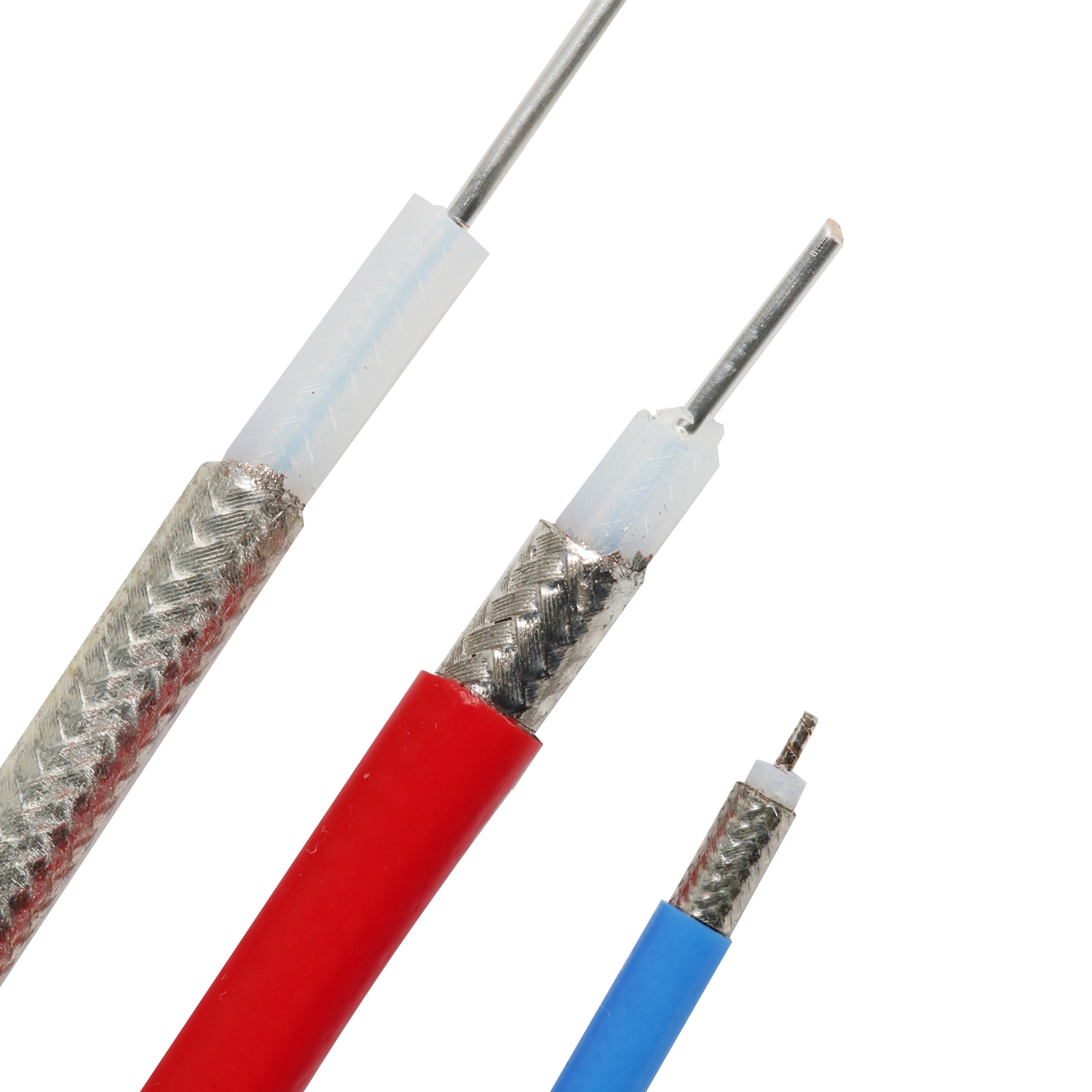

RF/RG/SFF SeriesType Flexible Coaxial Cables

Technical Data
Dielectric Strength：1000V（AC）/min
Frequency: Not less than 50MHz
Ratio: 69.5% of the nominal value
DC resistance of inner conductor ( at 20° C): Less than 0.80Ω /m
Elongation: Not less than 1%
Tensile strength: Not less than 758N/mm²
Operating temperature range: (-55~200)° C
Inner conductor: Silver-plated copper clad steel wire
Insulation: PTFE
Jacket: FEP
Executive Standard: SJ 50973 、GB12269、GJB973、MIL-C-17
Application and features: This cable is used for radio communications equipment, aircraft and other high-frequency transmission technology using similar electronic devices.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data

Dielectric Strength：1000V（AC）/min

Frequency: Not less than 50MHz

Ratio: 69.5% of the nominal value

DC resistance of inner conductor ( at 20° C): Less than 0.80Ω /m

Elongation: Not less than 1%

Tensile strength: Not less than 758N/mm²

Operating temperature range: (-55~200)° C

Inner conductor: Silver-plated copper clad steel wire

Insulation: PTFE

Jacket: FEP

Executive Standard: SJ 50973 、GB12269、GJB973、MIL-C-17

Application and features: This cable is used for radio communications equipment, aircraft and other high-frequency transmission technology using similar electronic devices.

Specification

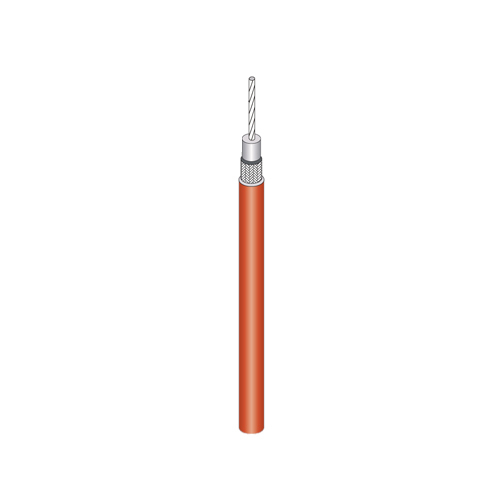

Cable structure and key performance data
Type	RG
Inner conductor Number/Diameter (mm)	7/0.102
Nominal insulation OD (mm)	0.86
Outer conductor ≤ (mm)	1.35
Nominal jacket OD (mm)	1.80
Nominal Feature Impedance (Ω)	50
Attenuation constant ≤ dB/100m	1GHz	1.70
	2GHz	2.45
	3GHz	3.10
	4GHz	3.65
	5GHz	4.15
	6GHz	4.80
Standing wave(0-6GHz)≤	1.35
Test voltage (kv(AC)/min))	1
