Technical Data
Valid values for maximum continuons operating voltage: 750V
Frequency: not more than 12.4GHz
Ratio: 69.5% of the nominal value
DC resistance of inner conductor properties (20℃): less than 0.280 Ω/m
Elongation: not less than 10%
Tensile strength: not less than 345N/mm2
Operating temperature range: -55℃~200℃

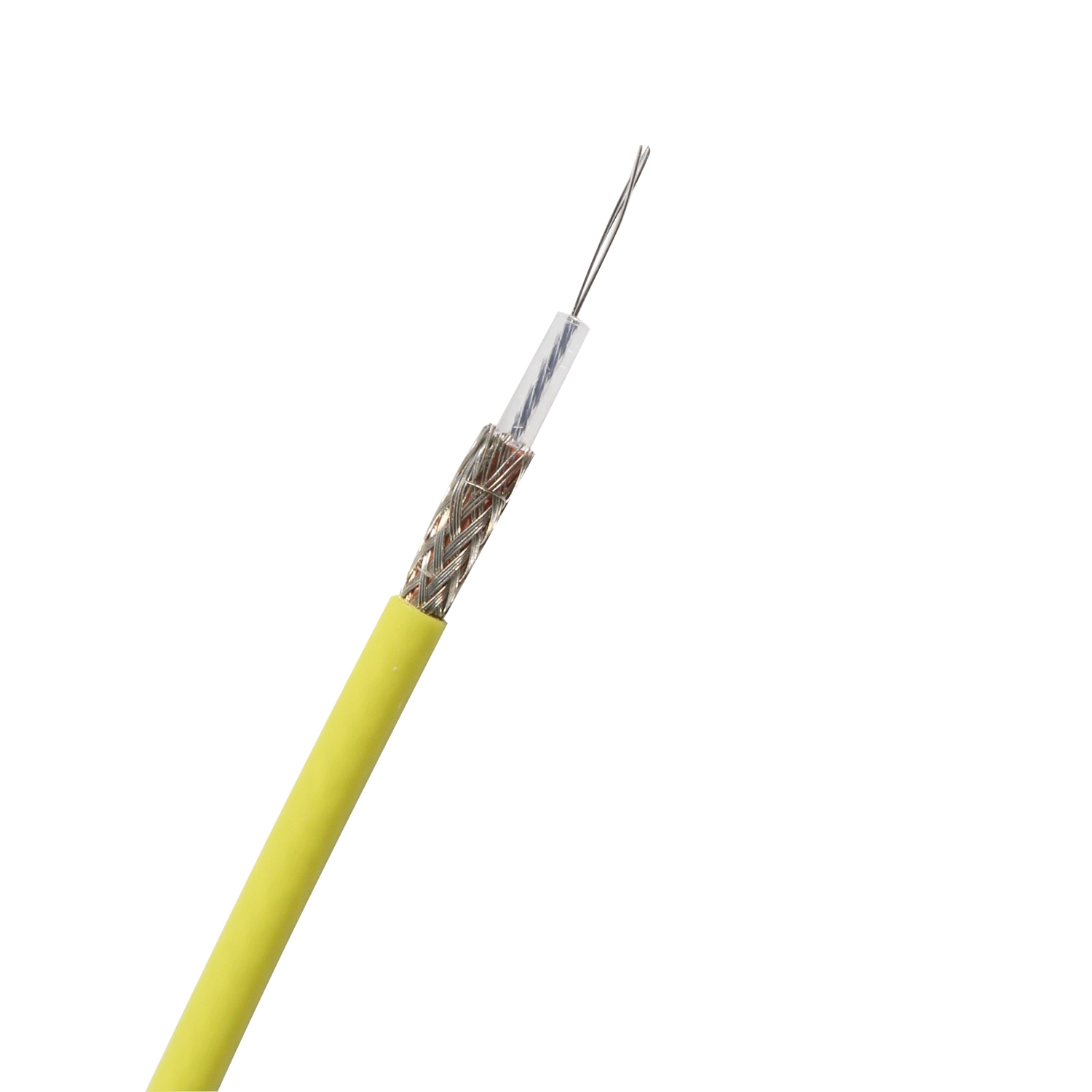

Inner conductor: silver-plated copper dad steel wire
Outer conductor: silver-plated copper
Insulation: PTFE
Jacket: FEP
Executive standard: SJ 20103
Applications and features: Type ofRF coaxial cable for radio communications equipment and other similar high-frequency transmission technology using electronic devices.
Specification

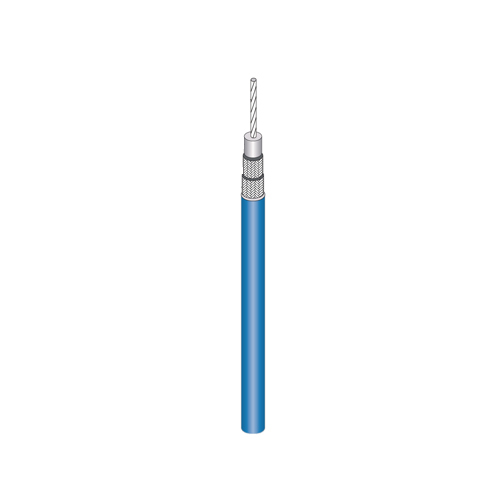

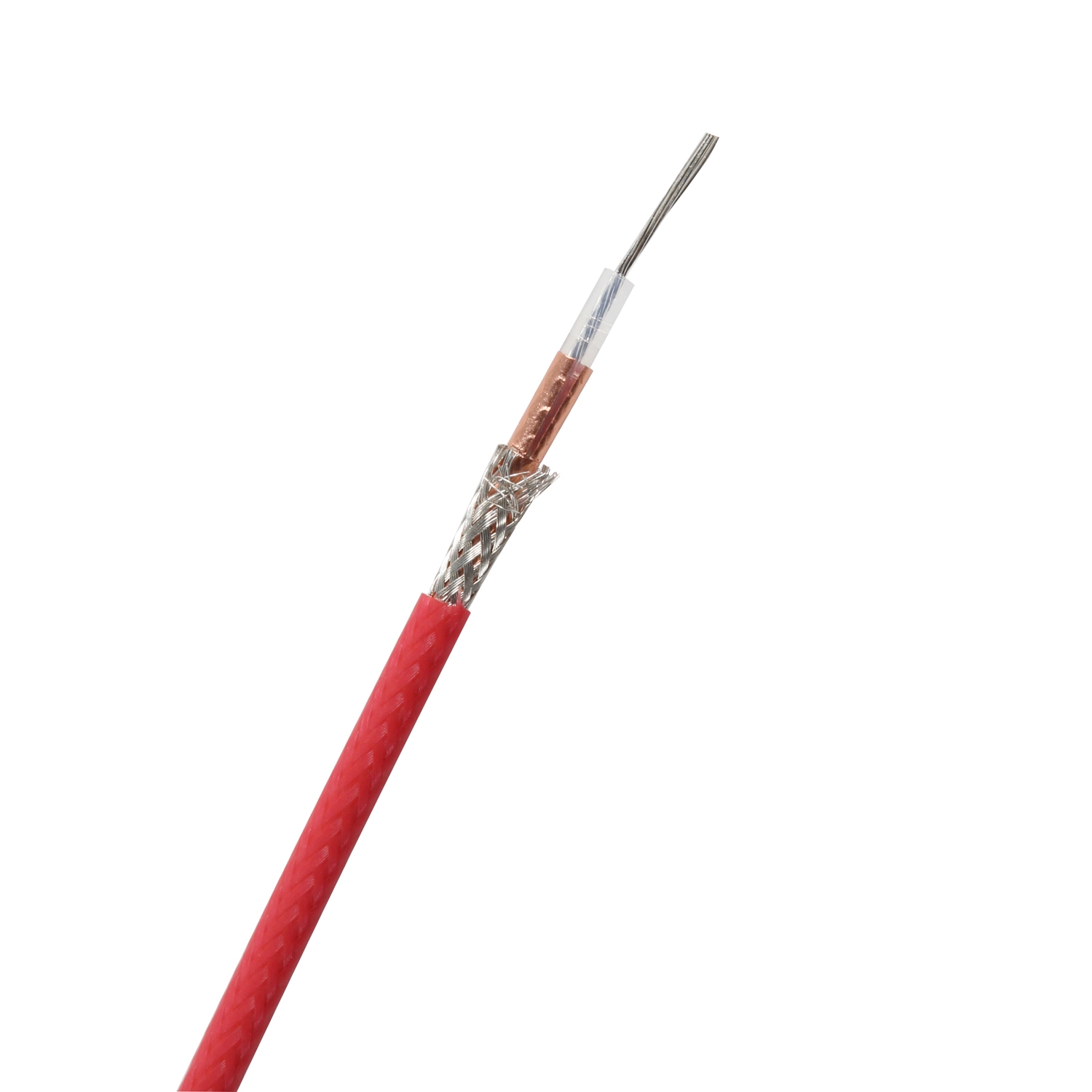

Cable structure and key performance data | ||
Type | SFF-50-2-52 | |
Inner conductor Number/Diameter (mm) | 7/0.17 | |
Nominal insulation OD (mm) | 1.52 | |
Outer conductor ≤ (mm) | 2.45 | |
Nominal jacket OD (mm) | 2.9 | |
Nominal Feature Impedance (Ω) | 50 | |
Attenuation constant ≤ dB/100m | 50MHz | 26.3 |
400MHz | 79.7 | |
3000MHz | 247 | |
Structural Return Loss ≮ db | ≤50MHz | 26 |
101~400MHz | 20 | |
1001~3000MHz | 15 | |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
