Technical Data
Operating temperature range: (-65-165)℃
Inner conductor: silver-plated copper or silver-plated copper clad steel wire
Outer conductor: tinned copper braid outer conductor of the overall dip tin
Insulation: PTFE
Jacket: FEP、PVC or LSZH

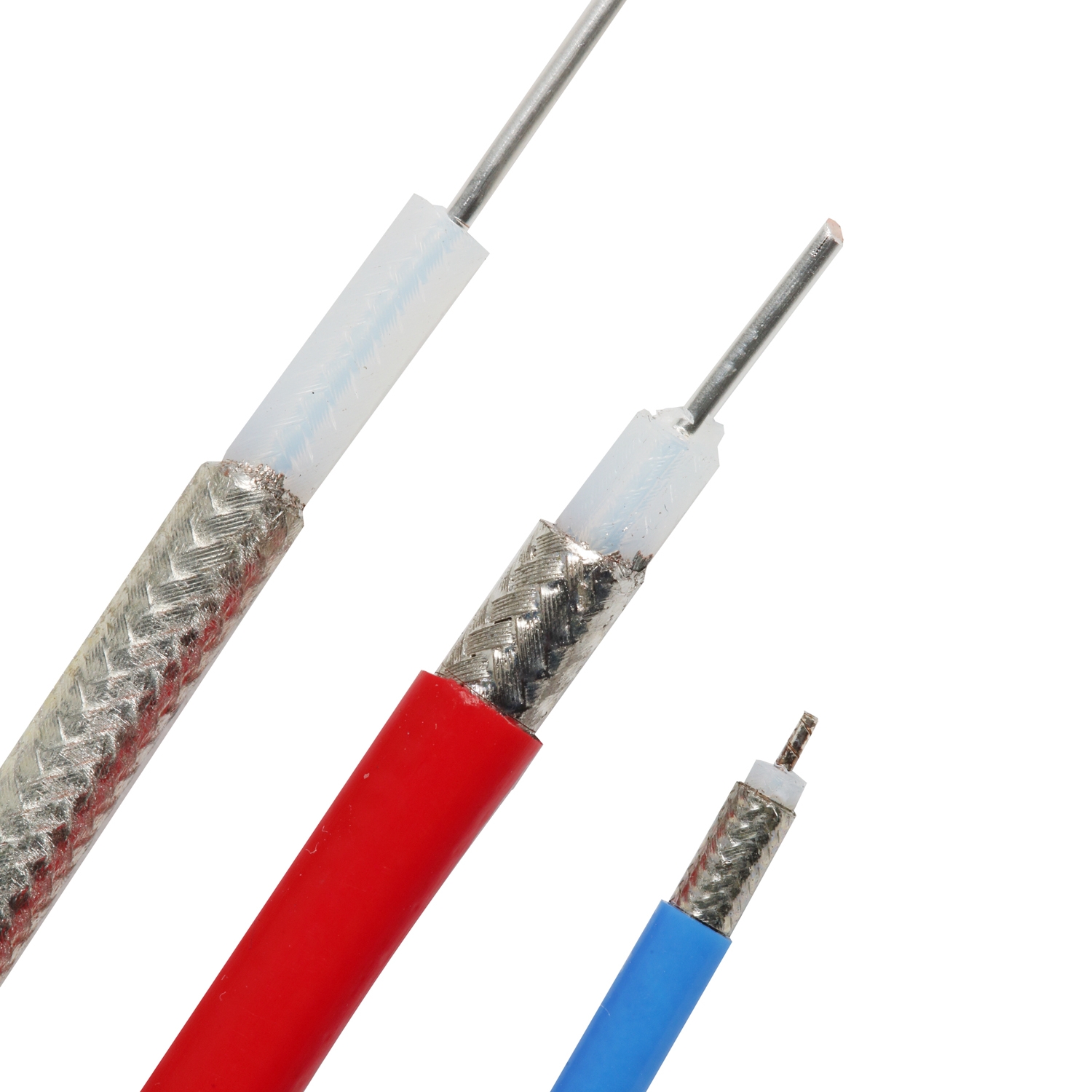

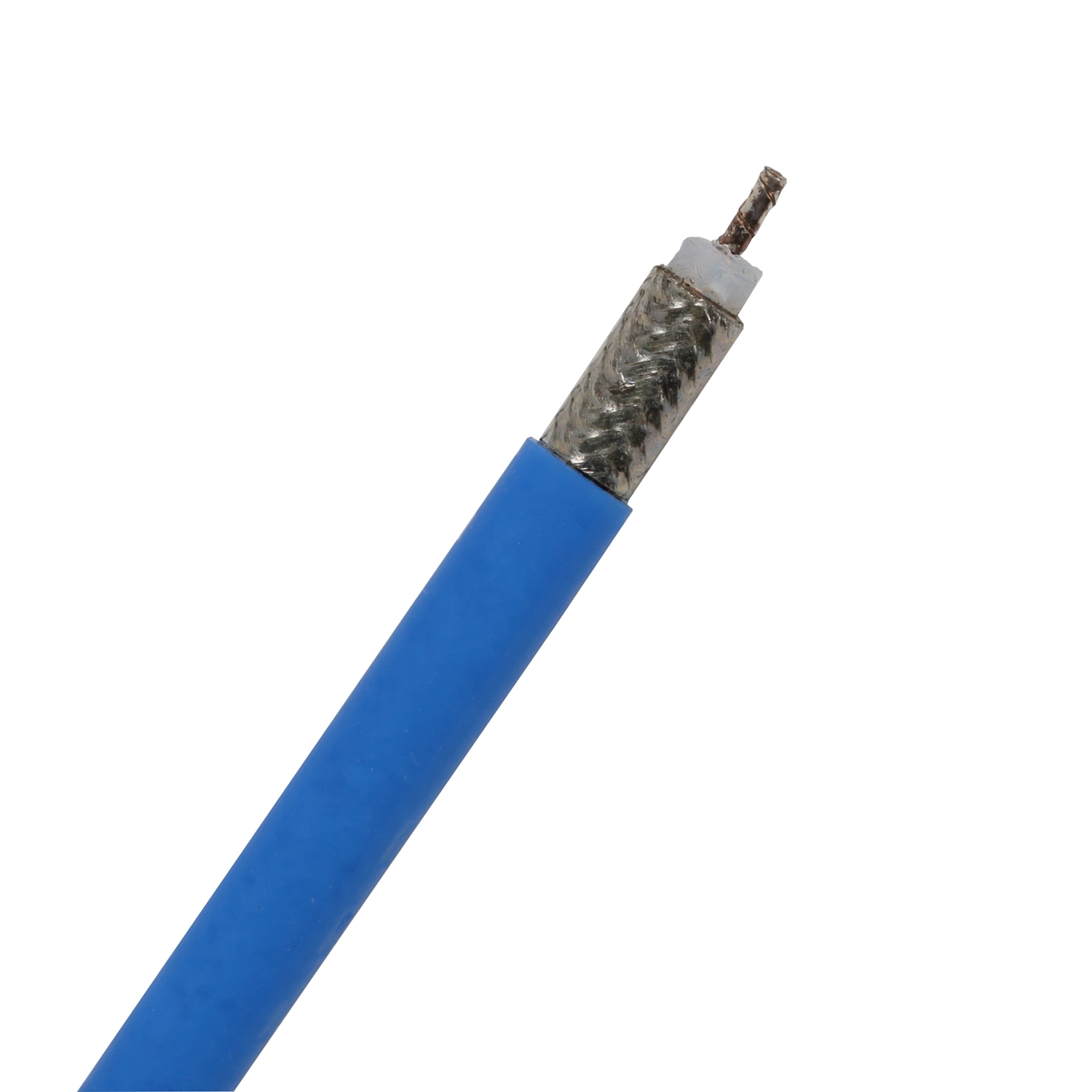

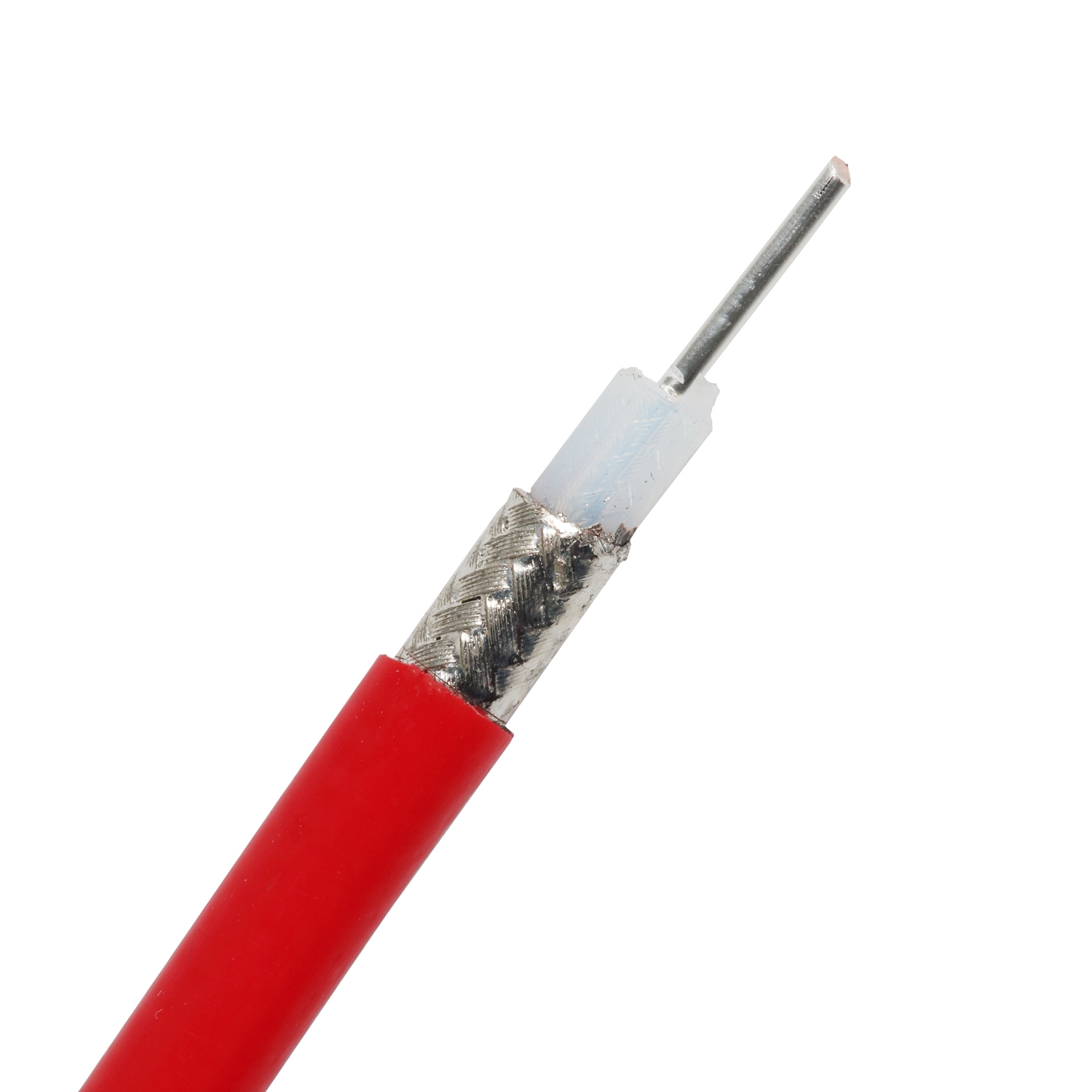

Applications and features: Semi-flexible coaxial cable with good shielding, the use of high frequency, standing wave ratio is small, power, relibility and other characteristics, as apposed to semi-rigid cable with repeated bending function for the black box of internal connections, mobile base station, delay lines, radio equipment and other electronic devices.
Specification
Type | Inner conductor Number/Diamater OD mm | Nominal Insulation OD mm | Nominal diameter of outer conductor mm | Nominal feature impedance mm | Attenution constant ≤dB/m | Return Loss ≮ dB | Maximum bending mandrel diameter mm | Test Voltage kv | |||
0.5GHz | 0.78GHz | 1.87GHz | 0.5GHz | 5GHz | |||||||
SFX-50-2 | SC 1/0.51 | 1.68 | 2.18 | 50 | 0.55 | 0.78 | 1.87 | 28 | 23 | 6 | 3 |
SFX-50-2-1 | SCCS 1/0.51 | 1.68 | 2.18 | ||||||||
SPX-50-3 | SC 1/0.92 | 2.98 | 3.58 | 50 | 0.35 | 0.45 | 1.2 | 30 | 23 | 11 | 5 |
SFX-50-3-1 | SCCS 1/0.92 | 2.98 | 3.58 | ||||||||
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
