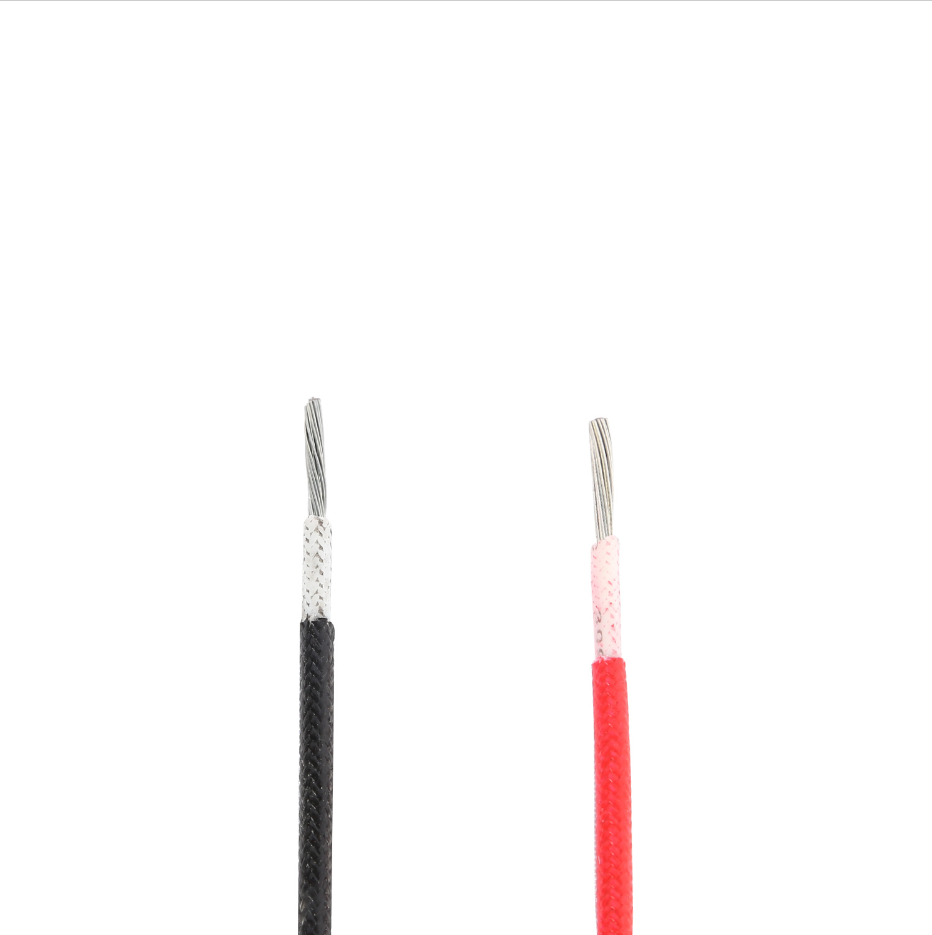

UL3068 Silicone Rubber Insulated and Figerglass Braided Wire

Technical Data
Nominal Voltage: 300V
Temperature Range: -60℃~+150℃
Testing Voltage: 3000V
Conductor: Tinned Copper
Insulation: Silicone Rubber
Sheath: Fiber Glass
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.: E216252
Application: Lead wires for home electric appliances,lighting fixtures , electronic equipment ,sensor and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data

Nominal Voltage: 300V

Temperature Range: -60℃~+150℃

Testing Voltage: 3000V

Conductor: Tinned Copper

Insulation: Silicone Rubber

Sheath: Fiber Glass

Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

UL/CUL Certificate No.: E216252

Application: Lead wires for home electric appliances,lighting fixtures , electronic equipment ,sensor and etc..

Specification

Conductor			Insulation/Sheath
AWG	Conductor Structure NO./mm	Diameter mm	Nom. Thickness mm	Figerglass Thickness mm	Nom. Outer Diameter mm	Max Outer Diameter mm
30	7/0.10	0.30	0.40	0.15	1.4	1.7
28	7/0.12	0.36	0.40	0.15	1.5	1.8
26	7/0.16	0.48	0.40	0.15	1.6	1.9
24	7/0.20	0.60	0.40	0.15	1.7	2.0
22	7/0.25	0.75	0.40	0.15	1.9	2.2
20	7/0.31	0.93	0.40	0.15	2.0	2.3
18	7/0.39	1.17	0.40	0.15	2.3	2.6
16	7/0.49	1.47	0.40	0.20	2.7	3.0

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications

Silicone Rubber Insulated and Figerglass Braided Wire Silicone Rubber Insulated Braided Wire Figerglass Braided Wire
