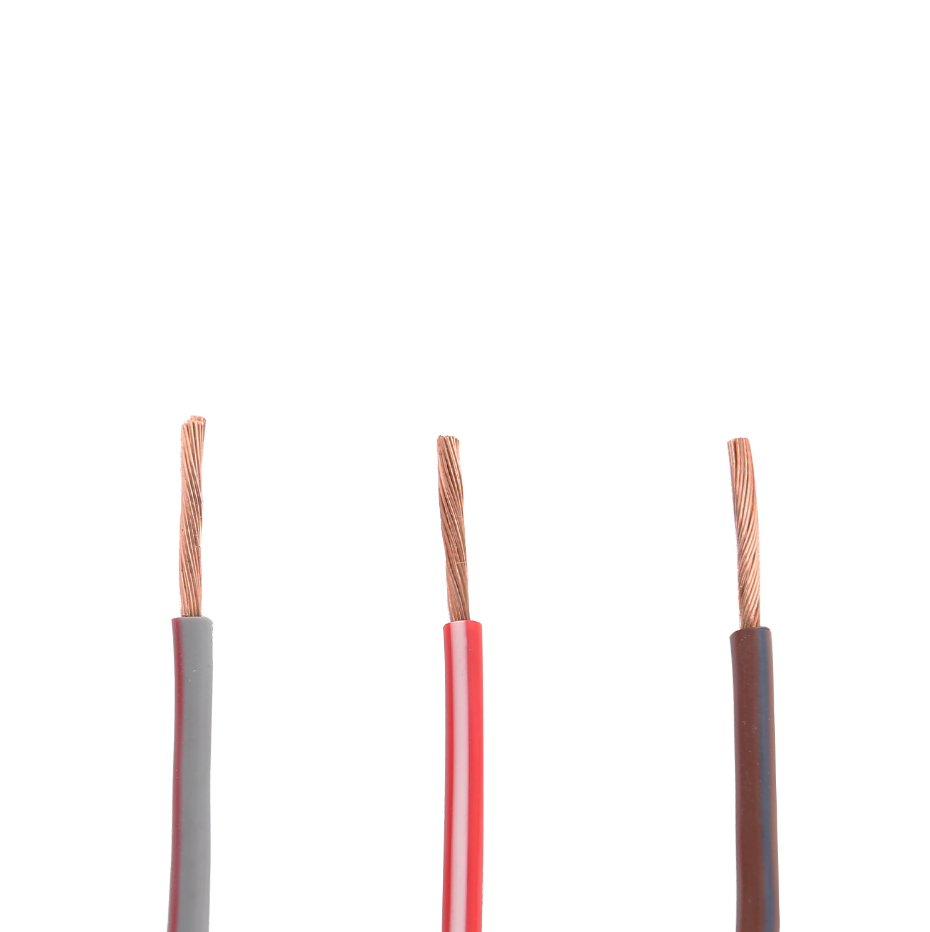

SGT/SGR/SGX General Low-voltage Battery Cable

Technical Data
Nominal Voltage: 60V DC , 25V AC
Temperature Range: SGT 70℃; SGR -40℃~+180℃ ; SGX 125℃
Testing Voltage: 1000V
Conductor: Bare or Tinned Copper
Insulation: STT - PVC ; STR - Silicone Rubber ; STX - XLPE
Standard : SAEJ1127
Application: Used for battery of automotive electrical system.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data

Nominal Voltage: 60V DC , 25V AC

Temperature Range: SGT 70℃; SGR -40℃~+180℃ ; SGX 125℃

Testing Voltage: 1000V

Conductor: Bare or Tinned Copper

Insulation: STT - PVC ; STR - Silicone Rubber; STX - XLPE

Standard : SAEJ1127

Application: Used for battery of automotive electrical system.

Specification

Conductor				Insulation			Max resistance at 20℃ Ω/km
Spec AWG	Section mm²	Conductor construction No./D mm	Diameter mm	Thickness mm	Nom. outer diameter mm	Max. outer diameter mm	Cu core	Tinned-Cu core
6	13	270/0.25	5.4	1.52	8.2	8.5	1.348	1.403
4	19	390/0.25	6.5	1.65	9.8	10.3	0.8481	0.8820
2	32	655/0.25	8.4	1.65	11.5	11.9	0.5335	0.5548
1	40	575/0.30	9.5	1.65	12.5	12.9	0.4230	0.4398
1/0	50	710/0.30	10.5	1.65	13.8	14.3	0.3354	0.3498
2/0	62	495/0.40	11.7	1.65	15.0	15.6	0.2660	0.2766
3/0	81	650/0.40	13.4	1.98	17.4	18.2	0.2110	0.2194
4/0	103	825/0.40	15.2	1.98	19.2	19.8	0.1673	0.1722
