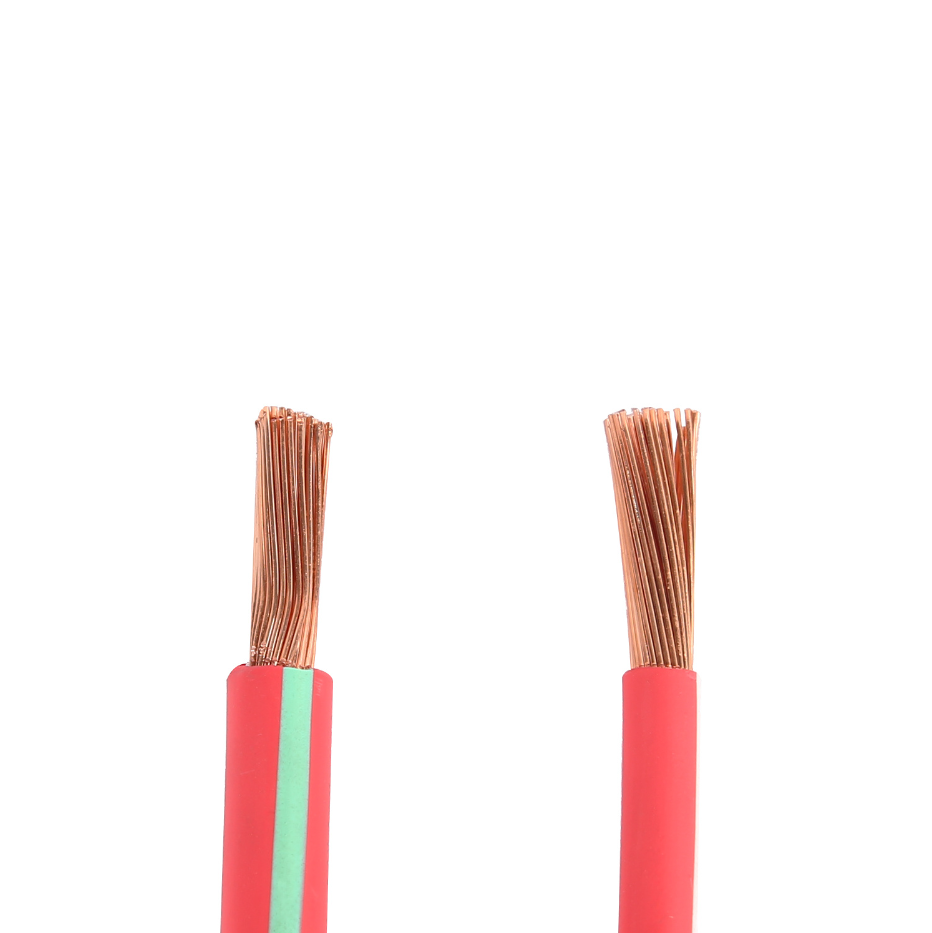

Technical Data
Nominal Voltage: 60V DC, 25V AC
Temperature Range: STT 70℃;STR -40°C ~ +180℃;STX 125℃
Testing Voltage: 1000V
Conductor: Bare or Tinned Copper
Insulation: STT PVC;STR Silicone Rubber;STX XLPE
Standard: SAEJ 1127
Application: Used for battery of automotive electrical system.
Specification
Conductor | Insulation | Max. resistance at 20℃ Ω/km | ||||||
AWG | Cross Section | Conductor Structure | Diameter | Insulation Thickness | Nominal Outer Diameter | Max Outer Diameter | Copper | Tinned Copper |
6 | 13 | 270/0.25 | 5.4 | 1.09 | 7.2 | 7.6 | 1.3480 | 1.4030 |
4 | 19 | 390/0.25 | 6.5 | 1.12 | 8.7 | 9.2 | 0.8481 | 0.8820 |
2 | 32 | 655/0.25 | 8.4 | 1.12 | 10.5 | 10.8 | 0.5335 | 0.5548 |
1 | 40 | 575/0.30 | 9.5 | 1.12 | 11.5 | 11.8 | 0.4230 | 0.4398 |
1/0 | 50 | 710/0.30 | 10.5 | 1.12 | 12.5 | 12.8 | 0.3354 | 0.3498 |
2/0 | 62 | 495/0.40 | 11.7 | 1.12 | 13.9 | 14.3 | 0.2660 | 0.2766 |
3/0 | 81 | 650/0.40 | 13.4 | 1.12 | 15.6 | 16.3 | 0.2110 | 0.2194 |
4/0 | 103 | 825/0.40 | 15.2 | 1.12 | 17.5 | 18.2 | 0.1673 | 0.1722 |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949,CE.
