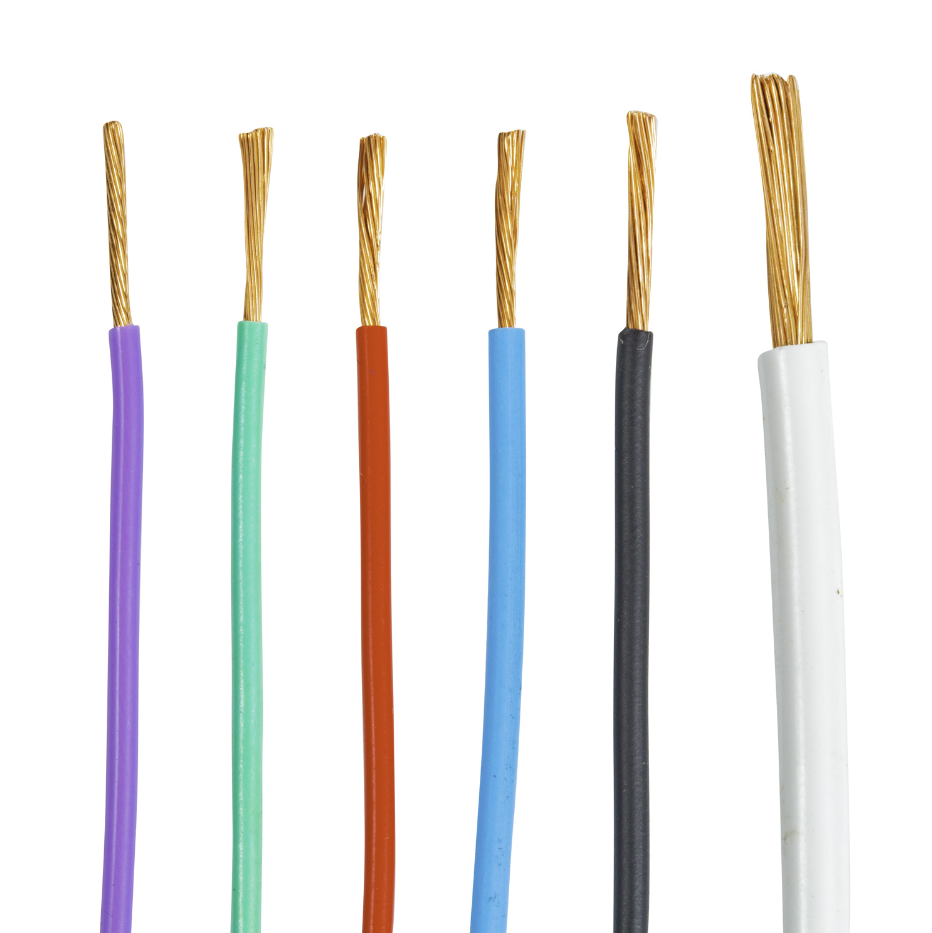

Technical Data
Nominal Voltage: 60V DC , 25V AC
Temperature Range: 70℃
Testing Voltage: 1000V
Conductor: Bare or Tinned Copper
Insulation: PVC
Standard: SAEJ1128
Application: Used for connection in automotive electrical system.
Specification
TXL
Conductor | Insulation | Max resistance at 20℃ Ω/km | ||||||
TXL | ||||||||
Spec AWG | Section mm2 | Conductor construction No./D mm | Diameter mm | Thickness mm | Nom. outer diameter mm | Max. outer diameter mm | Cu core | Tinned-Cu core |
24 | 0.22 | 7/0.20 | 0.60 | 0.40 | 1.3 | 1.5 | 87.60 | 94.20 |
22 | 0.35 | 7/0.26 | 0.78 | 0.40 | 1.5 | 1.7 | 55.40 | 89.40 |
20 | 0.5 | 7/0.31 | 0.93 | 0.40 | 1.7 | 1.9 | 34.60 | 36.70 |
18 | 0.8 | 19/0.23 | 1.15 | 0.40 | 1.9 | 2.1 | 21.80 | 23.20 |
16 | 1 | 19/0.28 | 1.40 | 0.40 | 2.1 | 2.3 | 13.70 | 14.60 |
14 | 2 | 19/0.36 | 1.80 | 0.40 | 2.5 | 2.7 | 8.62 | 8.96 |
12 | 3 | 19/0.45 | 2.25 | 0.45 | 3.1 | 3.3 | 5.43 | 5.64 |
10 | 5 | 19/0.57 | 2.85 | 0.50 | 3.8 | 4.0 | 3.41 | 3.55 |
8 | 8 | 19/0.71 | 3.55 | 0.55 | 4.6 | 4.8 | 2.14 | 2.23 |
GXL
Conductor | Insulation | Max resistance at 20℃ Ω/km | ||||||
GXL | ||||||||
Spec AWG | Section mm2 | Conductor construction No./D mm | Diameter mm | Thickness mm | Nom. outer diameter mm | Max. outer diameter mm | Cu core | Tinned-Cu core |
20 | 0.5 | 7/0.31 | 0.93 | 0.58 | 2.1 | 2.3 | 34.6 | 36.7 |
18 | 0.8 | 19/0.23 | 1.15 | 0.58 | 2.3 | 2.5 | 21.8 | 23.2 |
16 | 1 | 19/0.28 | 1.4 | 0.58 | 2.5 | 2.8 | 13.7 | 14.6 |
14 | 2 | 19/0.36 | 1.8 | 0.58 | 2.9 | 3.1 | 8.62 | 8.96 |
12 | 3 | 19/0.45 | 2.25 | 0.66 | 3.4 | 3.7 | 5.43 | 5.64 |
10 | 5 | 19/0.57 | 2.85 | 0.79 | 4.3 | 4.6 | 3.409 | 3.546 |
8 | 8 | 19/0.71 | 3.55 | 0.94 | 5.5 | 5.9 | 2.144 | 2.23 |
SXL
Conductor | Insulation | Max resistance at 20℃ Ω/km | ||||||
SXL | ||||||||
Spec AWG | Section mm2 | Conductor construction No./D mm | Diameter mm | Thickness mm | Nom. outer diameter mm | Max. outer diameter mm | Cu core | Tinned-Cu core |
20 | 0.5 | 7/0.31 | 0.93 | 0.74 | 2.3 | 2.7 | 34.6 | 36.7 |
18 | 0.8 | 19/0.23 | 1.15 | 0.76 | 2.6 | 2.9 | 21.8 | 23.2 |
16 | 1 | 19/0.28 | 1.4 | 0.81 | 3 | 3.3 | 13.7 | 14.6 |
14 | 2 | 19/0.36 | 1.8 | 0.89 | 3.5 | 3.8 | 8.62 | 8.96 |
12 | 3 | 19/0.45 | 2.25 | 0.94 | 4.1 | 4.5 | 5.43 | 5.64 |
10 | 5 | 19/0.57 | 2.85 | 1.04 | 4.9 | 5.2 | 3.409 | 3.546 |
8 | 8 | 19/0.71 | 3.55 | 1.08 | 5.7 | 6.1 | 2.144 | 2.23 |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
