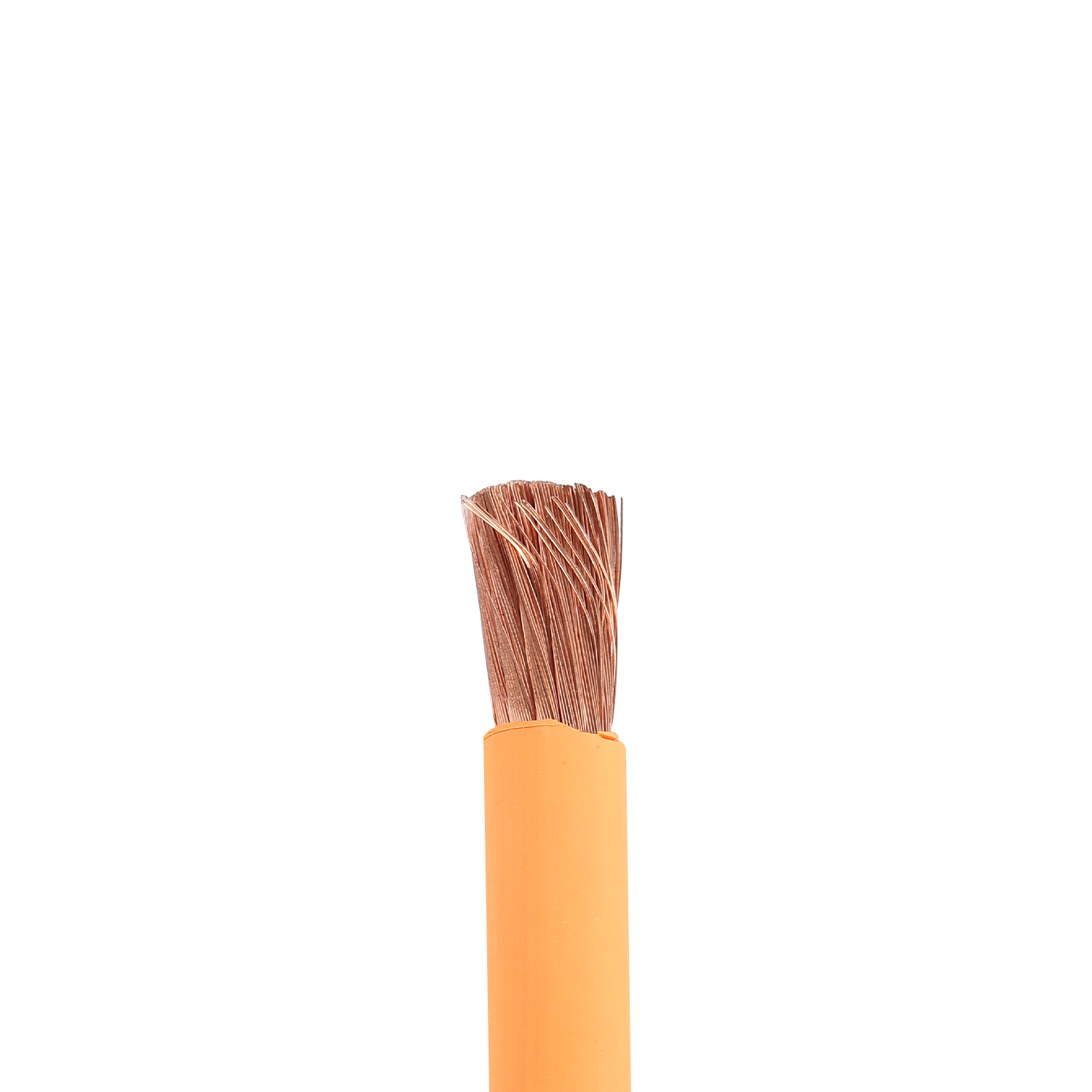

Single Core High-voltage Unshielded Cable Meeting GMW15626 Requirements

Technical Data
Type: CU-R2PVC(R3PVC)-HV,R2PP,R2EVA;R3XLPO,R3PUR,R3TPE;R4XLPO;R6SIR-HV
Type: CU-H2PVC(H3PVC)-HV,H2PP,H2EVA;H3XLPO,H3PUR,H3TPE;H4XLPO;H6SIR-HV
Nominal Voltage: 600V
Temperature Range: -40℃ ~ +105/125/150/200℃
Conductor: Bare Copper
Insulation: 105-PVC/PP/EVA; 125-PVC/PUR/TPE/XLPO; 150-XLPO; 200-SIR
Standard: GMW15626
Application: Internal connection wiring for HV circuits in electric vehicles.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data

Type: CU-R2PVC(R3PVC)-HV,R2PP,R2EVA; R3XLPO,R3PUR,R3TPE; R4XLPO; R6SIR-HV

Type: CU-H2PVC(H3PVC)-HV,H2PP,H2EVA; H3XLPO,H3PUR,H3TPE; H4XLPO; H6SIR-HV

Nominal Voltage: 600V

Temperature Range: -40℃ ~ +105/125/150/200℃

Conductor: Bare Copper

Insulation: 105-PVC/PP/EVA; 125-PVC/PUR/TPE/XLPO; 150-XLPO; 200-SIR

Standard: GMW15626

Application: Internal connection wiring for HV circuits in electric vehicles.

Specification

Conductor			Insulation				Max. resistance at 20℃ Ω/km
Nominal Cross Section mm²	Conductor Structure No./mm	Conductor Diameter max. mm	Thin-wall		Thick-wall
			Thickness min. mm	Outer Diameter mm	Thickness min. mm	Outer Diameter mm
3	160/0.15	2.4	0.32	3.4	0.56	4.1	6.15
	44/0.30
4	224/0.15	2.8	0.32	3.7	0.64	4.4	4.71
	56/0.30
5	250/0.15	3.1	0.32	4.2	0.64	4.9	3.94
	65/0.32
6	320/0.15	3.4	0.32	4.3	0.64	5	3.14
	84/0.30
8	240/0.20	4.3	0.32	5	0.64	5.9	2.38
	62/0.40
10	320/0.20	4.5	0.48	6	0.8	6.5	1.82
	80/0.40
12	380/0.20	5.4	0.48	6.5	0.8	7.4	1.52
	96/0.40
16	512/0.20	6.3	0.52	7.2	0.8	8.3	1.16
	126/0.40
20	610/0.20	6.9	0.52	7.8	0.88	9.1	0.955
	152/0.40
25	790/0.20	7.8	0.52	8.7	1.04	10.4	0.743
	196/0.40
30	900/0.20	8.3	0.64	9.6	1.04	10.9	0.647
	224/0.40
35	1070/0.20	9	0.64	10.4	1.04	11.6	0.527
	276/0.40
40	1200/0.20	9.6	0.71	11.1	1.12	12.4	0.473
	308/0.40
50	1600/0.20	10.5	0.71	12.2	1.2	13.5	0.368
	396/0.40
60	1200/0.25	11.6	0.8	13.3	1.2	14.6	0.315
	296/0.50
70	1427/0.25	12.5	0.8	14.4	1.2	15.5	0.259
	360/0.50
95	1936/0.25	14.8	0.9	16.7	1.28	18	0.196
	475/0.50
120	2450/0.25	16.5	/	/	1.28	19.7	0.153
	608/0.50
