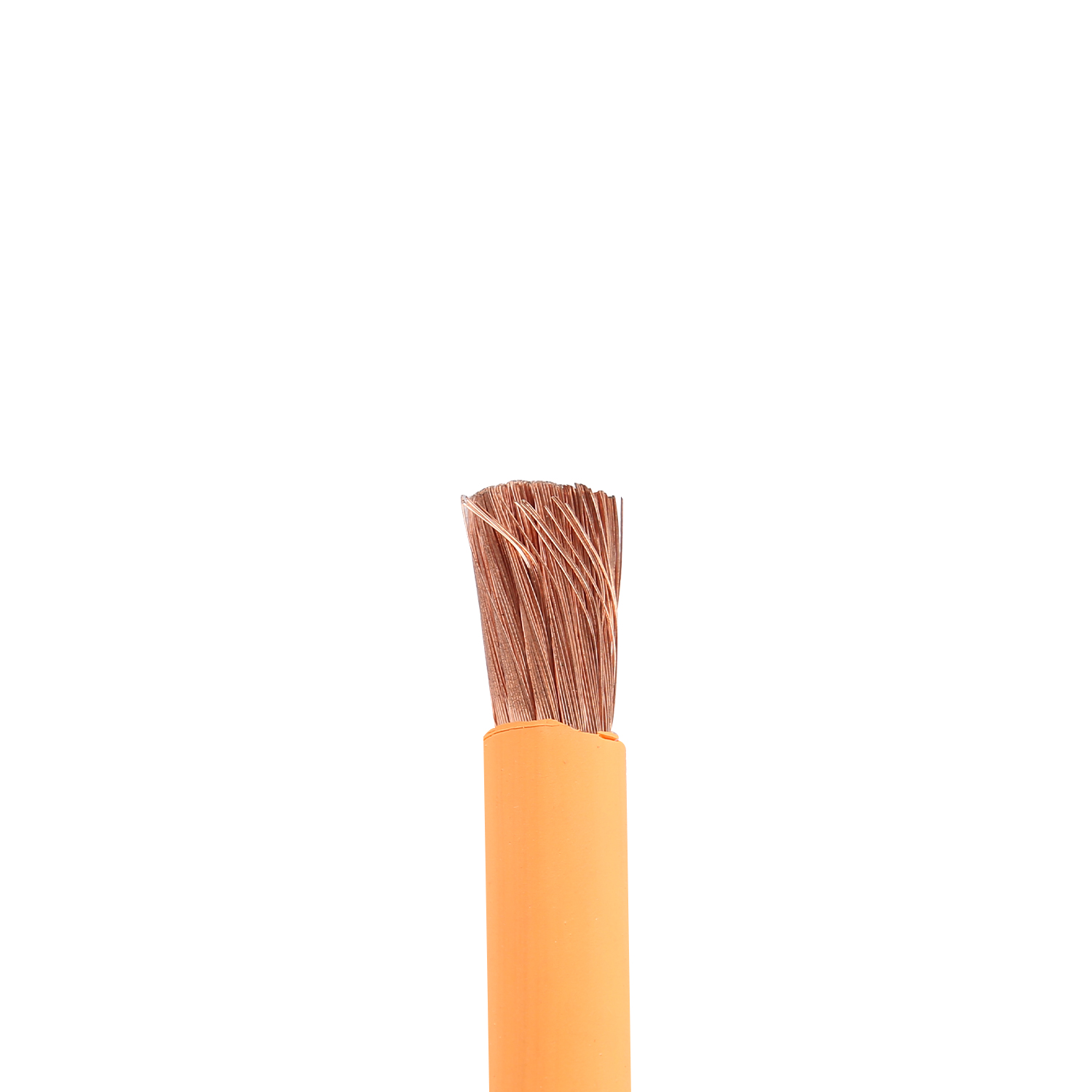

Technical Data
Type: FHLY,FHL9Y,FHL4G,FHL11Y,FHL31Y,FHL2X,FHL91X,FHL2G
Nominal Voltage: 600V
Temperature Range: -40℃ ~ +105/125/150/200℃
Conductor: Bare Copper
Insulation:
105 - PVC/PP/EVA; 125 - PVC/PUR/TPE/XLPO;
150 - XLPO; 200 - SIR
Standard: LV216-1
Application: Internal connection wiring for HV circuits in electric vehicles.
Specification
Conductor | Insulation | Max. Resistance at 20℃ | ||||
Nominal Cross Section mm² | Conductor Structure | Conductor Structure | Conductor Diameter | Thickness | Outer Diameter | |
0.35 | 7/0.25 | 19/0.15 | 0.9 | 0.48 | 2.1 | 52 |
12/0.20 | 45/0.10 | |||||
0.5 | 7/0.32 | 28/0.15 | 1.1 | 0.48 | 2.3 | 37.1 |
16/0.20 | 64/0.10 | |||||
0.75 | 19/0.23 | 42/0.15 | 1.2 | 0.48 | 2.5 | 24.7 |
24/0.20 | 96/0.10 | |||||
1 | 19/0.26 | 54/0.15 | 1.5 | 0.48 | 2.7 | 18.5 |
32/0.20 | 126/0.10 | |||||
1.5 | 19/0.31 | 76/0.15 | 1.8 | 0.48 | 3.0 | 12.7 |
30/0.25 | 192/0.10 | |||||
2.5 | 19/0.40 | 140/0.15 | 2.2 | 0.56 | 3.6 | 7.6 |
50/0.25 | 320/0.10 | |||||
4 | 120/0.20 | / | 2.8 | 0.64 | 4.4 | 4.71 |
56/0.30 | ||||||
6 | 183/0.20 | / | 3.4 | 0.64 | 5.0 | 3.14 |
84/0.30 | ||||||
10 | 305/0.20 | / | 4.5 | 0.8 | 6.5 | 1.82 |
80/0.40 | ||||||
16 | 500/0.20 | / | 5.8 | 0.8 | 8.8 | 1.16 |
126/0.40 | ||||||
25 | 790/0.20 | / | 7.2 | 1.04 | 10.0 | 0.743 |
196/0.40 | ||||||
35 | 1090/0.20 | / | 8.5 | 1.04 | 11.0 | 0.527 |
276/0.40 | ||||||
50 | 1600/0.20 | / | 10.5 | 1.2 | 13.2 | 0.368 |
396/0.40 | ||||||
70 | 2175/0.20 | / | 12.5 | 1.2 | 15.1 | 0.259 |
360/0.50 | ||||||
95 | 3000/0.20 | / | 14.8 | 1.28 | 17.4 | 0.196 |
47/0.50 | ||||||
120 | 3700/0.20 | / | 16.5 | 1.28 | 19.5 | 0.153 |
608/0.50 | ||||||
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
