Technical Data
Temperature Range: 105℃

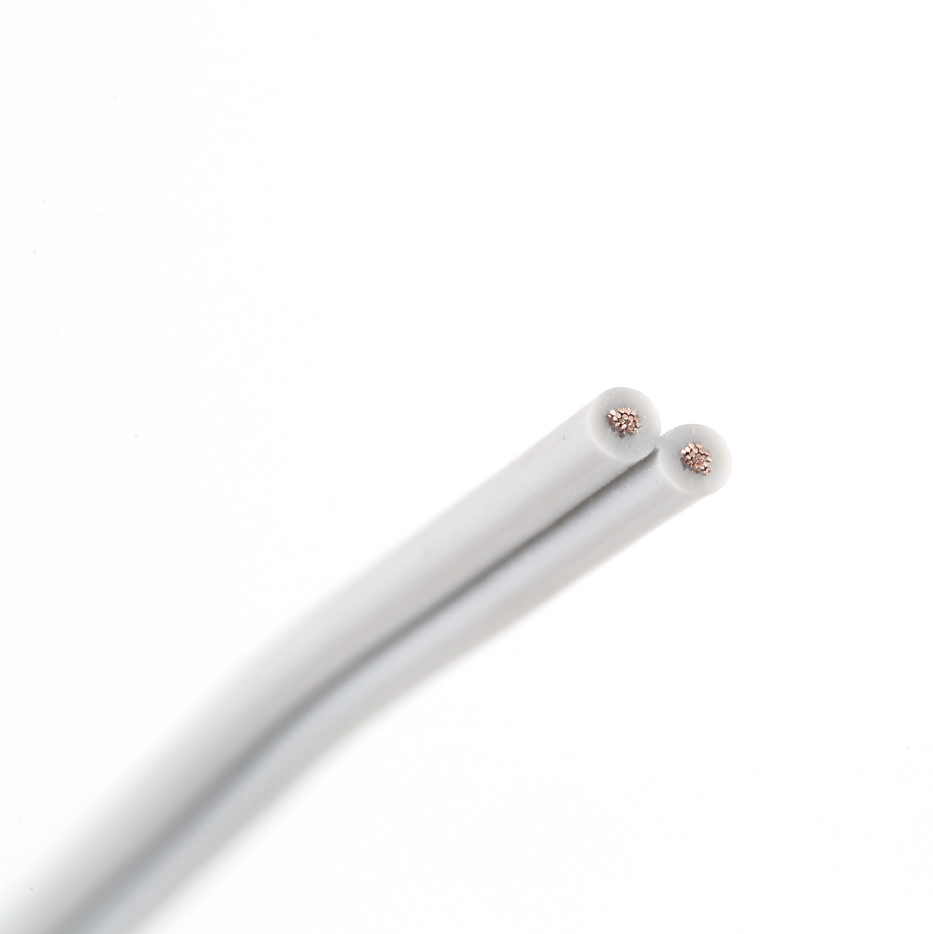

Conductor: 1.0mm² Strand, Bare Copper
Insulation: PVC
Standard: VW60306
Application: For internal wiring of automotive meters' circuits and electrical equipment in high-temperature area.
Specification
Nominal Cross Section | Conductor structure | Min. Insulation Thickness | Cable Outer Diameter | Reference Weight | Max. resisitence at 20℃ Ω/km | ||
Min. mm | Max. mm | Copper | Tinned Copper | ||||
2×1.0 | 2×32/0.20 | 0.44 | 2.4×4.8 | 2.7×5.4 | 29 | 18.3 | / |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
