Technical Data

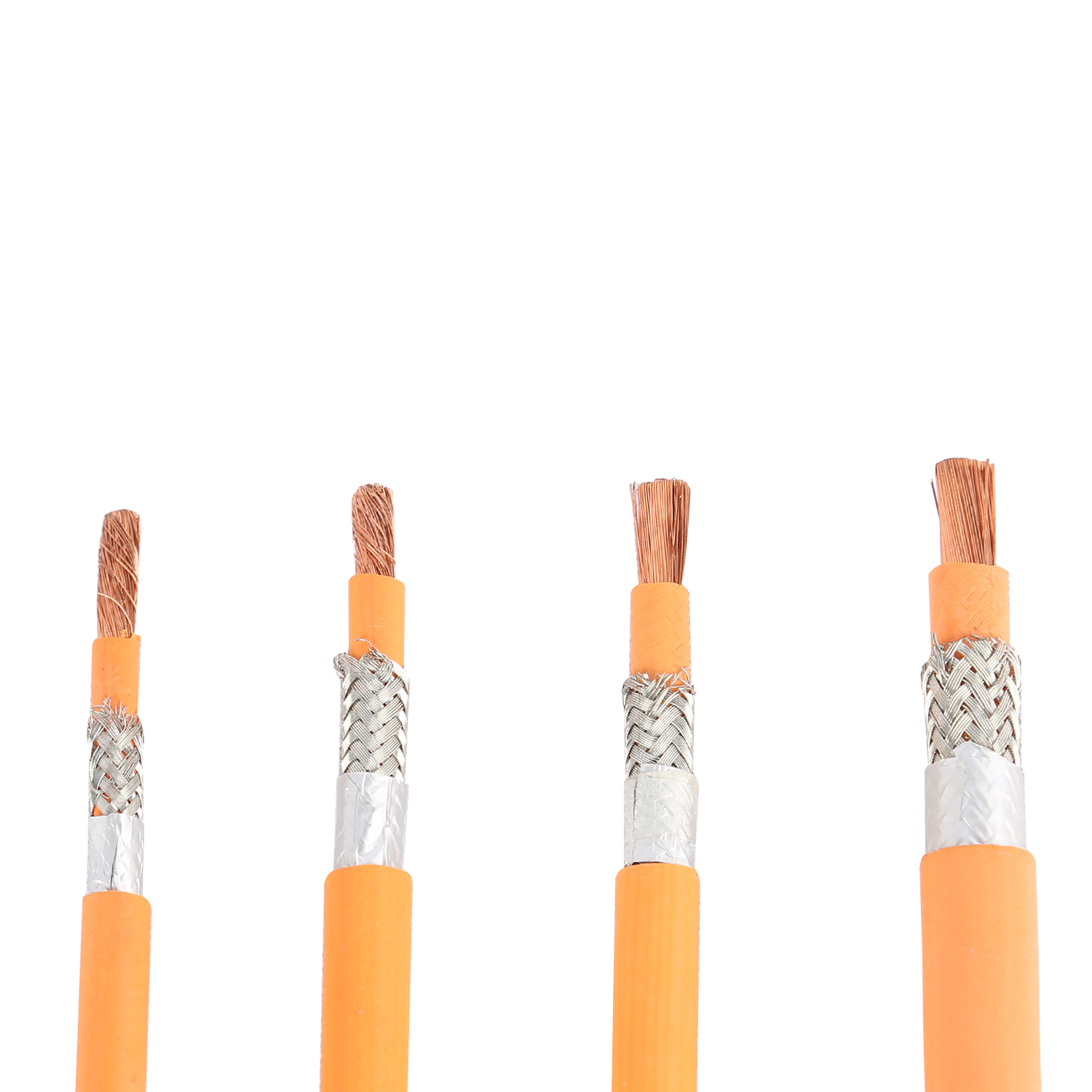

Type: FHLRYCBY,FHLR9YCB9Y,FHLR4GCB4G,FHLR11YCB11Y,FHLR31YCB31Y
Type: FHLR2XCB2X,FHLR91XCB91X,FHLR2GCB2G
Nominal Voltage: 600V
Temperature Range: -40℃ ~ +105/125/150/200℃
Conductor: Bare Copper
Insulation/Sheath:
105 - PVC/PP/EVA; 125 - PVC/PUR/TPE/XLPO;
150 - XLPO; 200 - SIR
Standard: LV216-2
Application: Internal connection wiring for HV circuits in electric vehicles.
Specification
Conductor | Insulation | AL Foil Overlap Rate % | Shield Layer | AL Foil Overlap Rate % | Sheath | Max. Resistance at 20℃ Ω/km | ||||
| Nominal Cross Section mm² | Conductor Structure NO./mm | Diameter mm | Min. Thickness mm | Outer Diameter mm | Conductor Diameter mm | Min. Thickness mm | Outer Diameter | |||
6 | 84/0.30 | 3.4 | 0.32 | 4.3 | 20 | 0.16 | 20 | 0.46 | 6.5 | 3.14 |
183/0.20 | ||||||||||
10 | 80/0.40 | 4.5 | 0.48 | 6 | 0.16 | 0.7 | 8.8 | 1.82 | ||
320/0.20 | ||||||||||
12 | 196/0.40 | 5.4 | 0.48 | 6.5 | 0.16 | 0.7 | 9.5 | 1.52 | ||
380/0.20 | ||||||||||
16 | 126/0.40 | 5.8 | 0.52 | 7.2 | 0.16 | 0.7 | 10.2 | 1.16 | ||
512/0.20 | ||||||||||
20 | 152/0.40 | 6.9 | 0.52 | 7.8 | 0.16 | 0.75 | 11 | 0.955 | ||
610/0.20 | ||||||||||
25 | 196/0.40 | 7.2 | 0.64 | 8.8 | 0.21 | 0.75 | 12.2 | 0.743 | ||
790/0.20 | ||||||||||
30 | 224/0.40 | 8.3 | 0.64 | 9.6 | 0.21 | 0.75 | 13.4 | 0.647 | ||
900/0.20 | ||||||||||
35 | 276/0.40 | 8.5 | 0.64 | 10.5 | 0.21 | 0.8 | 14.4 | 0.527 | ||
1070/0.20 | ||||||||||
40 | 308/0.40 | 9.6 | 0.71 | 11.1 | 0.21 | 0.8 | 15 | 0.473 | ||
1200/0.20 | ||||||||||
50 | 395/0.40 | 10.5 | 0.71 | 12.2 | 0.21 | 0.8 | 15.8 | 0.368 | ||
1600/0.20 | ||||||||||
70 | 360/0.50 | 12.5 | 0.80 | 14.4 | 0.21 | 0.9 | 18.2 | 0.259 | ||
2175/0.20 | ||||||||||
95 | 475/0.50 | 14.8 | 0.90 | 17.2 | 0.26 | 0.92 | 20.9 | 0.196 | ||
3000/0.20 | ||||||||||
120 | 608/0.50 | 16.5 | 1.28 | 19 | 0.26 | 1.16 | 23 | 0.153 | ||
3700/0.20 | ||||||||||
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
