Technical Data
Type: FHLRYCBY,FHLR9YCB9Y,FHLR4GCB4G,FHLR11YCB11Y,FHLR31YCB31Y
Type: FHLR2XCB2X,FHLR91XCB91X,FHLR2GCB2G
Nominal Voltage: 600V
Temperature Range: -40℃ ~ +105/125/150/200℃
Conductor: Bare Copper
Insulation/Sheath:
105 - PVC/PP/EVA; 125 - PVC/PUR/TPE/XLPO;
150 - XLPO; 200 - SIR
Standard: LV216-2

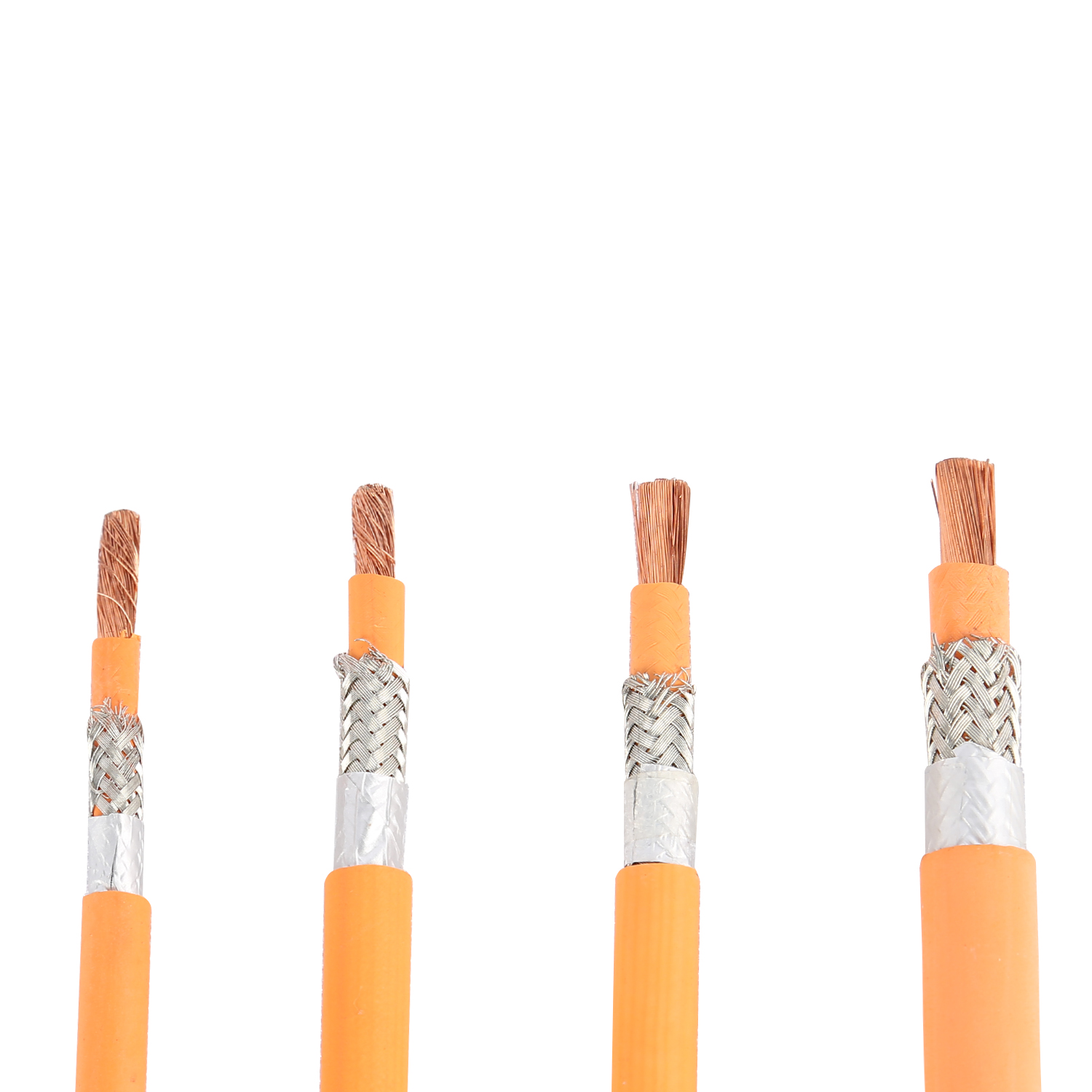

Application: Internal connection wiring for HV circuits in electric vehicles.
Specification
Conductor | Insulation | AL Foil Overlap Rate % | Shield Layer | Sheath | Max. resistance at 20℃ Ω/km | ||||
| Nominal Cross Section mm2 | Conductor Structure | Diameter | Min.Thickness | Outer Diameter | Conductor Diameter mm | Min. Thickness | Outer Diameter mm | ||
2X1.5 | 19/0.32 | 1.7 | 0.22 | 2.4 | 20 | 6.5 | 0.76 | 8.5 | 13.2 |
3X1.5 | 30/0.26 | 1.7 | 0.22 | 2.4 | 6.9 | 0.76 | 9.1 | 13.2 | |
4X1.5 | 19/0.32 | 1.7 | 0.22 | 2.4 | 7.5 | 0.76 | 9.7 | 13.2 | |
2X2.0 | 40/0.26 | 2 | 0.24 | 2.8 | 7.4 | 0.76 | 9.7 | 9.7 | |
3X2.0 | 19/0.38 | 2 | 0.24 | 2.8 | 7.8 | 0.76 | 10.1 | 9.7 | |
3X2.5 | 19/0.41 | 2.2 | 0.24 | 3 | 8.1 | 0.76 | 10.4 | 7.8 | |
4X2.5 | 50/0.26 | 2.2 | 0.24 | 3 | 8.8 | 0.76 | 11.1 | 7.8 | |
5X2.5 | 50/0.26 | 2.2 | 0.24 | 3 | 9.6 | 0.76 | 12.1 | 7.8 | |
2X3.0 | 19/0.47 | 2.4 | 0.28 | 3.4 | 8.6 | 0.76 | 10.9 | 6.3 | |
3X3.0 | 44/0.31 | 2.4 | 0.28 | 3.4 | 9.1 | 0.76 | 11.6 | 6.3 | |
5X3.0 | 44/0.31 | 2.4 | 0.28 | 3.4 | 11.3 | 0.9 | 13.9 | 6.3 | |
2X4.0 | 56/0.31 | 2.8 | 0.28 | 3.7 | 9 | 0.76 | 11.3 | 4.8 | |
4X4.0 | 56/0.31 | 2.8 | 0.28 | 3.7 | 10.7 | 0.82 | 13.3 | 4.8 | |
5X4.0 | 56/0.31 | 2.8 | 0.28 | 3.7 | 11.9 | 0.9 | 14.5 | 4.8 | |
2X5.0 | 70/0.31 | 3.1 | 0.28 | 4.2 | 10.3 | 0.82 | 12.7 | 4 | |
3X5.0 | 70/0.31 | 3.1 | 0.28 | 4.2 | 11.2 | 0.9 | 13.8 | 4 | |
5X5.0 | 70/0.31 | 3.1 | 0.28 | 4.2 | 13.4 | 0.9 | 16.1 | 4 | |
2X6.0 | 84/0.31 | 3.4 | 0.28 | 4.3 | 10.4 | 0.82 | 12.8 | 3.2 | |
3X6.0 | 84/0.31 | 3.4 | 0.28 | 4.3 | 11.4 | 0.9 | 14.1 | 3.2 | |
5X6.0 | 84/0.31 | 3.4 | 0.28 | 4.3 | 13.5 | 0.9 | 16.3 | 3.2 | |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
Company Introduction
Jiangyin Yuanda Electrical Material Co., Ltd. is located in Jiangyin, the most developed city in Jiangsu Province ,China. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique location and convenient transportation could be your ideal business choice.
Our main products include:
A. Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ;
B. RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G , smart car and etc. for communication ;
C. UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ;
D. Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ;
E. Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc..
Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE and CCC.
Especially our aluminum conductor cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.
