Technical Data
Temperature Range: 105℃

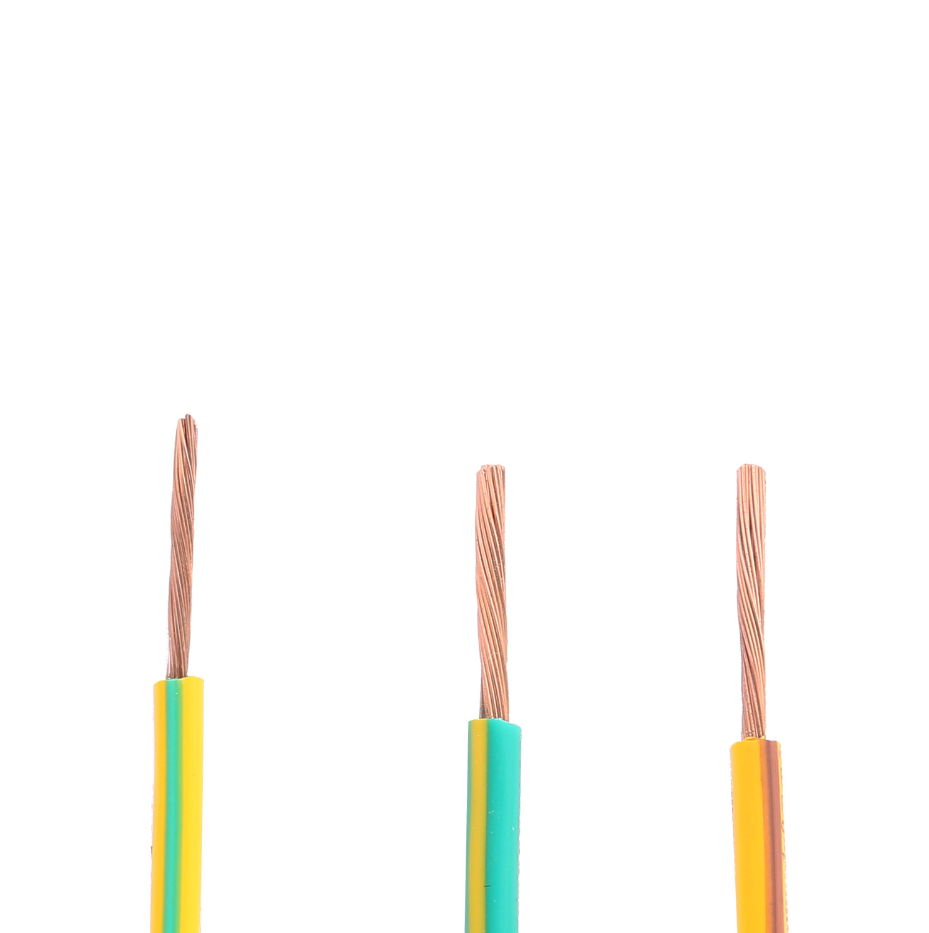

Conductor: 0.5mm² Strand, Bare Copper
Insulation: PVC
Sheath: PVC
Standard: VW60306
Application: For internal wiring of automotive meters' circuits and electrical equipment in high-temperature area.
Specification
Nominal Cross Section | Conductor structure | Min. Insulation Thickness | Min. Sheath Thickness | Cable Outer Diameter | Reference Weight | Max. resisitence at 20℃ Ω/km | ||
Min. mm | Max. mm | Copper | Tinned Copper | |||||
0.5 | 16/0.2 | 0.44 | 0.33 | 3.1 | 3.4 | 16 | 37.0 | / |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
