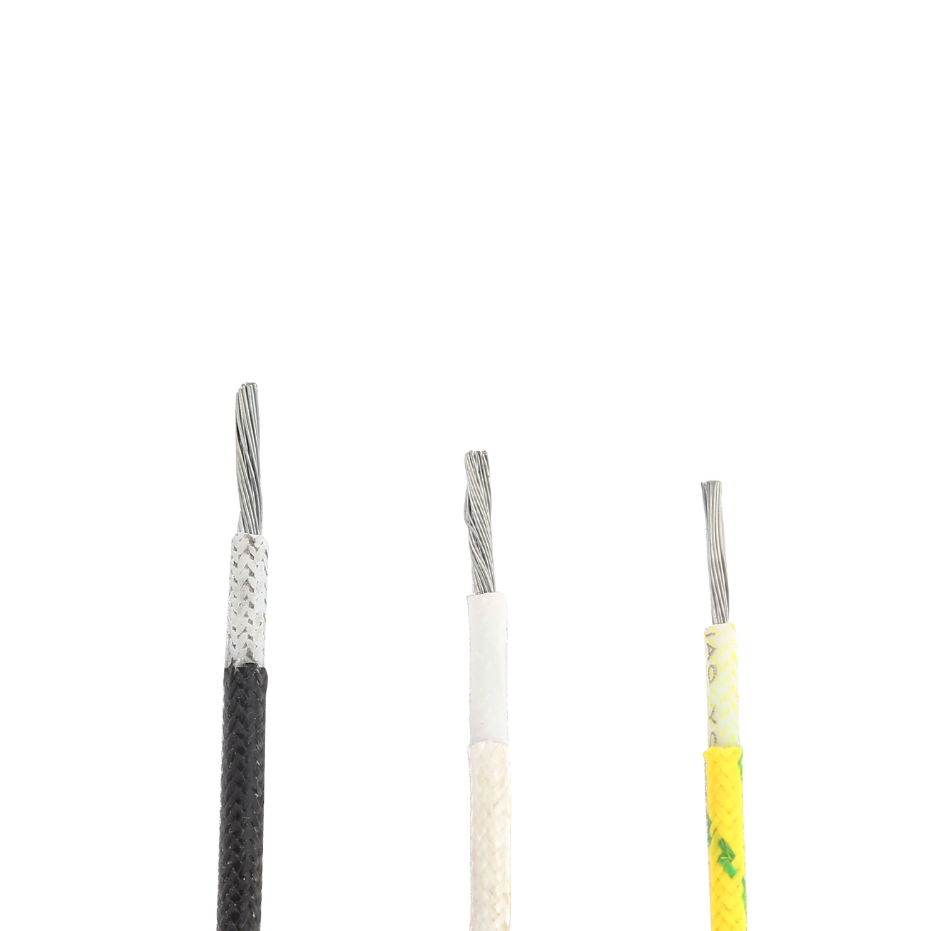

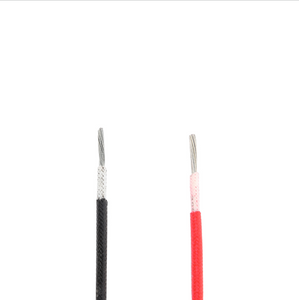

UL3069 Silicone Rubber Insulated and Figerglass Braided Wire

Technical Data
Nominal Voltage: 600V
Temperature Range: -60℃~+150℃
Testing Voltage: 6000V
Conductor: Tinned Copper
Insulation: Silicone Rubber
Sheath: Fiber Glass
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.: E216252
Application: Lead wires for home electric appliances,lighting fixtures , electronic equipment ,sensor and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data

Nominal Voltage: 600V
Temperature Range: -60℃~+150℃
Testing Voltage: 6000V
Conductor: Tinned Copper
Insulation: Silicone Rubber
Sheath: Fiber Glass
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

UL/CUL Certificate No.: E216252

Application: Lead wires for home electric appliances,lighting fixtures , electronic equipment ,sensor and etc..

Specification

Conductor			Insulation/Sheath				Max Resistence at 20℃ Ω/km	Premissible Ampacity 20℃-AMR
AWG	Conductor Structure NO./mm	Diameter mm	Nom. Thickness mm	Figerglass Thickness mm	Nom. Outer Diameter mm	Max Outer Diameter mm	Max Resistence at 20℃ Ω/km	Premissible Ampacity 20℃-AMR
26	7/0.16	0.48	0.78	0.15	2.3	2.6	143.0	3.22
24	7/0.20	0.60	0.78	0.15	2.5	2.8	92.0	5.15
22	7/0.25	0.75	0.78	0.15	2.6	2.9	56.8	8.73
20	7/0.31	0.93	0.78	0.15	2.8	3.1	40.1	13.87

Application Area

home appliance

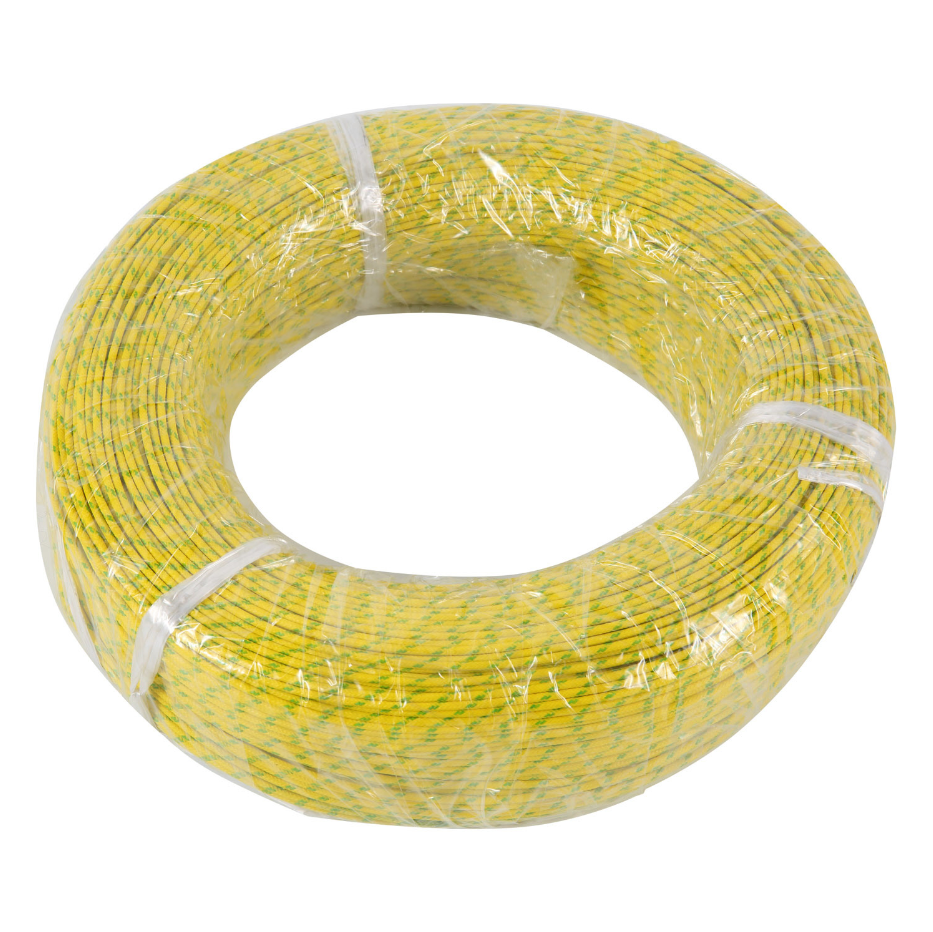

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications

Silicone Rubber Insulated Wire Figerglass Braided Wire lead wire
