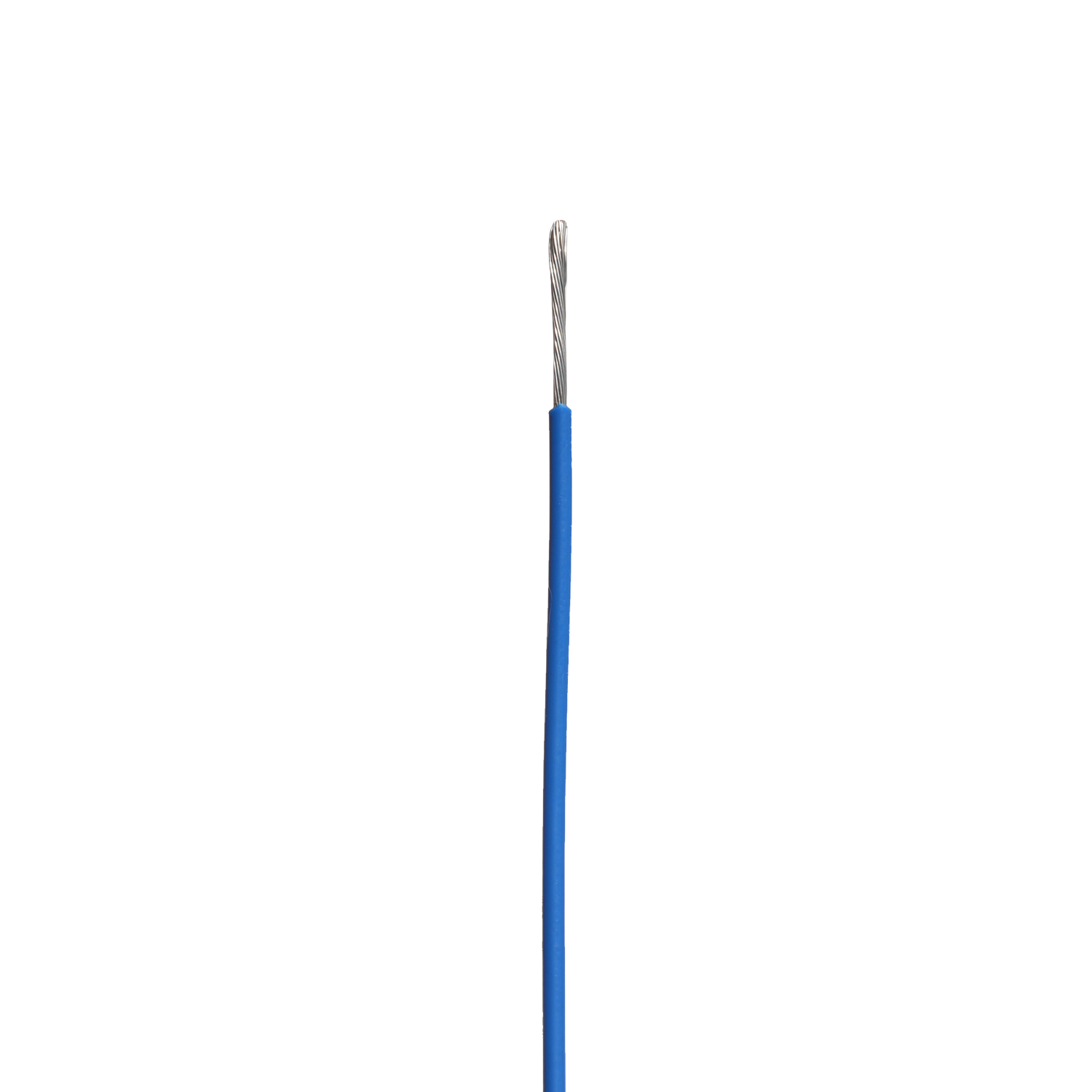

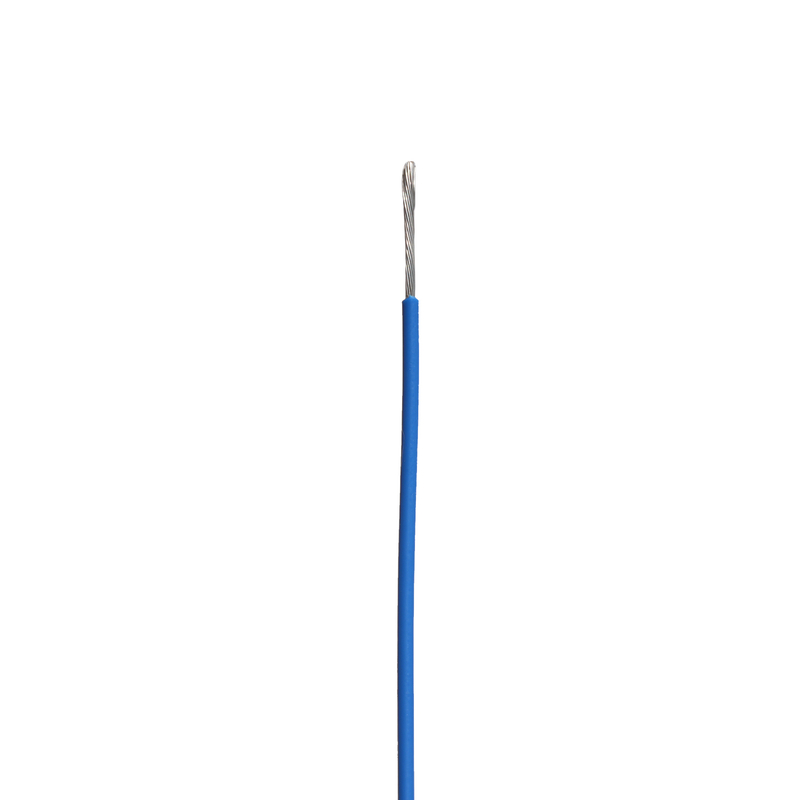

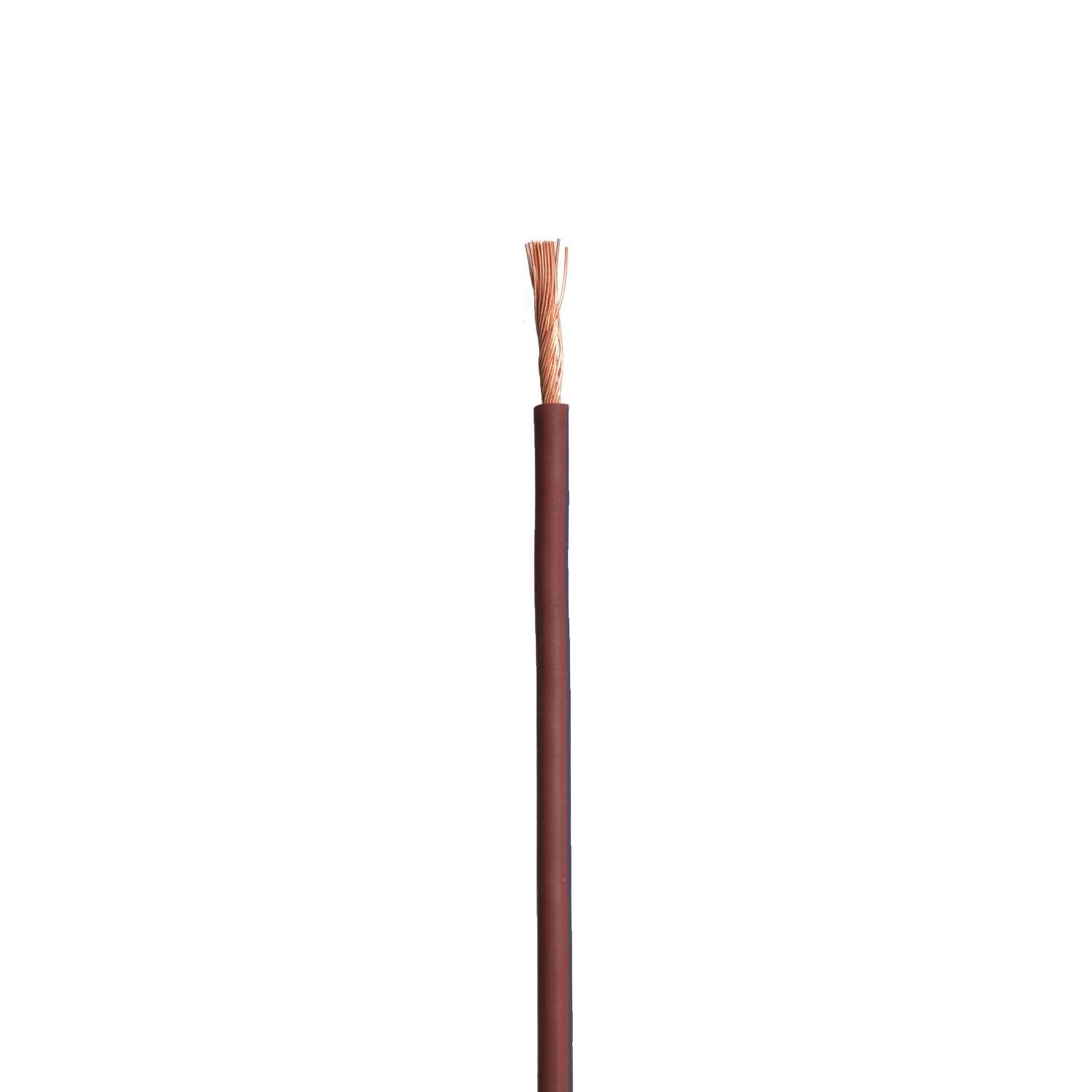

UL3173 cross-linked polyolefin insulated wire

Technical Data
Nominal Voltage: 600V
Temperature Range: 125℃
Testing Voltage: 6000V
Conductor: 26-10AWG Bare or Tinned Copper
Insulation: XLPE
Colors: White-Blue-Red-Black-Brown-Yellow-Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Nominal Voltage: 600V

Temperature Range: 125℃

Testing Voltage: 6000V

Conductor: 26-10AWG Bare or Tinned Copper

Insulation: XLPE

Colors: White-Blue-Red-Black-Brown-Yellow-Green

UL/CUL Certificate No.: E216252

Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Specification

Conductor			Insulation			Resistence at 20ºC Ω/km
AWG	Conductor Structure No./mm	Diameter mm	Nom. Thickness mm	Nom. Outer Diameter mm	Max. Outer Diameter mm
AWG	Conductor Structure No./mm	Diameter mm	Nom. Thickness mm	Nom. Outer Diameter mm	Max. Outer Diameter mm
26	7/0.160	0.48	0.76	2.00	2.2	139.76
24	7/0.200	0.60	0.76	2.12	2.3	88.36
22	7/0.254	0.78	0.76	2.30	2.5	60.16
20	7/0.320	0.96	0.76	2.48	2.7	38.58
18	16/0.254	1.20	0.76	2.72	2.9	22.98
16	26/0.254	1.50	0.76	3.02	3.3	15.06
14	41/0.254	1.90	0.76	3.42	3.7	9.59
12	65/0.254	2.40	0.76	3.92	4.2	6.07
10	65/0.320	3.00	0.76	4.52	4.9	3.73

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications

cross-linked polyolefin wire UL3173 wire XLPE insulated wire
