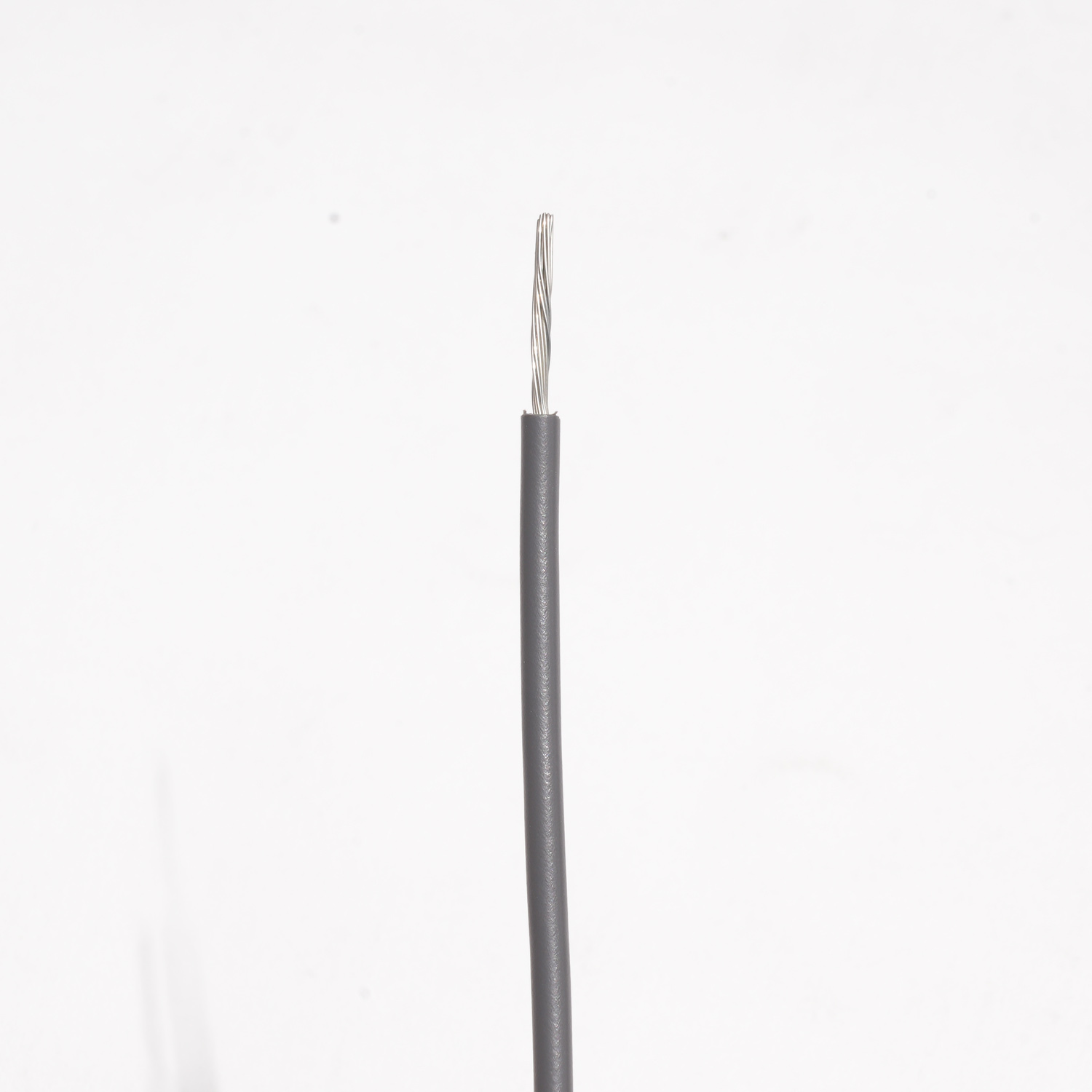

UL3265 cross-linked polyolefin insulated wire

Technical Data
Nominal Voltage: 150V
Temperature Range: 125℃
Testing Voltage: 1500V
Conductor: 30-16AWG Bare or Tinned Copper
Insulation: XLPE
Colors: White-Blue-Red-Black-Brown-Yellow-Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Nominal Voltage: 150V

Temperature Range: 125℃

Testing Voltage: 1500V

Conductor: 30-16AWG Bare or Tinned Copper

Insulation: XLPE

Colors: White-Blue-Red-Black-Brown-Yellow-Green

UL/CUL Certificate No.: E216252

Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Specification

Conductor			Insulation			Resistance at 20℃ Ω/km
AWG	Conductor Structure NO./mm	Diameter mm	Nom. Thickness mm	Nom. Outer Diameter mm	Max. Outer Diameter mm	Resistance at 20℃ Ω/km
30	7/0.100	0.30	0.28	0.86	0.9	354.33
28	7/0.120	0.36	0.28	0.92	1.0	223.53
26	7/0.160	0.48	0.28	1.04	1.1	139.76
24	7/0.200	0.60	0.28	1.16	1.3	88.36
22	7/0.254	0.78	0.28	1.34	1.4	60.16
20	7/0.320	0.96	0.28	1.52	1.6	38.58
18	16/0.254	1.20	0.28	1.76	1.9	22.98
16	26/0.254	1.50	0.28	2.06	2.2	15.06

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications

cross-linked polyolefin wire UL3265 wire XLPE insulated wire
