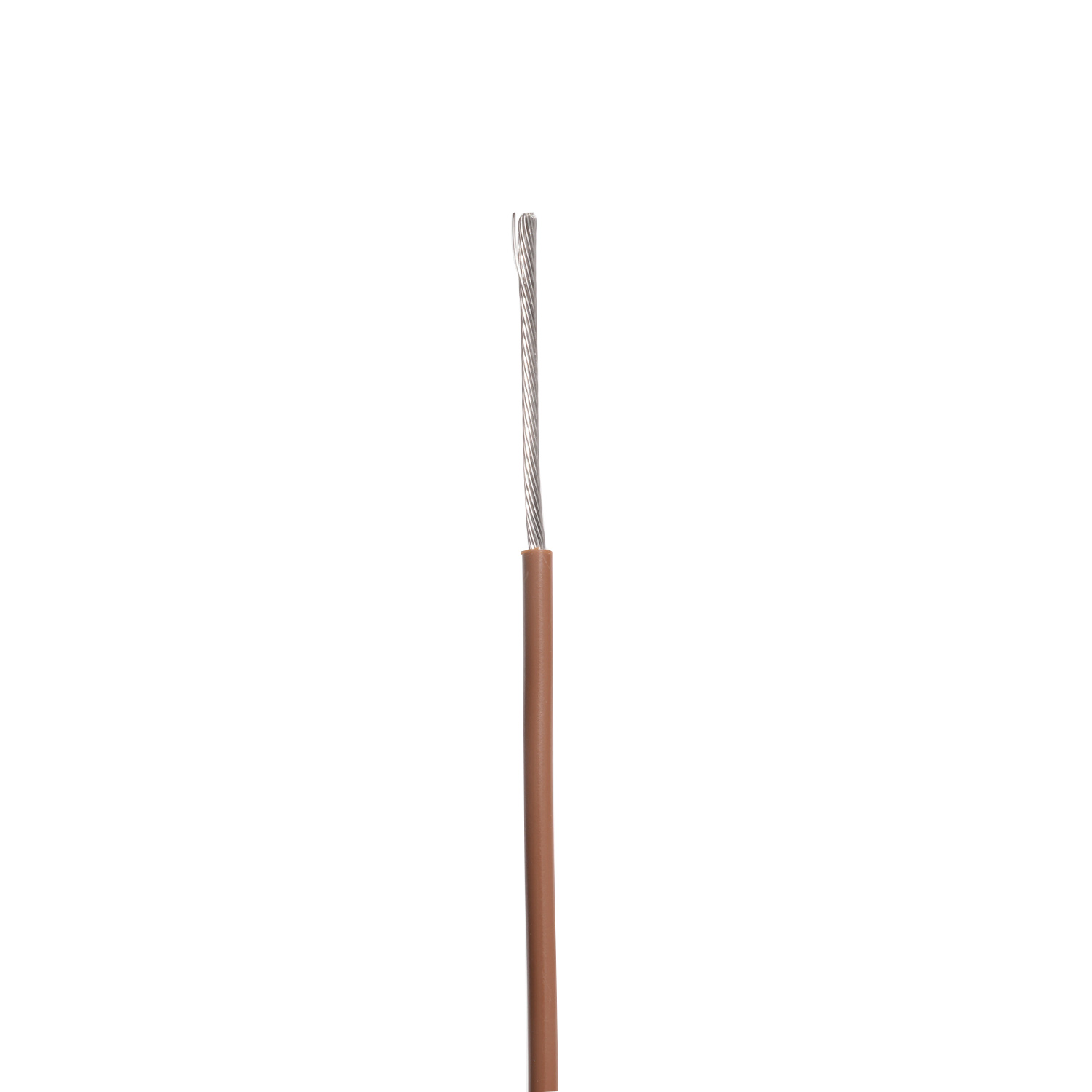

UL3385 cross-linked polyolefin insulated wire

Technical Data
Nominal Voltage: 300V
Temperature Range: 105℃
Testing Voltage: 3000V
Conductor: 30-10AWG Bare or Tinned Copper
Insulation: XLPE
Color: White-Blue-Red-Black-Brown-Yellow-Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Nominal Voltage: 300V

Temperature Range: 105℃

Testing Voltage: 3000V

Conductor: 30-10AWG Bare or Tinned Copper

Insulation: XLPE

Color: White-Blue-Red-Black-Brown-Yellow-Green

UL/CUL Certificate No.: E216252

Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Specification

Conductor			Insulation			Resistance at 20℃ Ω/km
AWG	Conductor Structure NO./mm	Diameter mm	Nom. Thickness mm	Nom. Outer Diameter mm	Max. Outer Diameter mm	Resistance at 20℃ Ω/km
30	7/0.100	0.30	0.40	1.10	1.2	354.33
28	7/0.120	0.36	0.40	1.16	1.3	223.53
26	7/0.160	0.48	0.40	1.28	1.4	139.76
24	7/0.200	0.60	0.40	1.40	1.5	88.36
22	7/0.254	0.78	0.40	1.58	1.7	60.16
20	7/0.320	0.96	0.40	1.76	1.9	38.58
18	16/0.254	1.20	0.40	2.00	2.2	22.98
16	26/0.254	1.50	0.40	2.30	2.5	15.06
14	41/0.254	1.90	0.40	2.70	2.9	9.59
12	65/0.254	2.40	0.40	3.20	3.5	6.07
10	65/0.320	3.00	0.40	3.80	4.1	3.73

Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop

Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.

certifications

cross-linked polyolefin insulated wire UL3385 wire XLPE insulated wire
