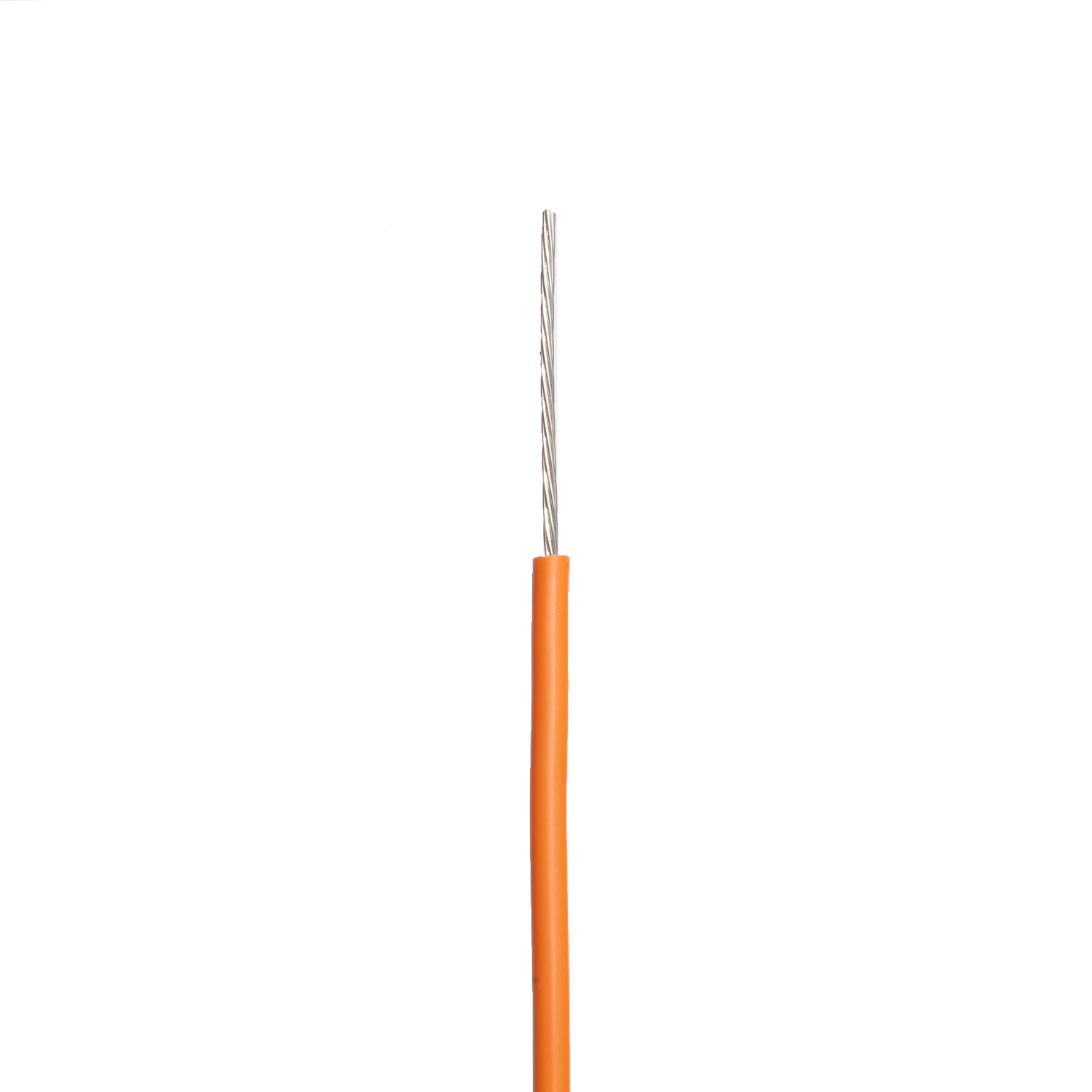

Technical Data
Nominal Voltage: 300V
Temperature Range: 150℃
Testing Voltage: 3000V
Conductor: 30-10AWG Bare or Tinned Copper
Insulation: XLPE
Colors: White-Blue-Red-Black-Brown-Yellow-Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..
Specification
Conductor | Insulation | Resistance at 20℃ | ||||
AWG | Conductor Structure | Diameter | Nom. Thickness | Nom. Outer Diameter | Max Outer Diameter | |
30 | 7/0.100 | 0.30 | 0.40 | 1.10 | 1.2 | 354.33 |
28 | 7/0.120 | 0.36 | 0.40 | 1.16 | 1.3 | 223.53 |
26 | 7/0.160 | 0.48 | 0.40 | 1.28 | 1.4 | 139.76 |
24 | 7/0.200 | 0.60 | 0.40 | 1.40 | 1.5 | 88.36 |
22 | 7/0.254 | 0.78 | 0.40 | 1.58 | 1.7 | 60.16 |
20 | 7/0.320 | 0.96 | 0.40 | 1.76 | 1.9 | 38.58 |
18 | 16/0.254 | 1.20 | 0.40 | 2.00 | 2.2 | 22.98 |
16 | 26/0.254 | 1.50 | 0.40 | 2.30 | 2.5 | 15.06 |
14 | 41/0.254 | 1.90 | 0.40 | 2.70 | 2.9 | 9.59 |
12 | 65/0.254 | 2.40 | 0.40 | 3.20 | 3.5 | 6.07 |
10 | 65/0.320 | 3.00 | 0.40 | 3.80 | 4.1 | 3.73 |
Application Area
Packaging & Shipping
Manufacturing Shop
Jiangyin Yuanda Electrical Material Co., Ltd. is a professional manufacturer, and our main products include
A. Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ;
B. RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G , war industry , smart car and etc. for communication ;
C. UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ;
D. Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ;
E. Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc..
Our Advantages
Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE and CCC.
Especially our aluminum conductor cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.
