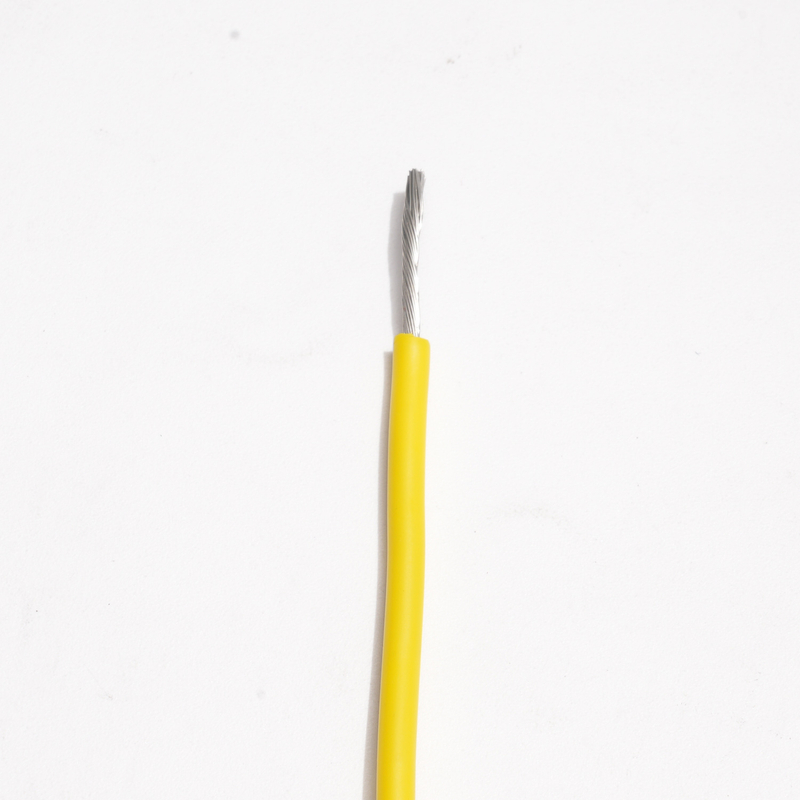

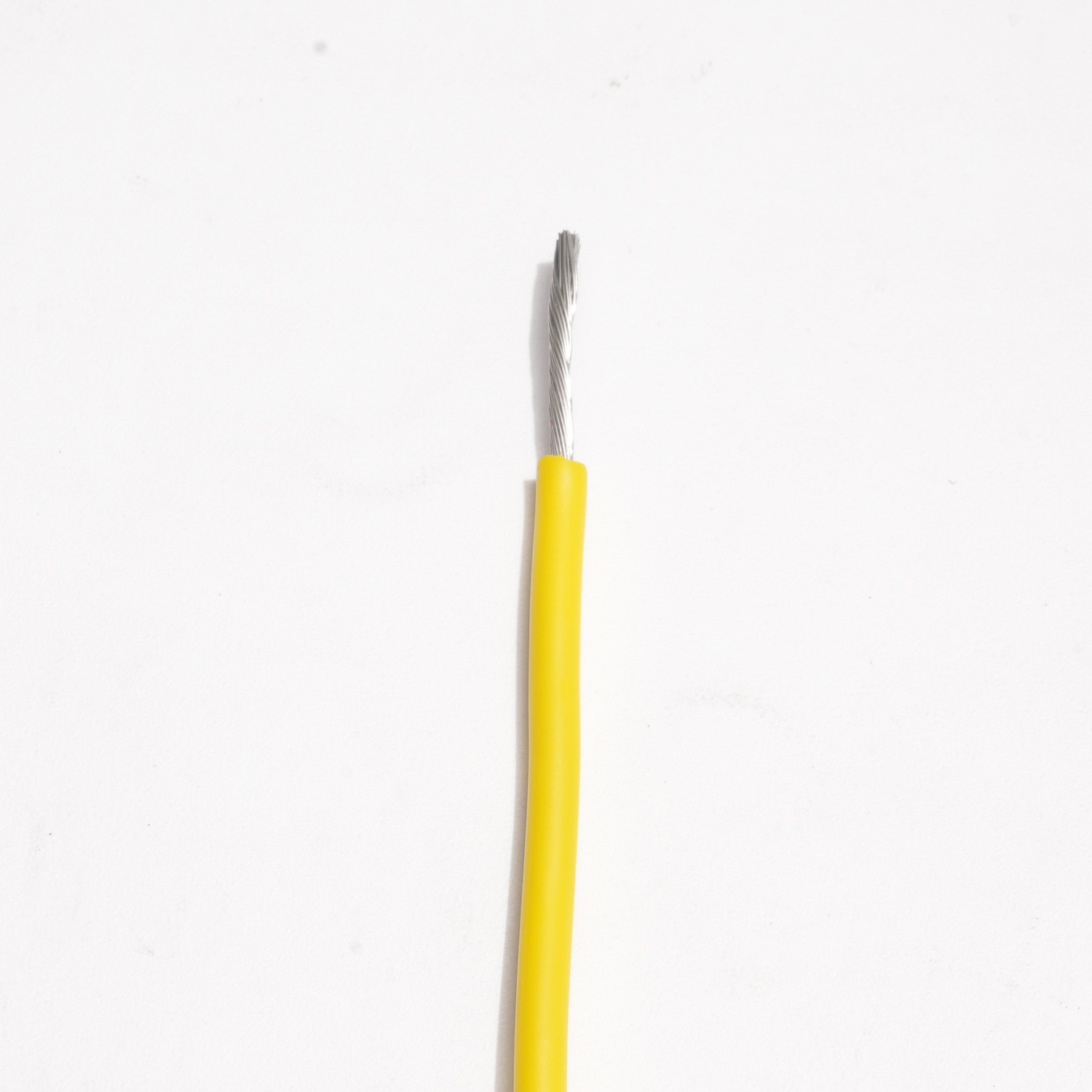

UL3215 Silicone Rubber Insulated Wire

Technical Data
Nominal Voltage: 600V
Temperature Range: -60℃~+150℃
Testing Voltage: 6000V
Conductor: Bare or Tinned Copper
Insulation: Silicone Rubber
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Nominal Voltage: 600V

Temperature Range: -60℃~+150℃

Testing Voltage: 6000V

Conductor: Bare or Tinned Copper

Insulation: Silicone Rubber

Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

UL/CUL Certificate No.: E216252

Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Specification

Conductor				Insulation		Electrical Characterastics
AWG	Conductor Structure NO./mm	Diameter mm	Nom. Thickness mm	Nom. Outer Diameter mm	Max. Outer Diameter mm	Resistence at 20℃ Ω/km	Premissible Ampacity 20℃-AMR
18	7/0.39	1.17	1.53	4.23	4.57	23.0	22.02
16	7/0.49	1.47	1.53	4.53	4.89	14.6	35.04
