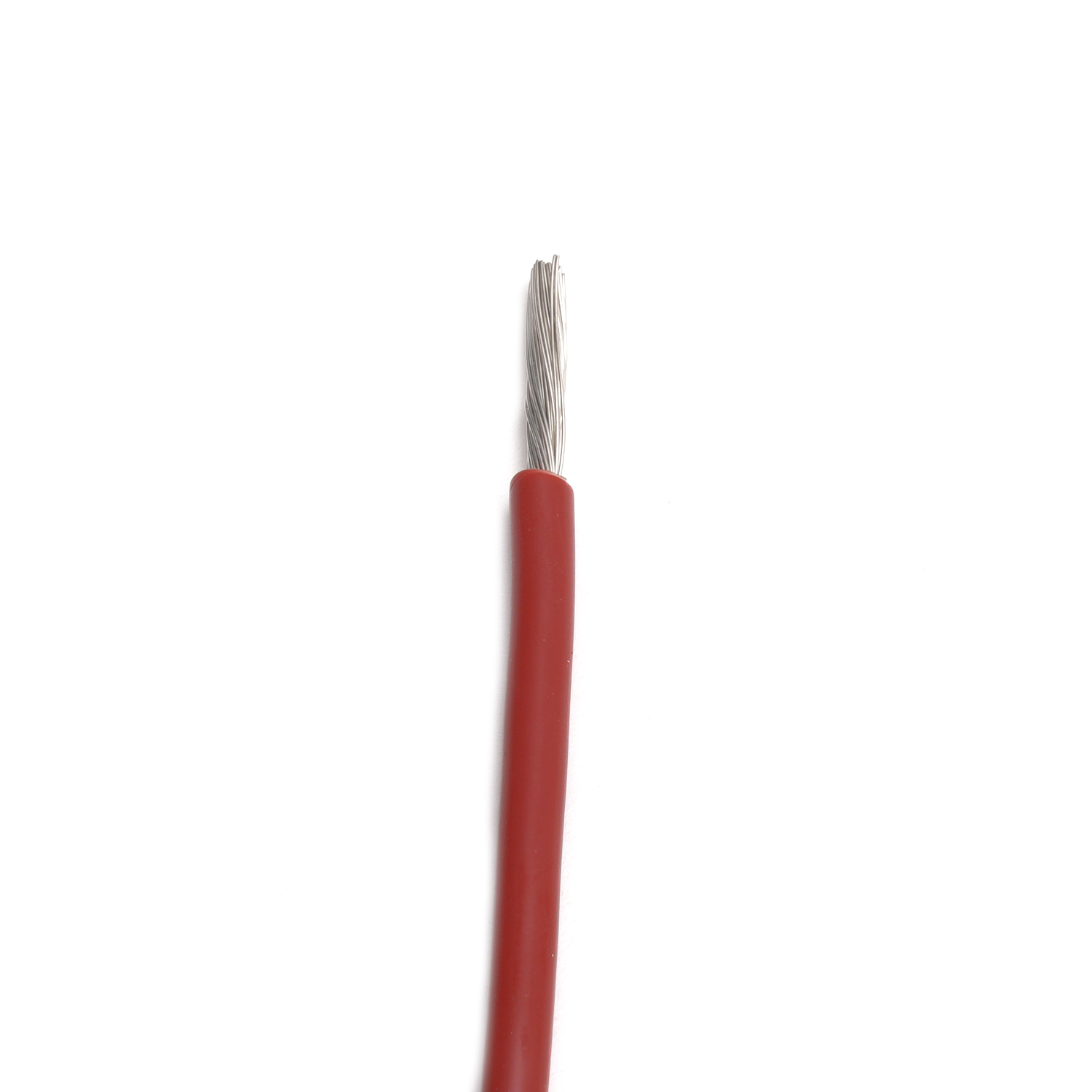

UL3367 Silicone Rubber Insulated Wire

Technical Data
Nominal Voltage: 300V
Temperature Range: -60℃~+200℃
Testing Voltage: 3000V
Conductor: Bare or Tinned Copper
Insulation: Silicone Rubber
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Nominal Voltage: 300V

Temperature Range: -60℃~+200℃

Testing Voltage: 3000V

Conductor: Bare or Tinned Copper

Insulation: Silicone Rubber

Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

UL/CUL Certificate No.: E216252

Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Specification

Conductor			Insulation
AWG	Conductor structure No./mm	Diameter mm	Nominal thickness mm	Nominal outer diameter mm	Max. outer diameter mm
26	1/0.40	0.40	0.4	1.20	1.30
24	1/0.50	0.50	0.4	1.30	1.40
22	1/0.60	0.60	0.4	1.40	1.51
20	1/0.80	0.80	0.4	1.60	1.73
18	1/1.00	1.00	0.4	1.80	1.94
16	7/0.49	1.47	0.4	2.27	2.45
