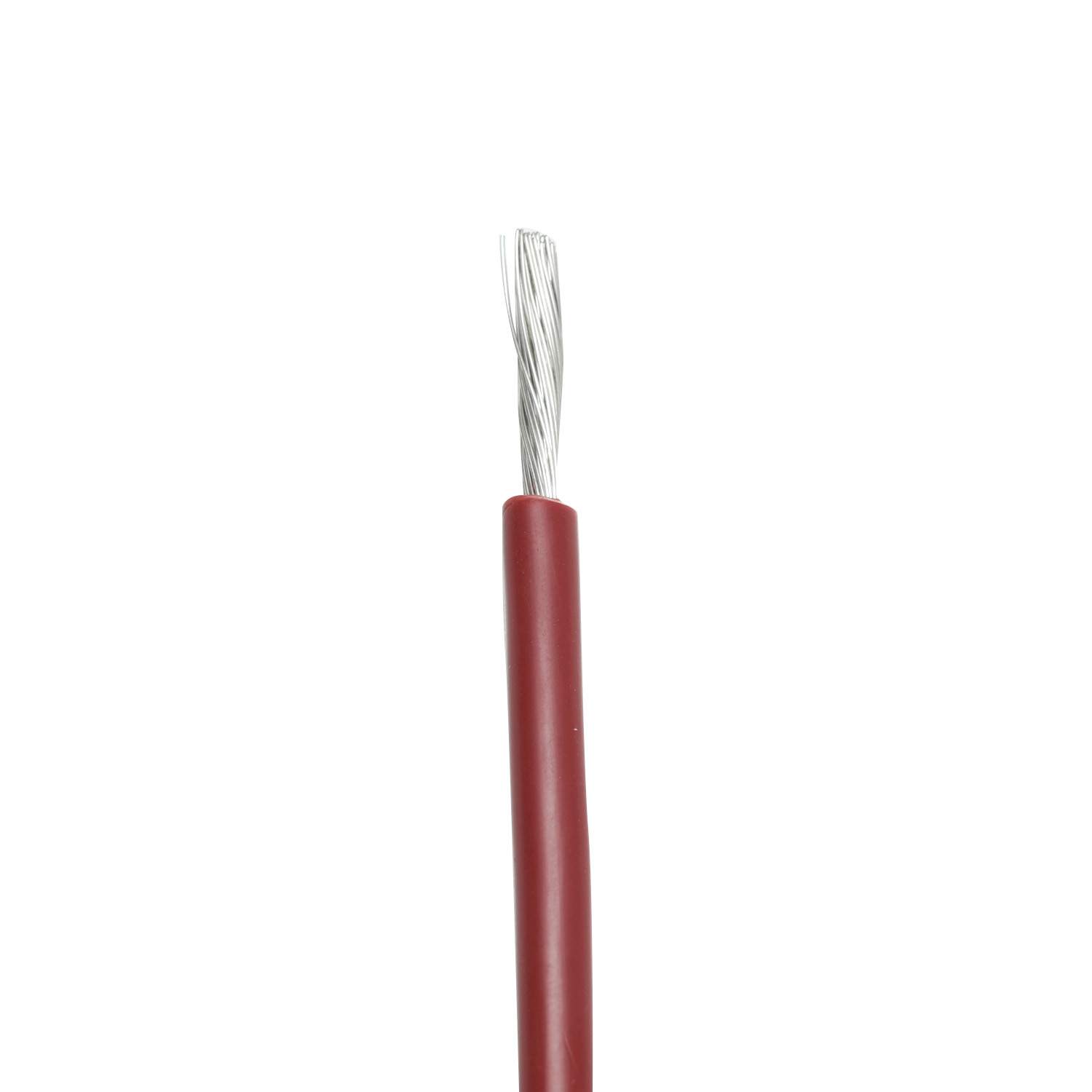

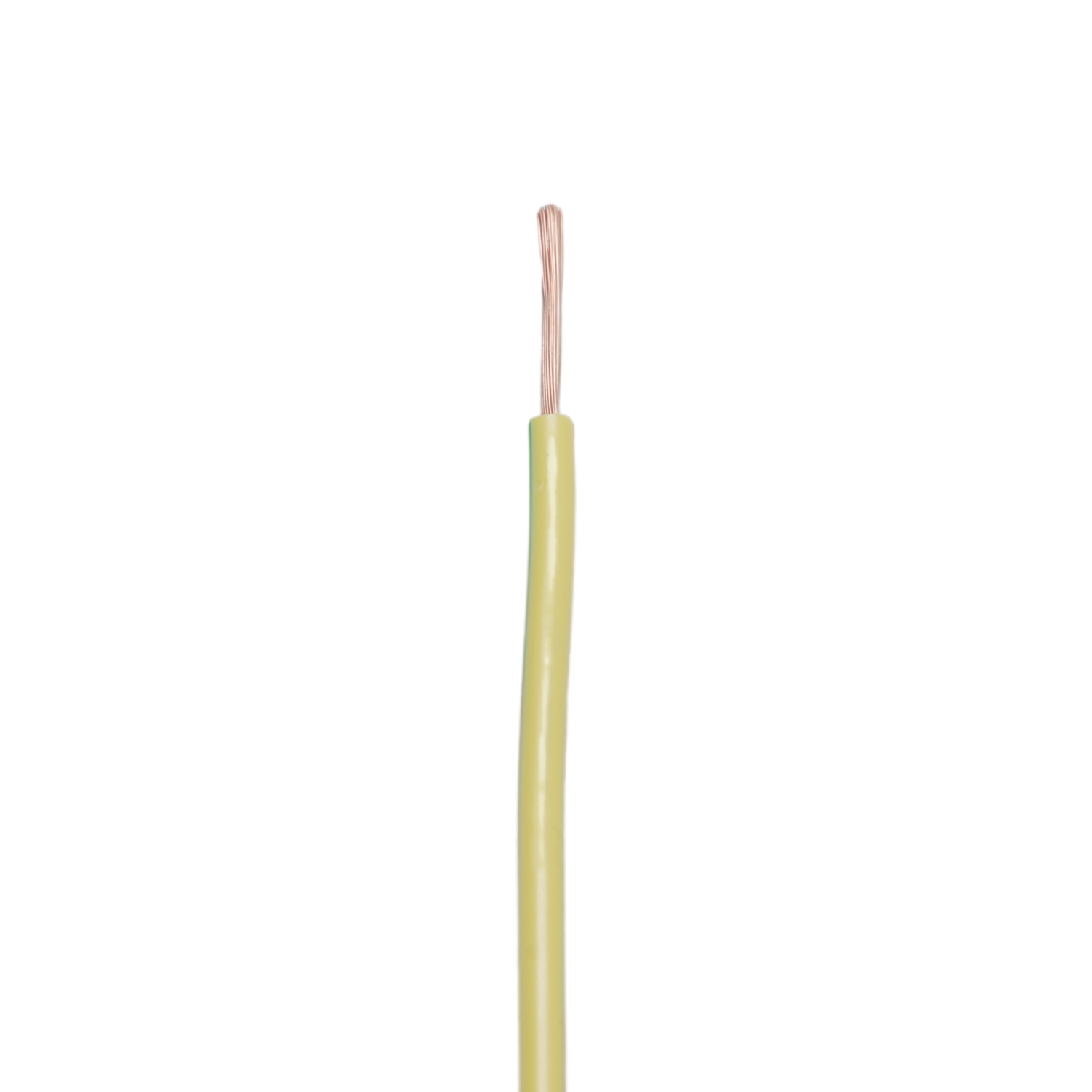

UL3529/3530 Silicone Rubber Insulated Wire

AWG

Conductor Structure
No./mm

Diameter
mm

Nom. Thickness
mm

Nominal Outer Diameter
mm

Max Outer Diameter
mm

26

7/0.16

0.48

0.78

2.04

2.20

143.0

24

7/0.20

0.60

0.78

2.16

2.33

92.0

22

7/0.25

0.75

0.78

2.31

2.49

56.8

20

7/0.31

0.93

0.78

2.49

2.69

40.1

18

7/0.395

1.19

0.78

2.73

2.95

23.0

16

7/0.495

1.49

0.78

3.03

3.27

14.6

14

41/0.25

1.82

0.78

3.38

3.65

9.9

12

45/0.32

2.50

0.78

4.06

4.38

5.4

10

35/0.45

3.08

0.78

4.64

5.01

3.5

8

44/0.50

3.90

1.12

6.14

6.63

2.190

6

70/0.50

5.50

1.53

8.56

9.24

1.410

4

110/0.50

6.90

1.53

9.96

10.76

0.920

2

175/0.50

8.70

1.53

11.76

12.70

0.590

1

217/0.50

10.00

2.03

14.06

15.18

0.449

1/0

276/0.50

11.20

2.03

15.26

16.48

0.355

2/0

342/0.50

12.20

2.03

16.26

17.56

0.282

3/0

437/0.50

13.80

2.03

17.86

19.29

0.223

4/0

551/0.50

15.50

2.03

19.56

21.12

0.177

250Kcmil

1009/0.40

16.80

2.45

21.70

23.44

0.147

300Kcmil

1216/0.40

18.50

2.45

23.40

25.27

0.127

350Kcmil

1406/0.40

20.00

2.45

24.90

26.89

0.105

400Kcmil

1615/0.40

21.50

2.45

26.40

28.51

0.091

450Kcmil

1813/0.40

22.60

2.45

27.50

29.70

0.081

500Kcmil

2010/0.40

23.90

2.45

28.80

31.10

0.073

550Kcmil

2220/0.40

25.00

2.80

30.60

33.05

0.067

600Kcmil

2420/0.40

26.20

2.80

31.80

34.34

0.061

650Kcmil

1675/0.50

27.30

2.80

32.90

35.53

0.056

700Kcmil

1808/0.50

28.20

2.80

33.80

36.50

0.052

750Kcmil

1935/0.50

29.30

2.80

34.90

37.69

0.049
