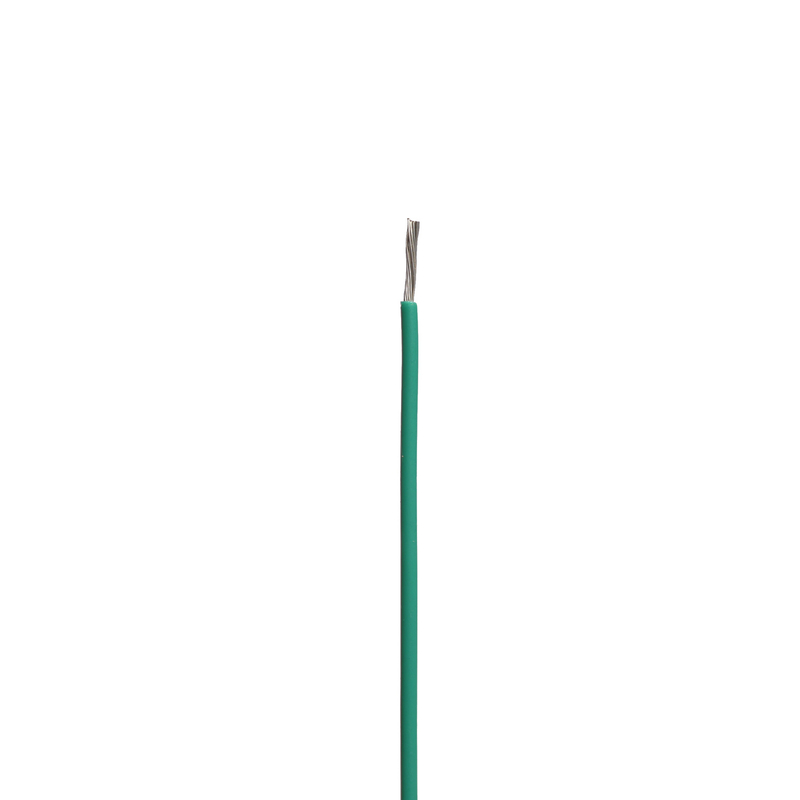

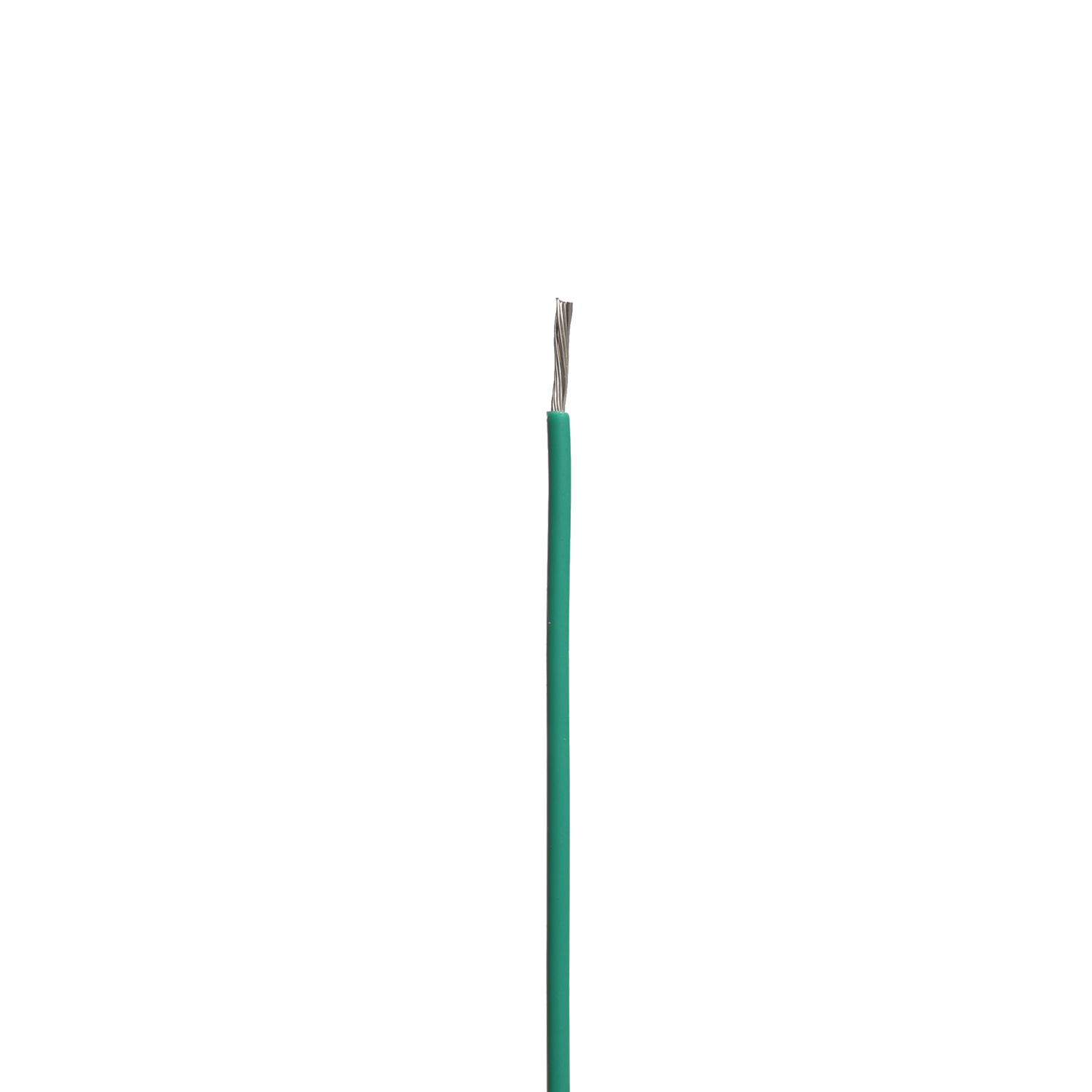

UL3123 Silicone Rubber Insulated Wire

Technical Data
Nominal Voltage: 600V
Temperature Range: -60℃~+150℃
Testing Voltage: 6000V
Conductor: Bare or Tinned Copper
Insulation: Silicone Rubber
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data
Nominal Voltage: 600V

Temperature Range: -60℃~+150℃

Testing Voltage: 6000V

Conductor: Bare or Tinned Copper

Insulation: Silicone Rubber

Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

UL/CUL Certificate No.: E216252

Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..

Specification

Conductor				Insulation		Max Resistence at 20℃ Ω/km	Premissible Ampacity 20℃-AMR
AWG	Conductor Structure NO./mm	Diameter mm	Nom. Thickness mm	Nom. Outer Diameter mm	Max Outer Diameter mm	Max Resistence at 20℃ Ω/km	Premissible Ampacity 20℃-AMR
30	7/0.10	0.30	0.78	1.86	2.01	364.0	1.27
28	7/0.12	0.36	0.78	1.92	2.07	252.0	2.02
26	7/0.16	0.48	0.78	2.01	2.20	143.0	3.22
24	7/0.20	0.360	0.78	2.16	2.33	92.0	5.15
22	7/0.25	0.75	0.78	2.31	2.49	56.8	8.73
20	7/0.31	0.93	0.78	2.49	2.69	40.1	13.87
18	7/0.39	1.17	0.78	2.73	2.95	23.0	22.02
16	7/0.49	1.47	0.78	3.03	3.27	14.6	35.04
