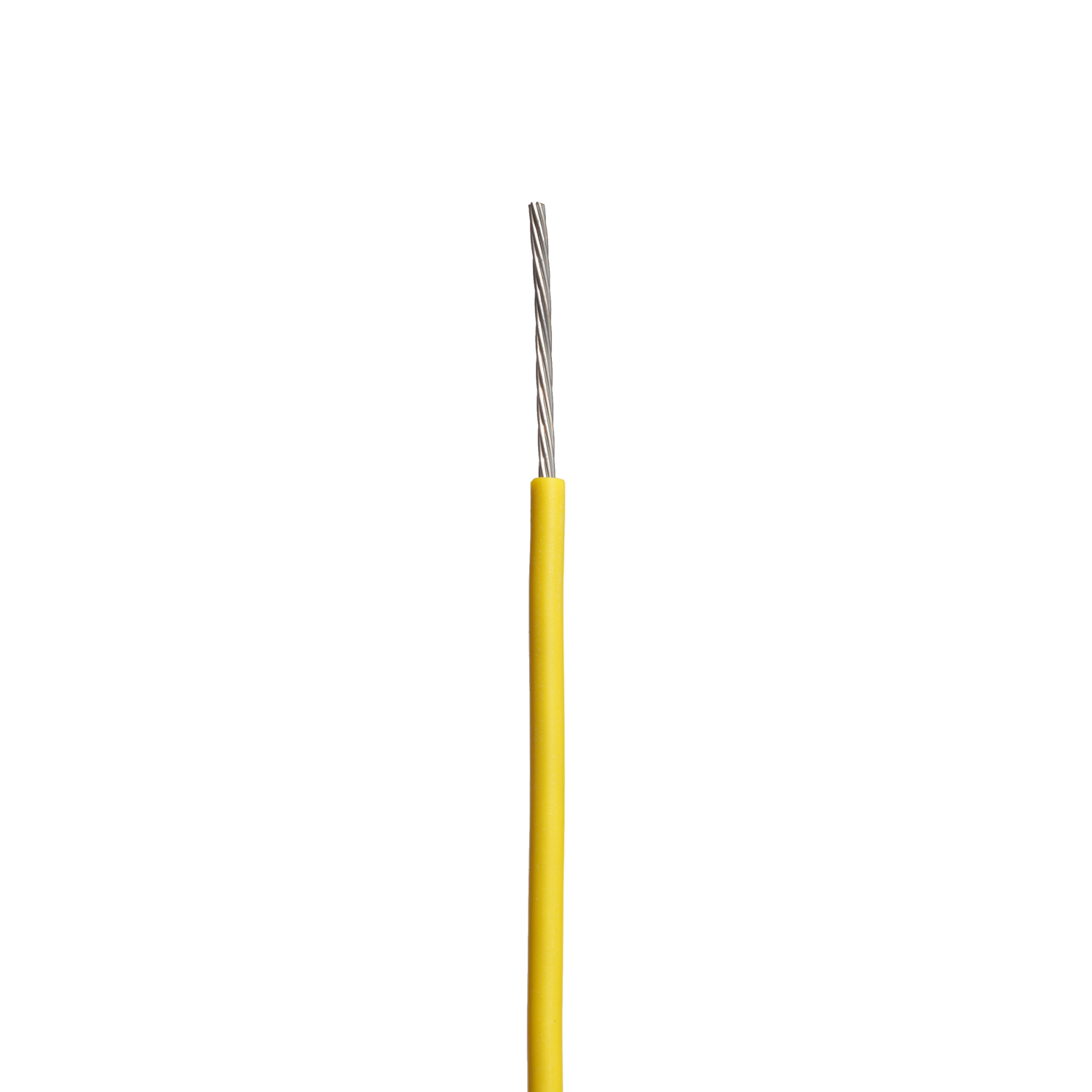

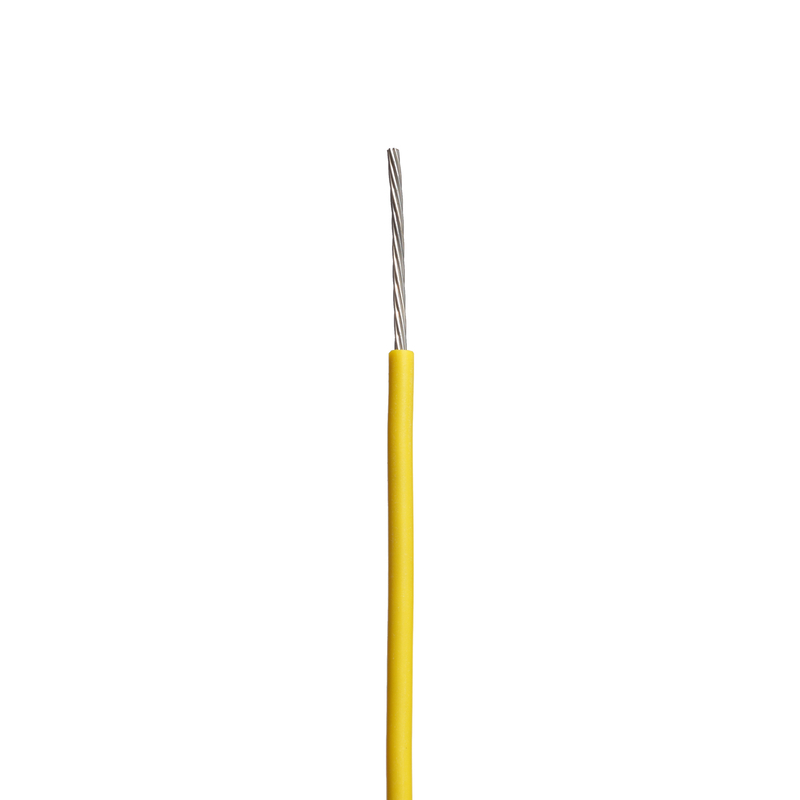

Technical Data
Nominal Voltage: 300V
Temperature Range: -60℃~+150℃
Testing Voltage: 6000V
Conductor: Bare or Tinned Copper
Insulation: Silicone Rubber
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..
| Quantity: | |
|---|---|
Technical Data
Nominal Voltage: 300V
Temperature Range: -60℃~+150℃
Testing Voltage: 6000V
Conductor: Bare or Tinned Copper
Insulation: Silicone Rubber
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.: E216252
Application: Inner fixed wires for home electric appliances,lighting fixtures, electronic equipment and etc..
Specification
Conductor | Insulation | Max Resistence at 20℃ | Premissible Ampacity | ||||
AWG | Conductor Structure | Diameter | Nom. Thickness | Nom. Outer Diameter | Max Outer Diameter | ||
30 | 7/0.10 | 0.30 | 0.40 | 1.10 | 1.19 | 364.0 | 1.27 |
28 | 7/0.12 | 0.36 | 0.40 | 1.16 | 1.25 | 252.0 | 2.02 |
26 | 7/0.16 | 0.48 | 0.40 | 1.28 | 1.38 | 143.0 | 3.22 |
24 | 7/0.20 | 0.360 | 0.40 | 1.40 | 1.51 | 92.0 | 5.15 |
22 | 7/0.25 | 0.75 | 0.40 | 1.55 | 1.67 | 56.8 | 8.73 |
20 | 7/0.31 | 0.93 | 0.40 | 1.73 | 1.87 | 40.1 | 13.87 |
18 | 7/0.39 | 1.17 | 0.40 | 1.97 | 2.13 | 23.0 | 22.02 |
16 | 7/0.49 | 1.47 | 0.40 | 2.27 | 2.45 | 14.6 | 35.04 |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE and CCC.
Especially our aluminum conductor cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.
