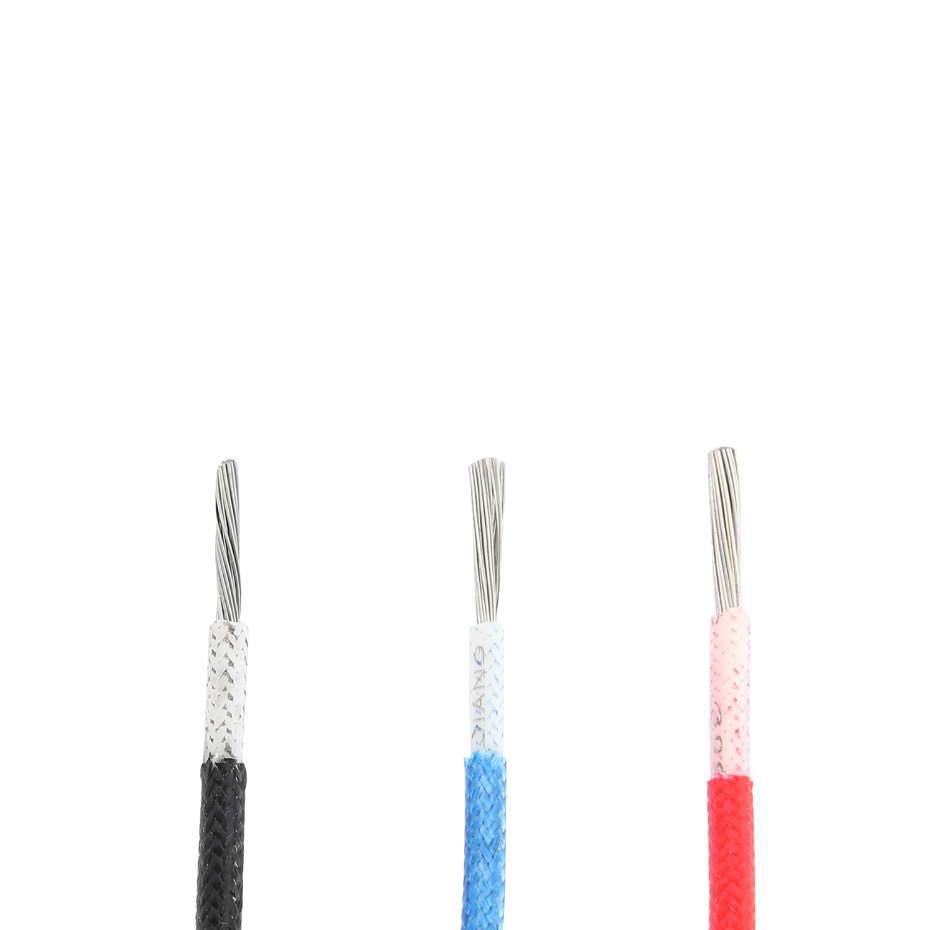

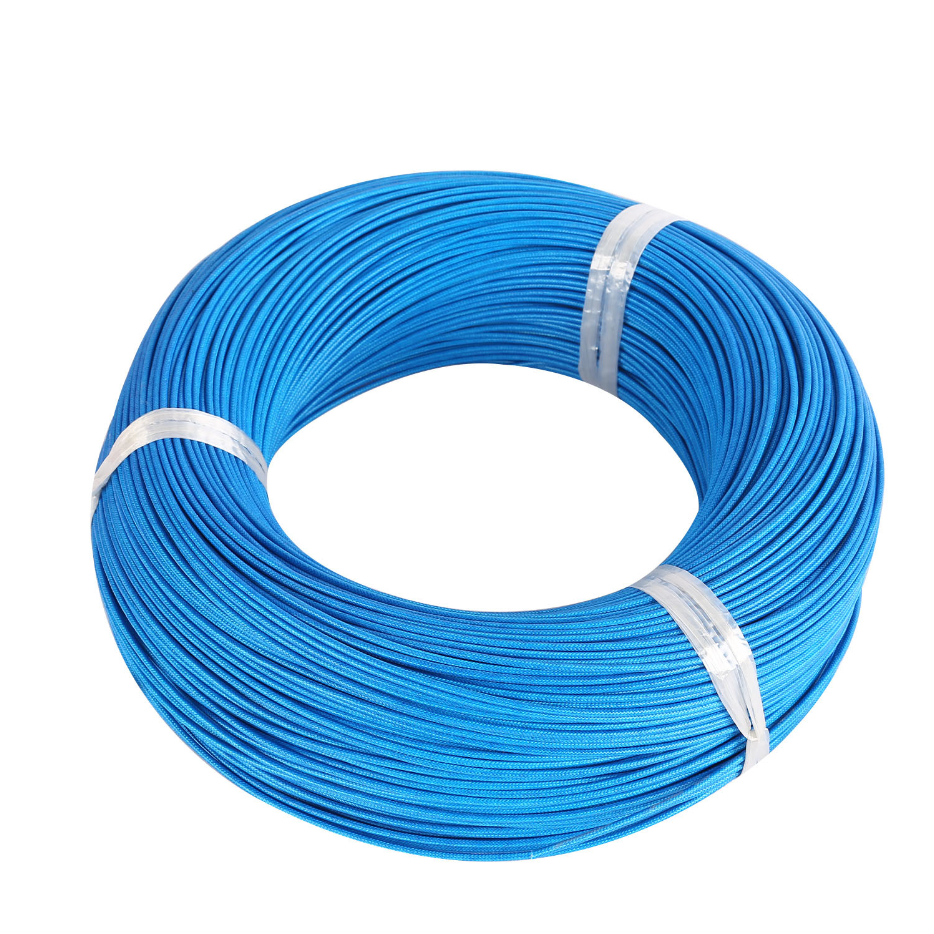

UL3122 Silicone Rubber Insulated And Figerglass Braided Wire

Technical Data
Nominal voltage: 300V
Temperature range: -60℃~+200℃
The standard for reference: UL758, UL1581, UL62
Conductor: 26-12AWG tinned copper
Sheath: Fiber glass
Insulation: Silicone rubber
Test by UL VW-1 and CSAFT-1
Certificate NO.: UL E216252
Application: Internal wire of appliance or electronic equipment of cooker where exposed to high temperature.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Data

Nominal voltage: 300V

Temperature range: -60℃~+200℃

The standard for reference: UL758, UL1581, UL62

Conductor: 26-12AWG tinned copper

Sheath: Fiber glass

Insulation: Silicone rubber

Test by UL VW-1 and CSAFT-1

Certificate NO.: UL E216252

Application: Internal wire of appliance or electronic equipment of cooker where exposed to high temperature.

Specification

Conductor			Insulation/Sheath				Max Resistence at 20℃ Ω/km	Premissible Ampacity 20℃-AMR
AWG	Conductor Structure NO./mm	Diameter mm	Nom. Thickness mm	Figerglass Thickness mm	Nom. Outer Diameter mm	Max Outer Diameter mm	Max Resistence at 20℃ Ω/km	Premissible Ampacity 20℃-AMR
26	7/0.16	0.48	0.40	0.15	1.6	1.9	143.0	3.5
24	7/0.20	0.60	0.40	0.15	1.7	2.0	92.0	5.0
22	7/0.25	0.75	0.40	0.15	1.9	2.2	56.8	7.0
20	7/0.31	0.93	0.40	0.15	2.0	2.3	40.1	9.0
18	7/0.39	1.17	0.40	0.15	2.3	2.6	23.0	13.0
16	7/0.49	1.47	0.40	0.20	2.7	3.0	14.6	17.0
