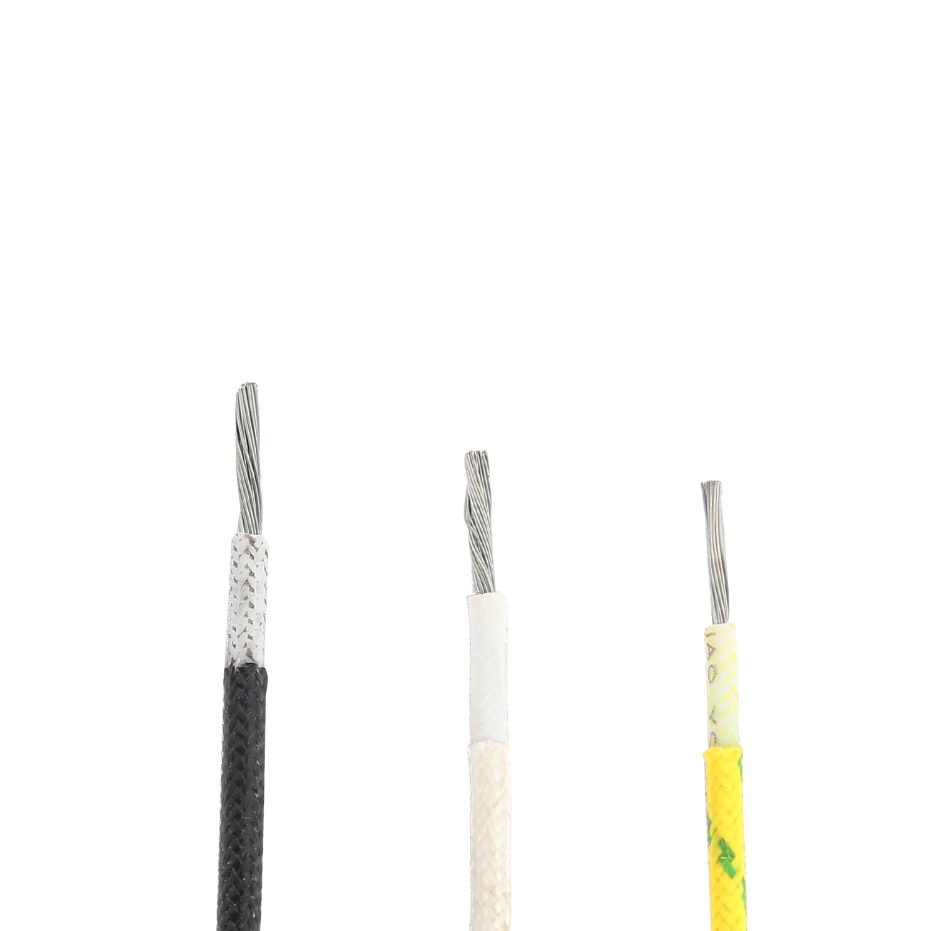

Technical Data
Nominal Voltage: 600V
Temperature Range: -60℃~+200℃
Testing Voltage: 6000V
Conductor: Tinned Copper
Insulation: Silicone Rubber
Sheath: Fiber Glass
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.: E216252
Application: Used in high temperature conditions like electronic and electric equipment , lighting fixturess , industrial machines ,electric heating products and etc..
Specification
Conductor | Insulation/Sheath | Max Resistence at 20ºC | Premissible Ampacity | |||||
AWG | Conductor Structure | Diameter | Nom. Thickness | Figerglass Thickness | Nom. Outer Diameter | Max. Outer Diameter | ||
26 | 7/0.16 | 0.48 | 0.78 | 0.15 | 2.3 | 2.6 | 143.0 | 3.22 |
24 | 7/0.20 | 0.60 | 0.78 | 0.15 | 2.5 | 2.8 | 92.0 | 5.15 |
22 | 7/0.25 | 0.75 | 0.78 | 0.15 | 2.6 | 2.9 | 56.8 | 8.73 |
20 | 7/0.31 | 0.93 | 0.78 | 0.15 | 2.8 | 3.1 | 40.1 | 13.87 |
18 | 7/0.39 | 1.19 | 0.78 | 0.15 | 3.0 | 3.3 | 23.0 | 22.02 |
Application Area

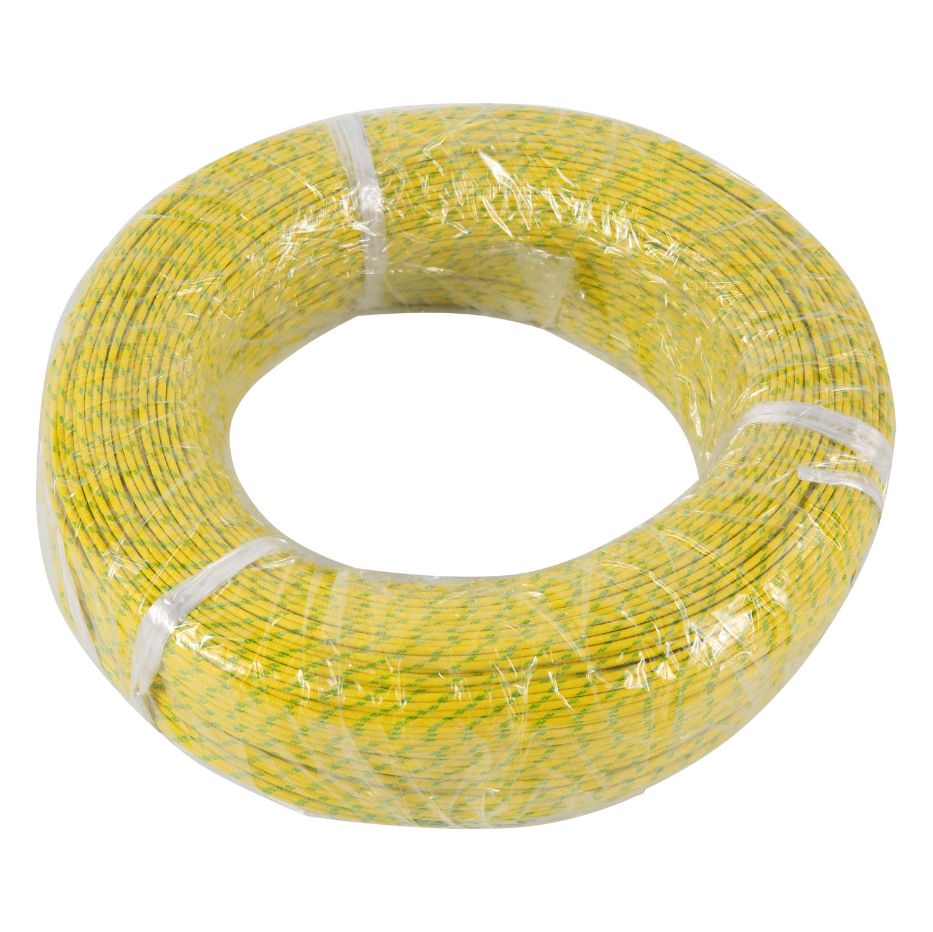

Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE and CCC.
Especially our aluminum conductor cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.
