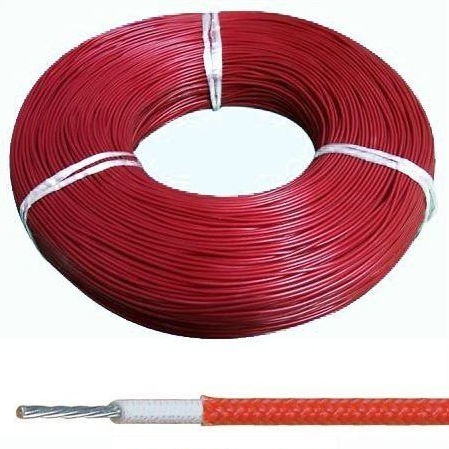

UL3231 Silicone Rubber Insulated And Figerglass Braided Wire

AWG

Conductor
Structure
No./ mm

Diameter
mm

Nominal
Thickness
mm

Fiberglass
thickness
 mm

Nominal outer
diameter
mm

Max outer
diameter
mm

26

7/0.16

0.48

0.78

0.15

2.3

2.5

143.0

24

7/0.20

0.60

0.78

0.15

2.5

2.7

92.0

22

7/0.25

0.75

0.78

0.15

2.6

2.8

56.8

20

7/0.31

0.93

0.78

0.15

2.8

3.0

40.1

18

7/0.39

1.17

0.78

0.15

3.0

3.3

23.0

16

7/0.49

1.47

0.78

0.20

3.4

3.7

14.6

14

41/0.25

1.82

0.78

0.20

3.8

4.1

9.9

12

45/0.32

2.50

0.78

0.25

4.6

4.9

5.4

10

35/0.45

3.08

1.18

0.25

5.9

6.4

3.5

8

44/0.50

3.90

1.53

0.40

7.8

8.4

2.190

6

70/0.50

5.50

1.53

0.40

9.4

10.1

1.410

4

110/0.50

6.90

1.53

0.40

10.8

11.6

0.920

2

175/0.50

8.70

1.53

0.40

12.6

13.6

0.590

1

217/0.50

10.00

2.03

0.50

15.1

16.3

0.449

1/0

276/0.50

11.20

2.03

0.50

16.3

17.6

0.355

2/0

342/0.50

12.20

2.03

0.50

17.3

18.6

0.282

3/0

437/0.50

13.80

2.03

0.50

18.9

20.4

0.223

4/0

551/0.50

15.50

2.03

0.50

20.6

22.2

0.177

250Kcmil

1009/0.40

16.80

2.45

0.50

22.7

24.5

0.147

300Kcmil

1216/0.40

18.50

2.45

0.50

24.4

26.4

0.122

350Kcmil

1406/0.40

20.00

2.45

0.50

25.9

28.0

0.105

400Kcmil

1615/0.40

21.50

2.45

0.50

27.4

29.6

0.091

450Kcmil

1813/0.40

22.60

2.45

0.70

28.9

31.2

0.081

500Kcmil

2010/0.40

23.90

2.45

0.70

30.2

32.6

0.073

550Kcmil

2220/0.40

25.00

2.80

0.70

32.0

34.6

0.067

600Kcmil

2420/0.40

26.20

2.80

0.70

33.2

35.9

0.061

650Kcmil

1675/0.50

27.30

2.80

0.70

34.3

37.0

0.056

700Kcmil

1808/0.50

28.20

2.80

0.70

35.2

38.0

0.052

750Kcmil

1935/0.50

29.30

2.80

0.70

36.3

39.2

0.049
