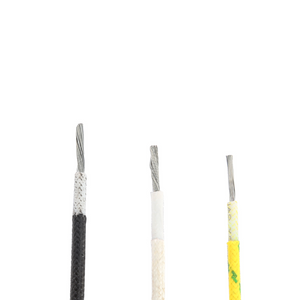

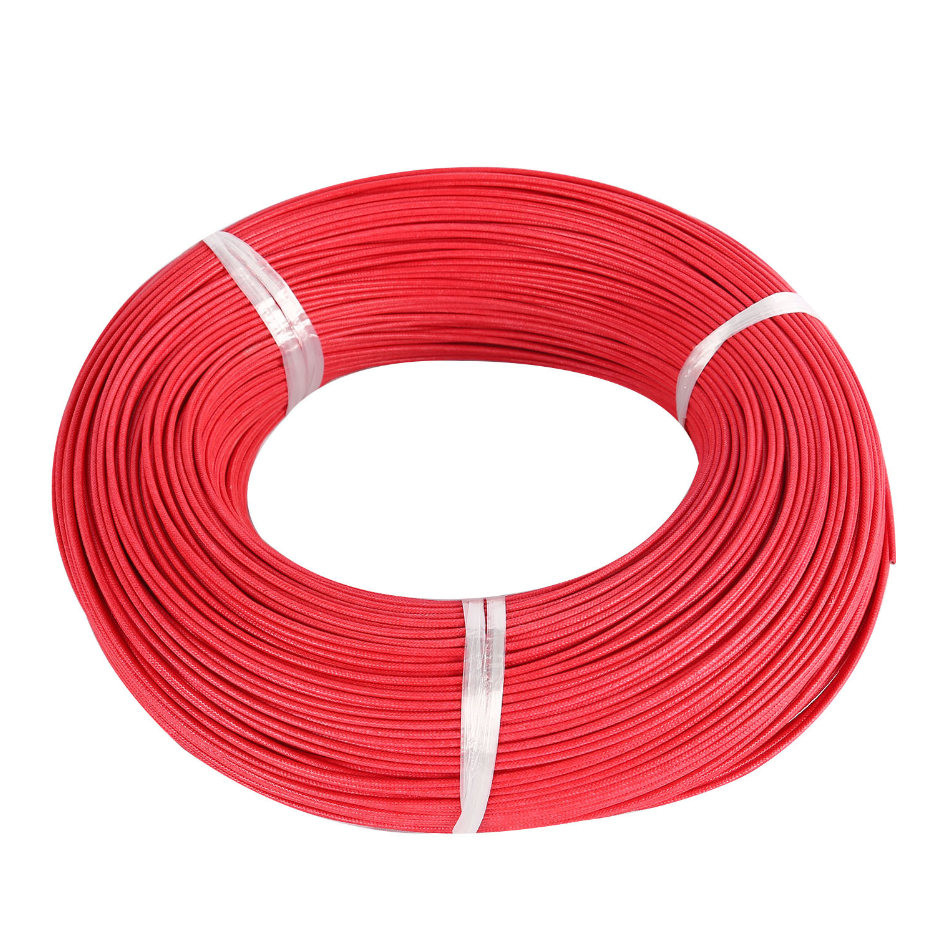

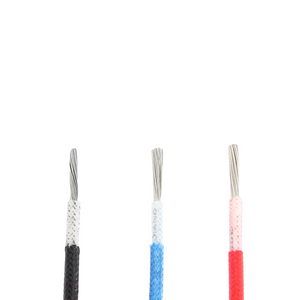

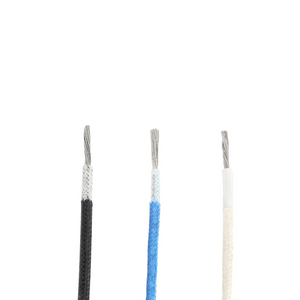

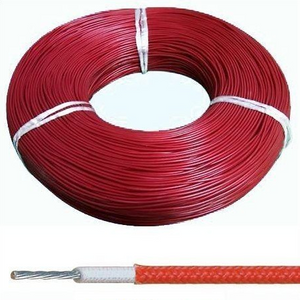

UL3410 Silicone Rubber Insulated,Nylon Braided And Acrylate Coated Wire

Technical Data
Nominal Voltage: 600V
Temperature Range: -60℃~+200℃
Testing Voltage: 6000V
Conductor: Tinned Copper
Insulation: Silicone Rubber
Sheath: Nylon braided and Acrylate coat
Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green UL/CUL Certificate No.: E216252 ​
Application: Used in high temperature conditions like electronic and electric equipment ,
lighting fixturess , industrial machines ,electric heating products and etc..

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Technical Data
Nominal Voltage: 600V

Temperature Range: -60℃~+200℃

Testing Voltage: 6000V

Conductor: Tinned Copper

Insulation: Silicone Rubber

Sheath: Nylon braided and Acrylate coat

Colors: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

UL/CUL Certificate No.: E216252

Application: Used in high temperature conditions like electronic and electric equipment ,

lighting fixturess , industrial machines ,electric heating products and etc..



Specification

Conductor

Insulation

Resistance at 20℃
      Ω/km

AWG

Conductor
Structure
No./ mm

Diameter
mm

Nominal
Thickness
mm

Fiberglass
thickness
 mm

Nominal outer
diameter
mm

Max outer
diameter
mm

26

1/0.40

0.40

1.18

0.15

3.1

3.3

143.0

24

1/0.50

0.50

1.18

0.15

3.2

3.4

92.0

22

1/0.60

0.60

1.18

0.15

3.3

3.5

56.8

20

1/0.80

0.80

1.18

0.15

3.5

3.7

40.1

18

7/0.39

1.17

1.18

0.15

3.8

4.1

23.0

16

7/0.49

1.47

1.18

0.20

4.2

4.6

14.6

14

18/0.39

2.00

1.18

0.20

4.8

5.1

9.9

12

19/0.50

2.50

1.18

0.25

5.4

5.8

5.4

10

35/0.45

3.08

1.18

0.25

5.9

6.4

3.5

8

44/0.50

3.90

1.53

0.40

7.8

8.4

2.190

6

70/0.50

5.50

1.53

0.40

9.4

10.1

1.410

4

110/0.50

6.90

1.53

0.40

10.8

11.6

0.920

2

175/0.50

8.70

1.53

0.40

12.6

13.6

0.590

1

217/0.50

10.00

2.03

0.50

15.1

16.3

0.449

1/0

276/0.50

11.20

2.03

0.50

16.3

17.6

0.355

2/0

342/0.50

12.20

2.03

0.50

17.3

18.6

0.282

3/0

437/0.50

13.80

2.03

0.50

18.9

20.4

0.223

4/0

551/0.50

15.50

2.03

0.50

20.6

22.2

0.177

250Kcmil

1009/0.40

16.80

2.45

0.60

22.9

24.7

0.147

300Kcmil

1216/0.40

18.50

2.45

0.60

24.6

26.6

0.122

350Kcmil

1406/0.40

20.00

2.45

0.60

26.1

28.2

0.105

400Kcmil

1615/0.40

21.50

2.45

0.60

27.6

29.8

0.091

450Kcmil

1813/0.40

22.60

2.45

0.70

28.9

31.2

0.081

500Kcmil

2010/0.40

23.90

2.45

0.70

30.2

32.6

0.073

550Kcmil

2220/0.40

25.00

2.80

0.70

32.0

34.6

0.067

600Kcmil

2420/0.40

26.20

2.80

0.70

33.2

35.9

0.061

650Kcmil

1675/0.50

27.30

2.80

0.70

34.3

37.0

0.056

700Kcmil

1808/0.50

28.20

2.80

0.70

35.2

38.0

0.052

750Kcmil

1935/0.50

29.30

2.80

0.70

36.3

39.2

0.049


Application Area

home appliance

Packaging & Shipping

package

Manufacturing Shop

Manufacturing Shop


Certifications

We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949,CE.

certifications
