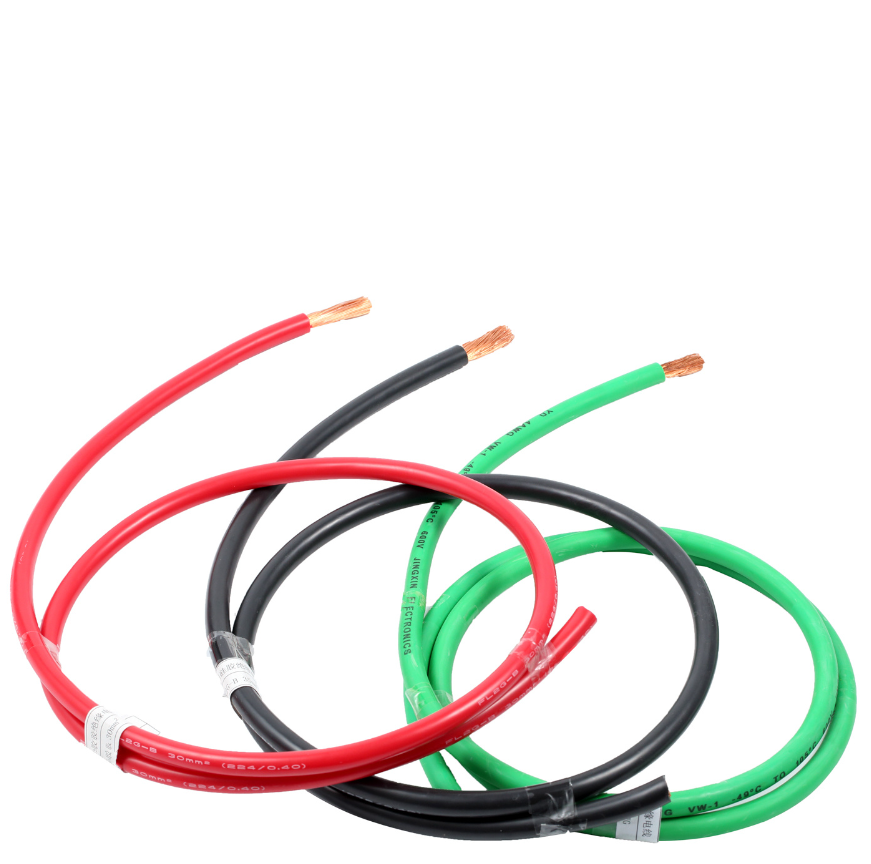

Technical Data
Nominal Voltage: 60V
Temperature Range:
105℃ FL(R/U)Y/FL(R/U)9Y
125℃ FL(R/U)11Y/FL(R/U)2X
150℃ FL(R/U)31Y/FL(R/U)91X
180℃ FL(R/U)7Y
200℃ FL(R/U)6Y/FL(R/U)51Y/FL2G
Conductor: Bare Copper
Insulation:
FL(R/U)Y - PVC; FL(R/U)6Y - FEP; FL(R/U)7Y - ETFE;
FL(R/U)9Y - PP; FL(R/U)11Y - TPE-U; FL(R/U)31Y - TPE-S;
FL(R/U)2X - XLPO-125; FL(R/U)91X - XLPO-150;
FL(R/U)51Y - PFA; FL2G - SIR;
Standard: ISO6722-1/GMW15626
Application: For internal wiring of automotive metres' curcuits and electrical in electrical equipment in high-temperature area.
Specification
Conductor | Insulation | Max. Resistance at 20℃ Ω/km | |||||||||
Nominal Cross Section mm² | Structure A | Structure B | Structure C | Conductor Diameter | Thin-Wall | Thick-Wall | Ultra-Thin Wall | ||||
Nominal Thickness | Outer Diameter | Nominal Thickness | Outer Diameter | Nominal Thickness | Outer Diameter | ||||||
0.13 | / | / | / | / | / | / | / | / | 0.2 | 0.95 | 136 |
0.22 | / | / | / | / | / | / | / | / | 0.2 | 1.05 | 84.8 |
0.35 | 7/0.26 | 12/0.2 | 19/0.16 | 0.9 | 0.25 | 1.4 | / | / | 0.2 | 1.2 | 54.4 |
0.5 | 19/0.19 | 16/0.20 | 37/0.14 | 1.1 | 0.28 | 1.6 | 0.6 | 2.3 | 0.2 | 1.4 | 37.1 |
0.75 | 19/0.24 | 24/0.20 | 38/0.16 | 1.3 | 0.3 | 1.9 | 0.6 | 2.5 | 0.2 | 1.6 | 24.7 |
1 | 19/0.26 | 32/0.20 | 54/0.16 | 1.5 | 0.3 | 2.1 | 0.6 | 2.7 | 0.2 | 1.75 | 18.5 |
1.5 | 19/0.33 | 30/0.26 | 76/0.16 | 1.8 | 0.3 | 2.4 | 0.6 | 3.0 | 0.2 | 2.1 | 12.7 |
2 | 19/0.38 | 28/0.30 | 105/0.16 | 2 | 0.35 | 2.8 | 0.6 | 3.3 | 0.25 | 2.4 | 9.42 |
2.5 | 37/0.28 | 50/0.26 | 140/0.16 | 2.2 | 0.35 | 3 | 0.7 | 3.6 | 0.25 | 2.7 | 7.6 |
3 | 37/0.34 | 44/0.30 | 160/0.16 | 2.4 | 0.4 | 3.4 | 0.7 | 4.1 | / | / | 6.15 |
4 | 37/0.38 | 56/0.30 | 224/0.16 | 2.8 | 0.4 | 3.7 | 0.8 | 4.4 | / | / | 4.71 |
5 | 37/0.43 | 65/0.33 | 250/0.16 | 3.1 | 0.4 | 4.2 | 0.8 | 4.9 | / | / | 3.94 |
6 | 37/0.45 | 84/0.30 | 320/0.16 | 3.4 | 0.4 | 4.3 | 0.8 | 5 | / | / | 3.14 |
8 | 98/0.33 | 62/0.40 | 240/0.20 | 4.3 | 0.4 | 5 | 0.8 | 5.9 | / | / | 2.38 |
10 | 63/0.46 | 80/0.40 | 320/0.20 | 4.5 | 0.6 | 6 | 1 | 6.5 | / | / | 1.82 |
12 | 154/0.33 | 96/0.40 | 380/0.20 | 5.4 | 0.6 | 6.5 | 1 | 7.4 | / | / | 1.52 |
16 | 105/0.46 | 126/0.40 | 512/0.20 | 6.3 | 0.65 | 7.2 | 1 | 8.3 | / | / | 1.16 |
20 | 247/0.33 | 152/0.40 | 610/0.20 | 6.9 | 0.65 | 7.8 | 1.1 | 9.1 | / | / | 0.955 |
25 | 154/0.46 | 196/0.40 | 790/0.20 | 7.8 | 0.65 | 8.7 | 1.3 | 10.4 | / | / | 0.743 |
30 | 361/0.33 | 224/0.40 | 900/0.20 | 8.3 | 0.8 | 9.6 | 1.3 | 40.9 | / | / | 0.647 |
35 | 551/0.30 | 276/0.40 | 1070/0.20 | 9 | 0.8 | 10.4 | 1.3 | 11.6 | / | / | 0.527 |
40 | 494/0.33 | 308/0.40 | 1200/0.20 | 9.6 | 0.9 | 11.1 | 1.4 | 12.4 | / | / | 0.473 |
50 | 798/0.30 | 396/0.40 | 1600/0.20 | 10.5 | 0.9 | 12.2 | 1.5 | 13.5 | / | / | 0.368 |
60 | 741/0.33 | 396/0.50 | 1200/0.26 | 11.6 | 1 | 13.3 | 1.5 | 14.6 | / | / | 0.315 |
70 | 1140/0.30 | 360/0.50 | 1427/0.26 | 12.5 | 1 | 14.4 | 1.5 | 15.5 | / | / | 0.259 |
95 | 836/0.40 | 475/0.50 | 1936/0.26 | 14.8 | 1.1 | 16.7 | 1.6 | 18 | / | / | 0.196 |
120 | 1064/0.40 | 608/0.50 | 2450/0.26 | 16.5 | / | / | 1.6 | 19.7 | / | / | 0.153 |
Application Area
Packaging & Shipping
Manufacturing Shop
Certifications
We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949，CE.
